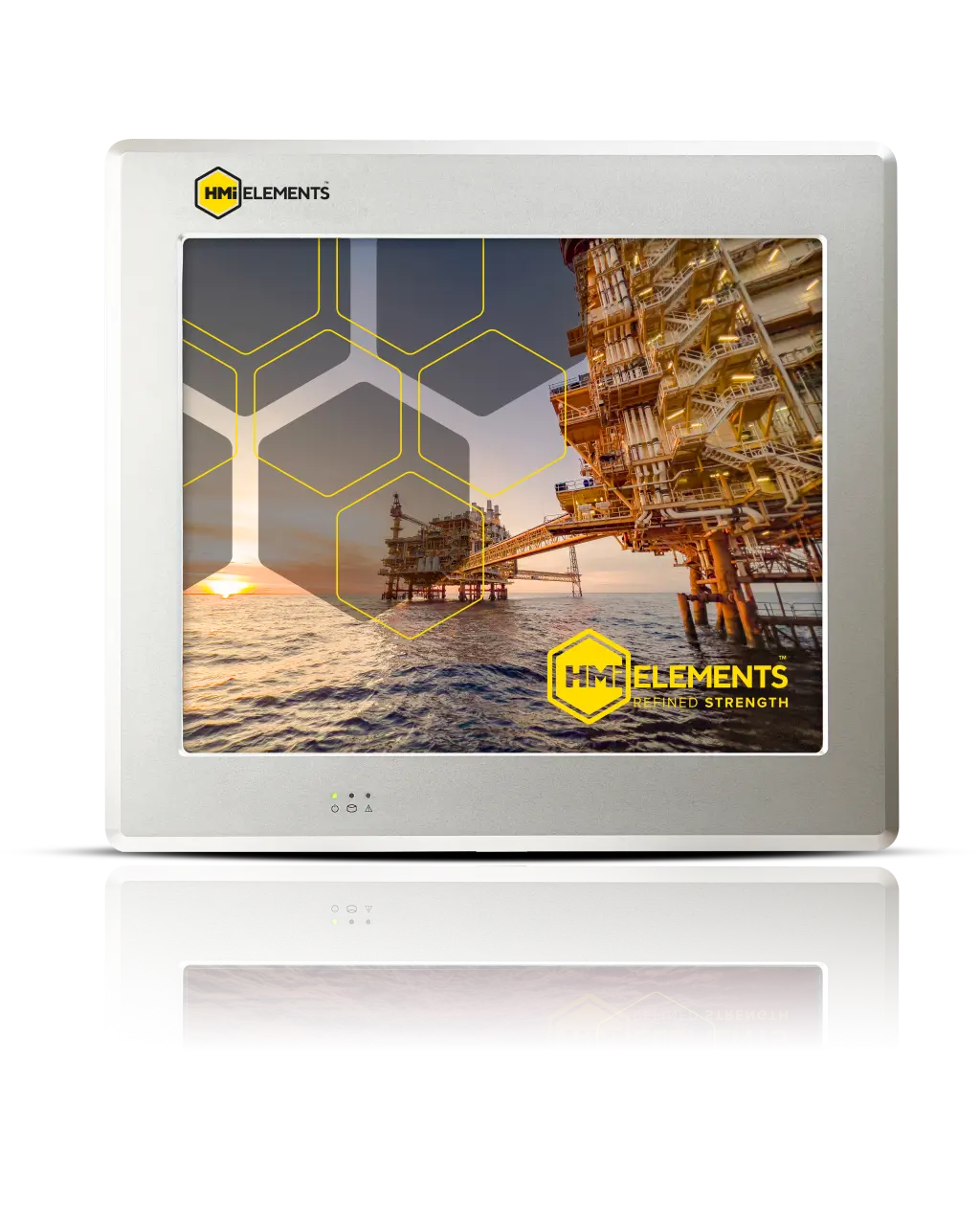

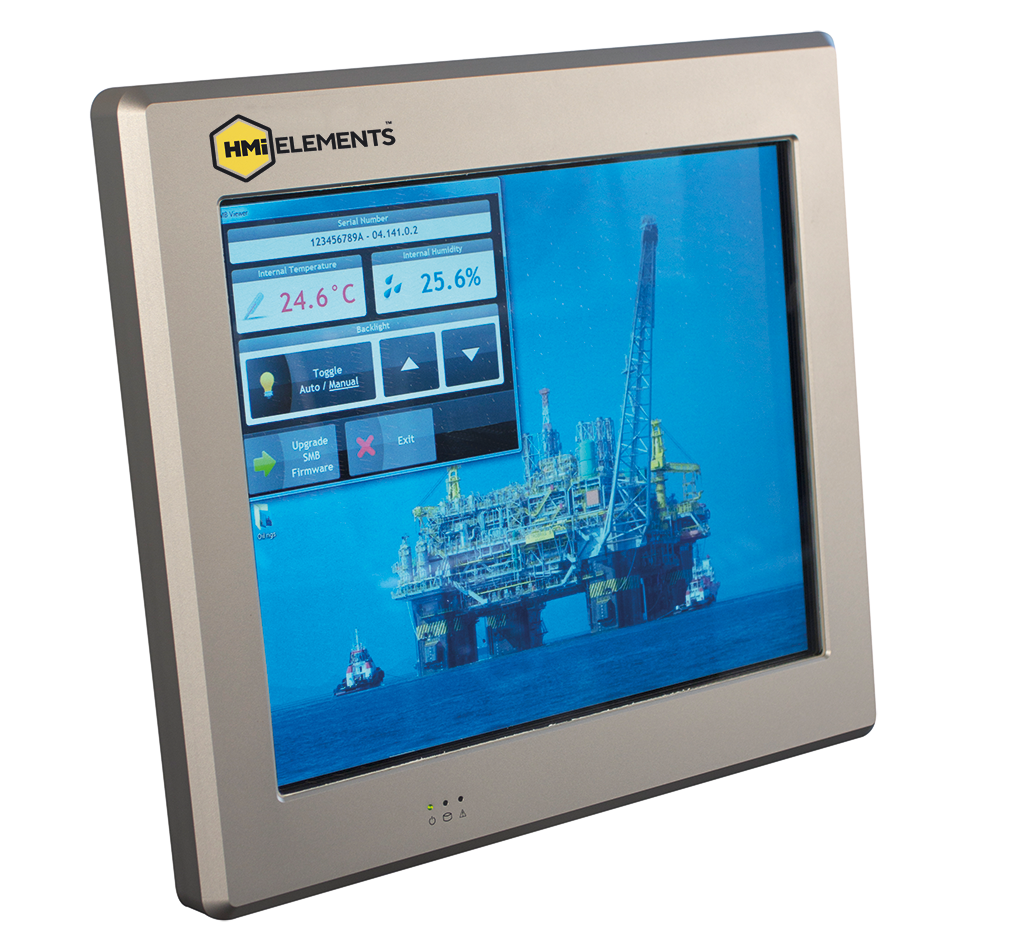

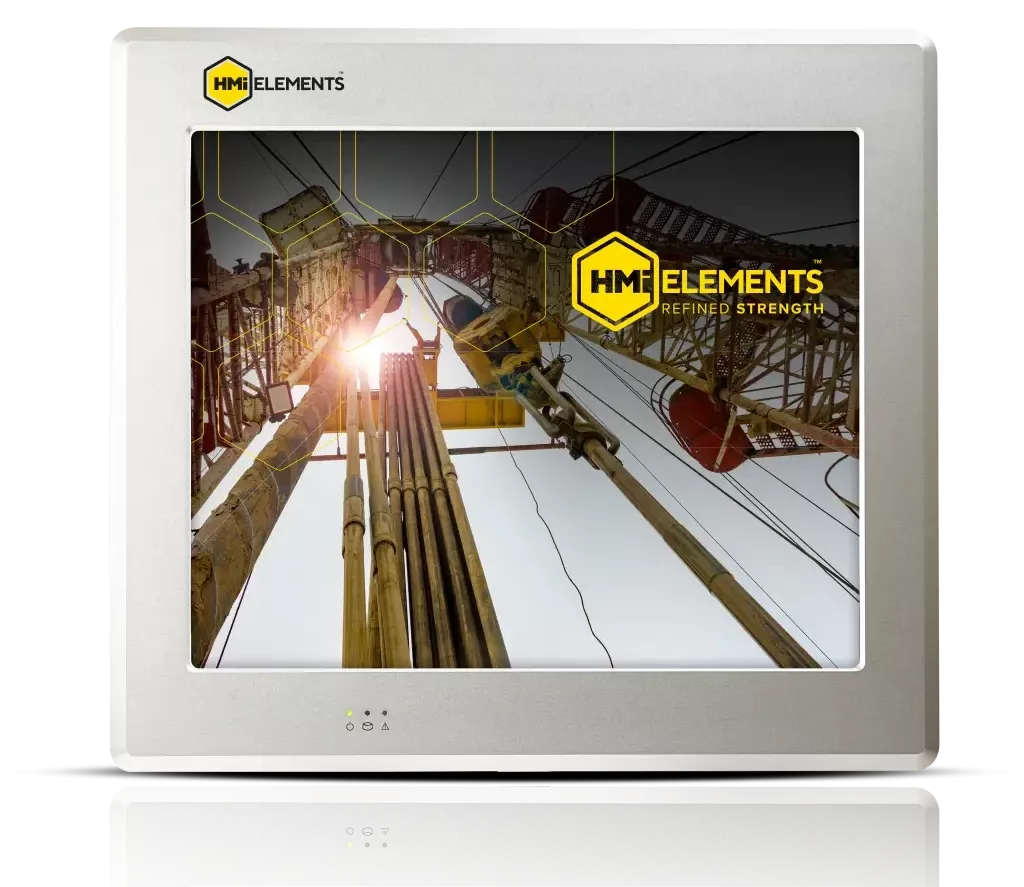

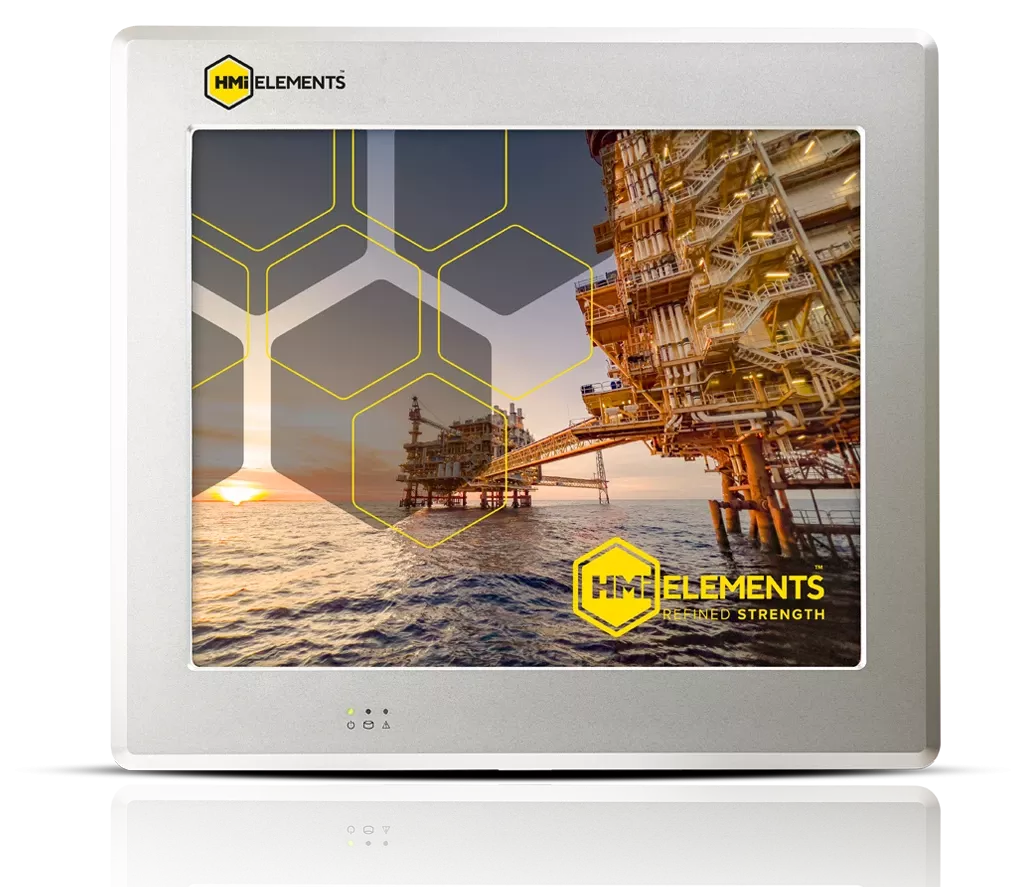

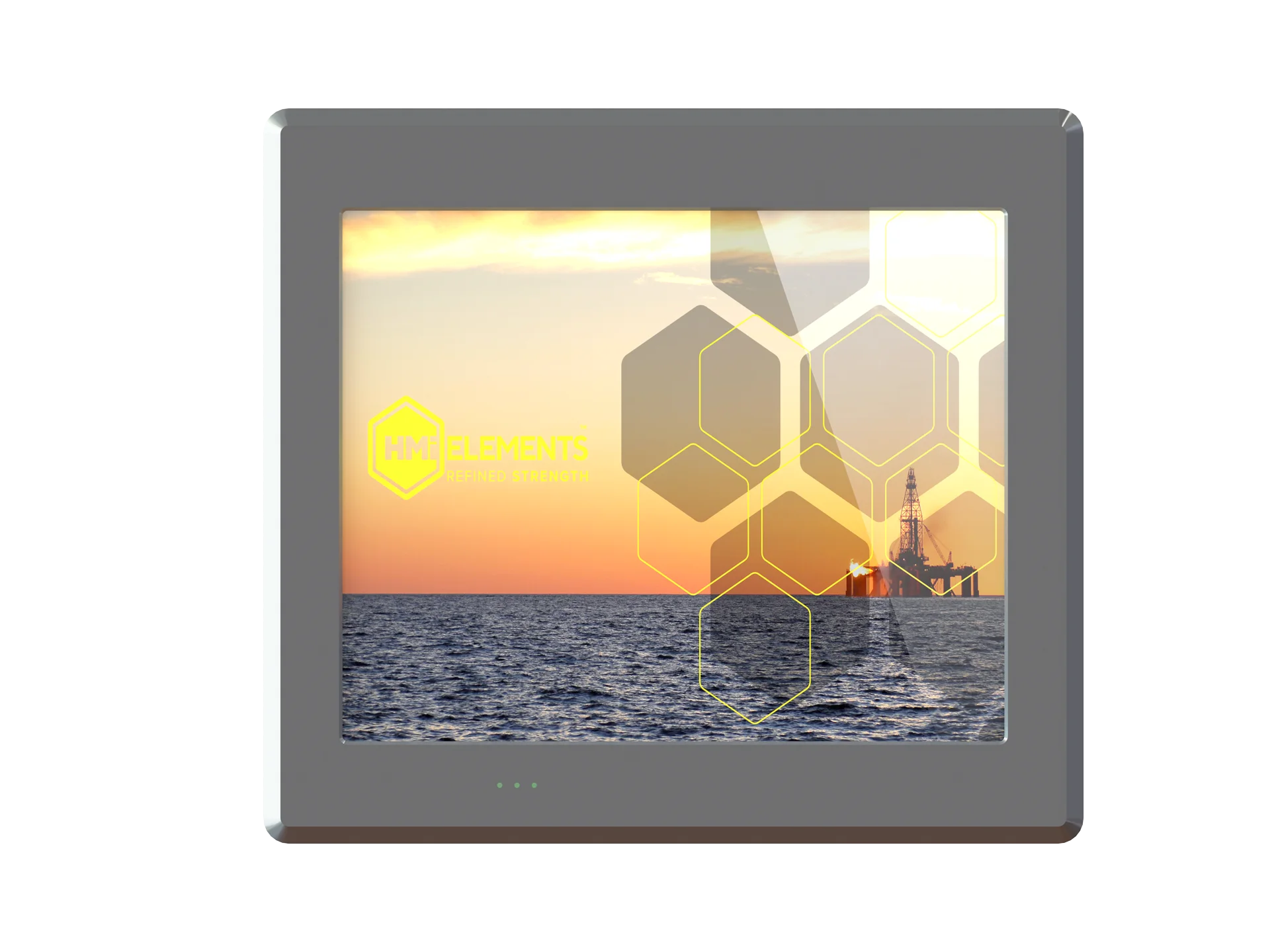

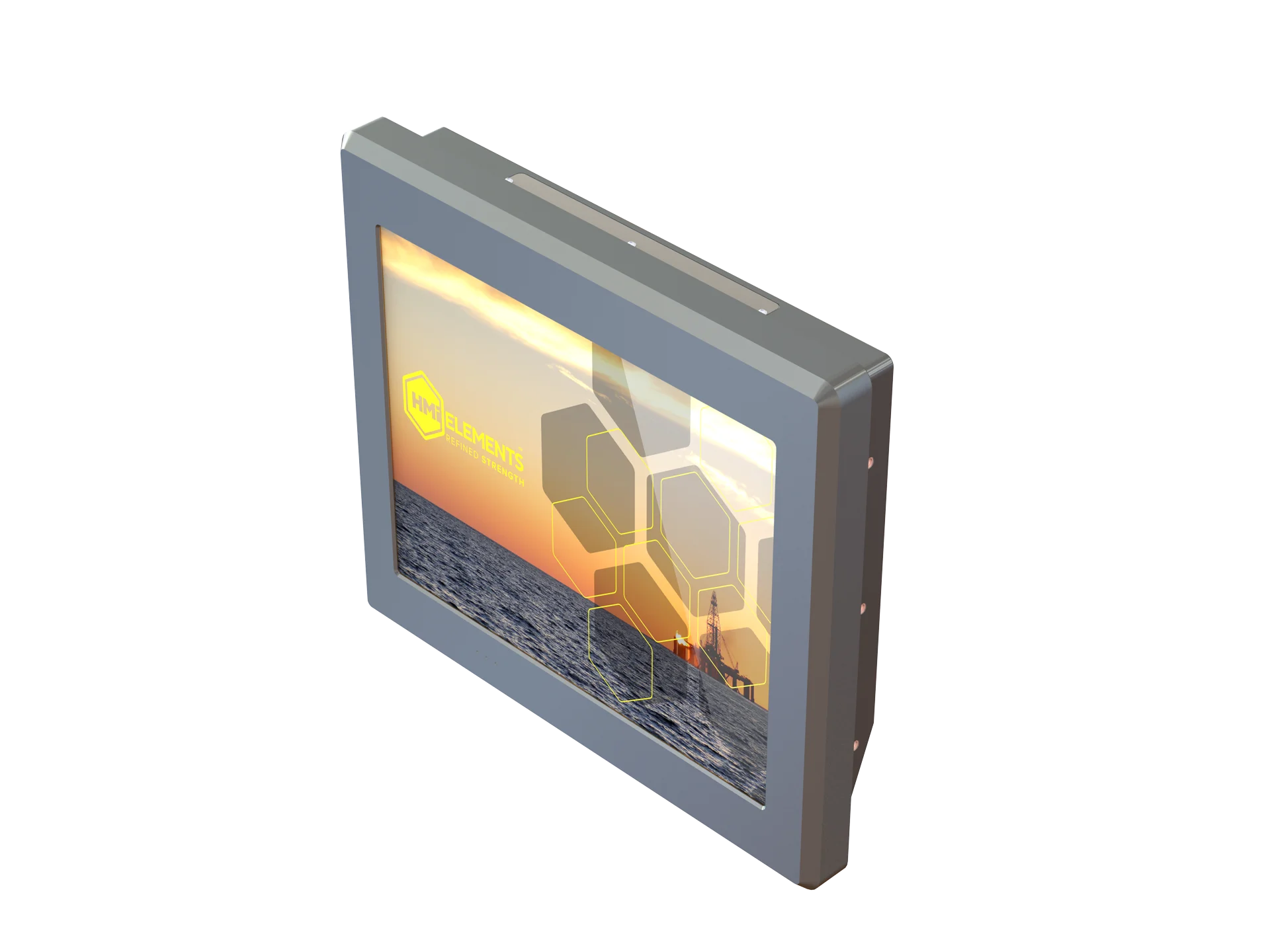

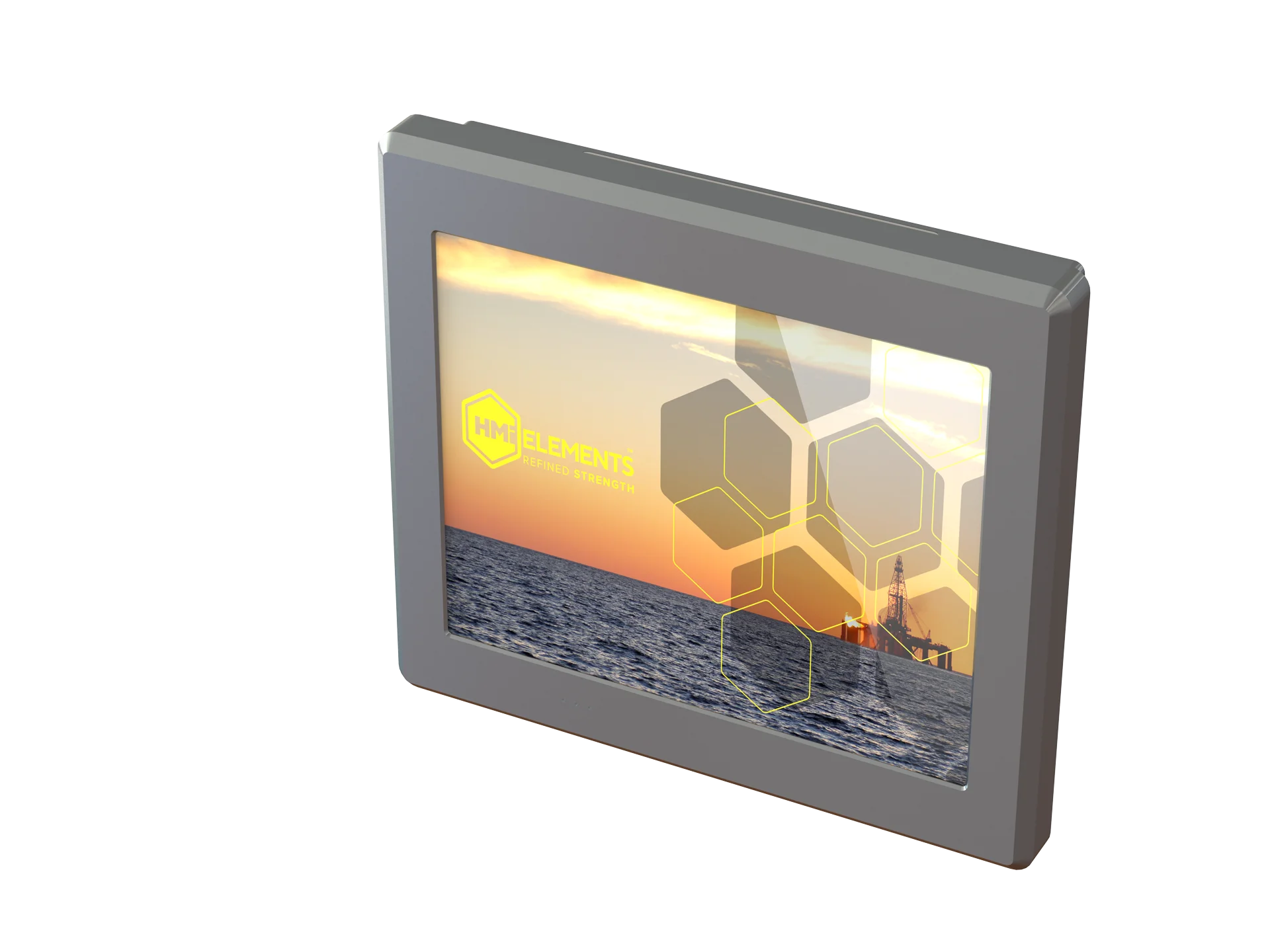

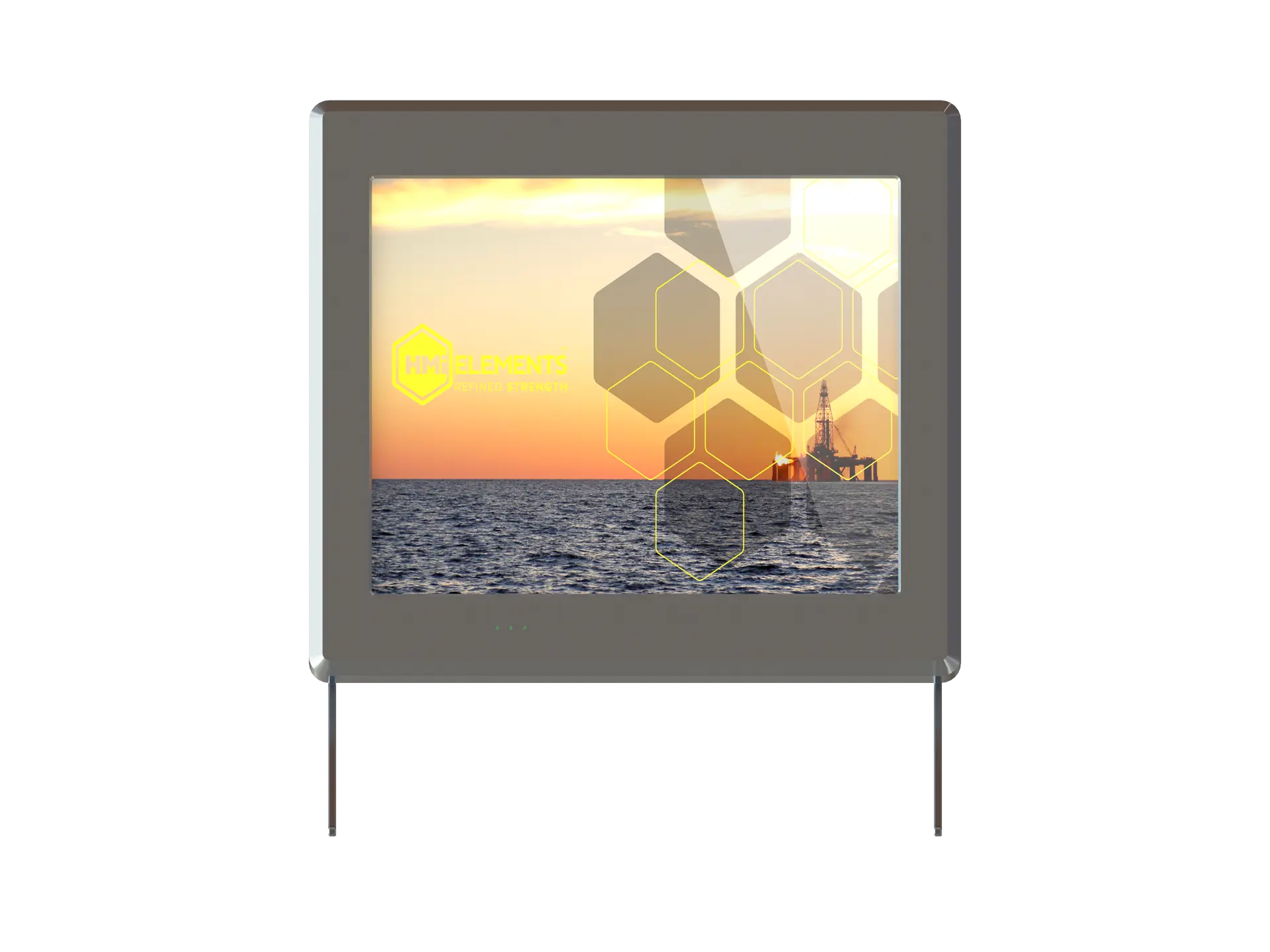

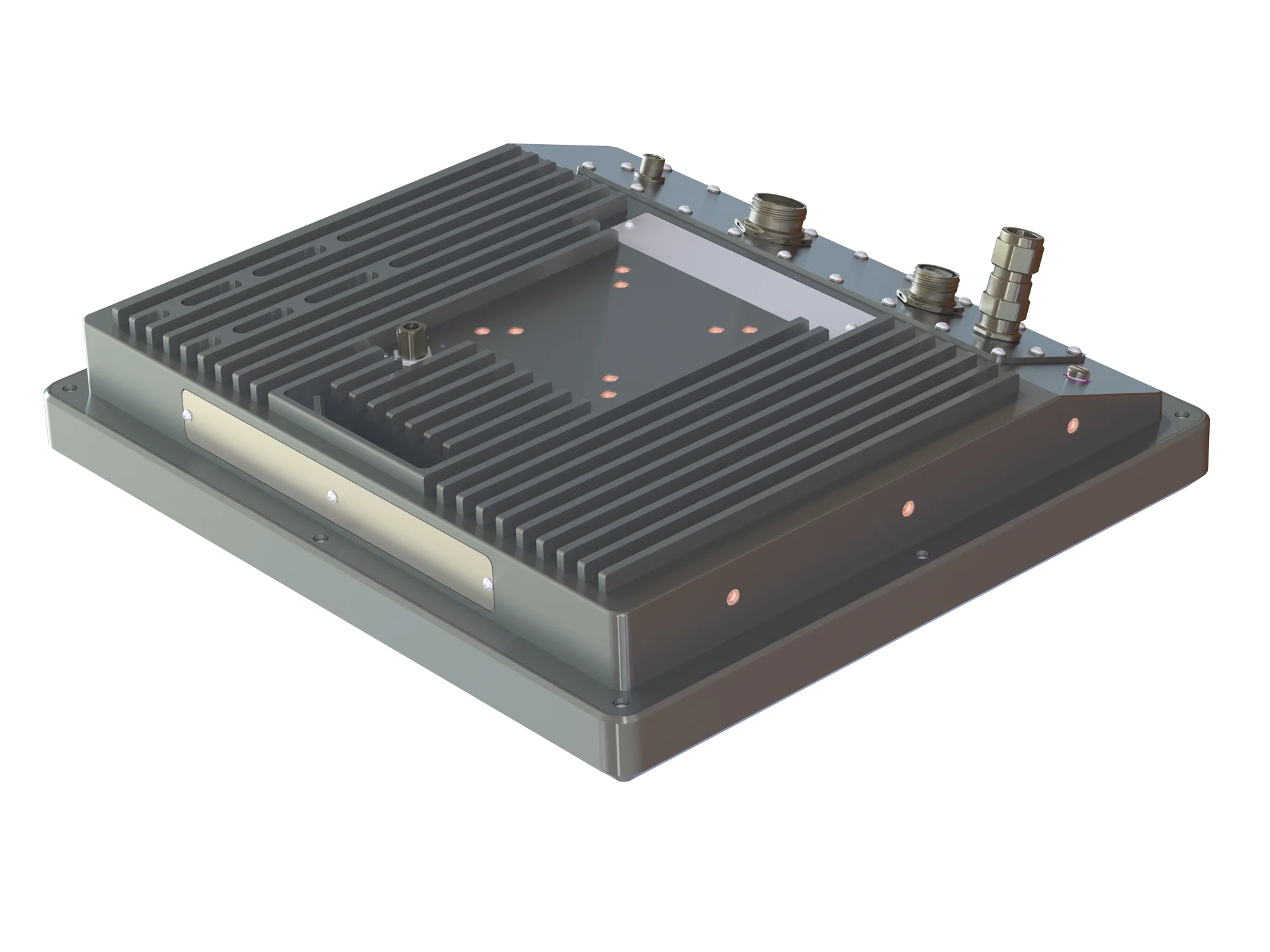

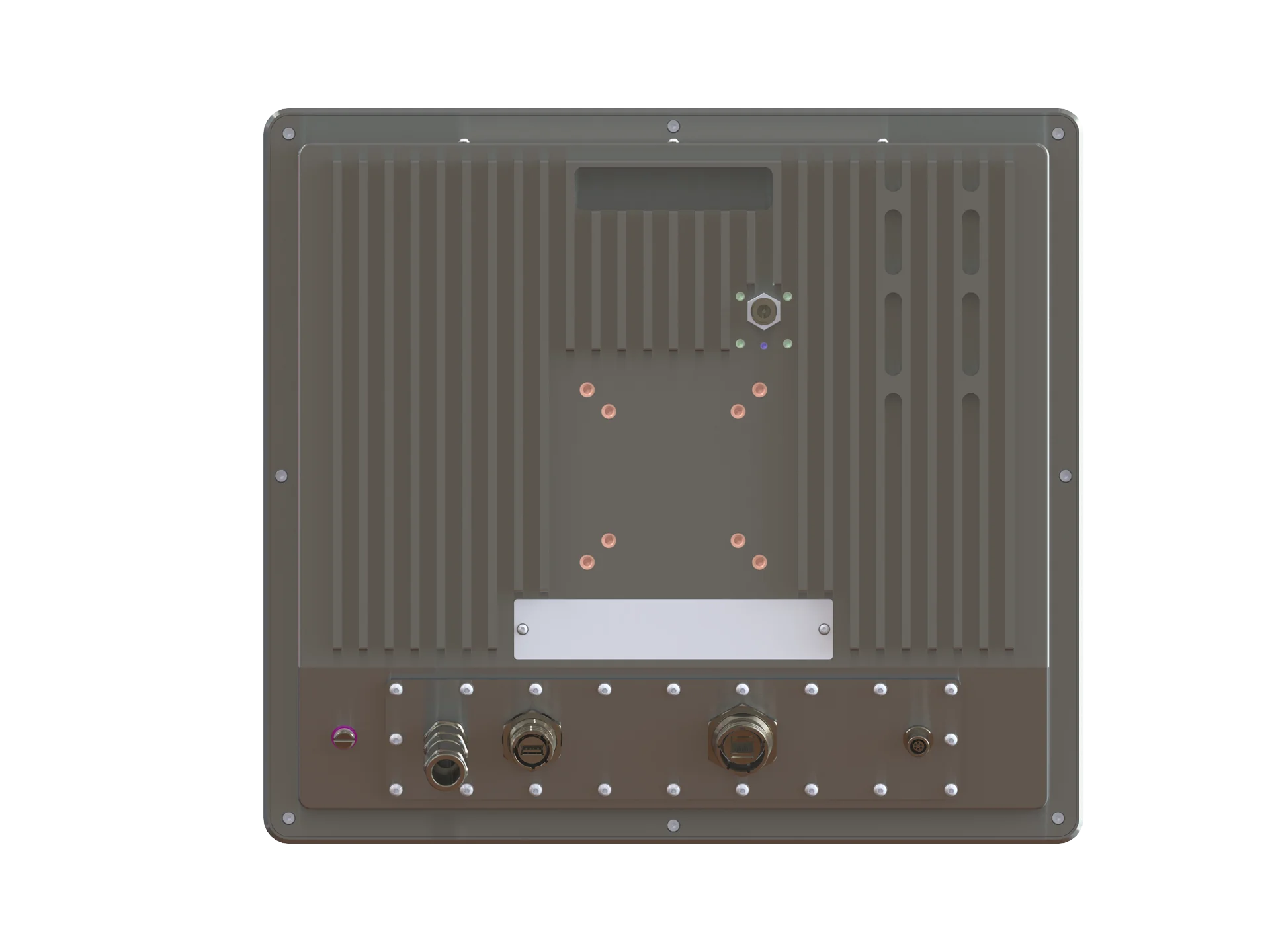

Lightweight Safe Area Rugged PC
The latest addition to HMI Elements’s range of HMIs is a slim and lightweight rugged PC, with a super high-bright 19”, 1600 NIT multi-touch glove-friendly touchscreen.
Specifications:
- Powder coated enclosure.

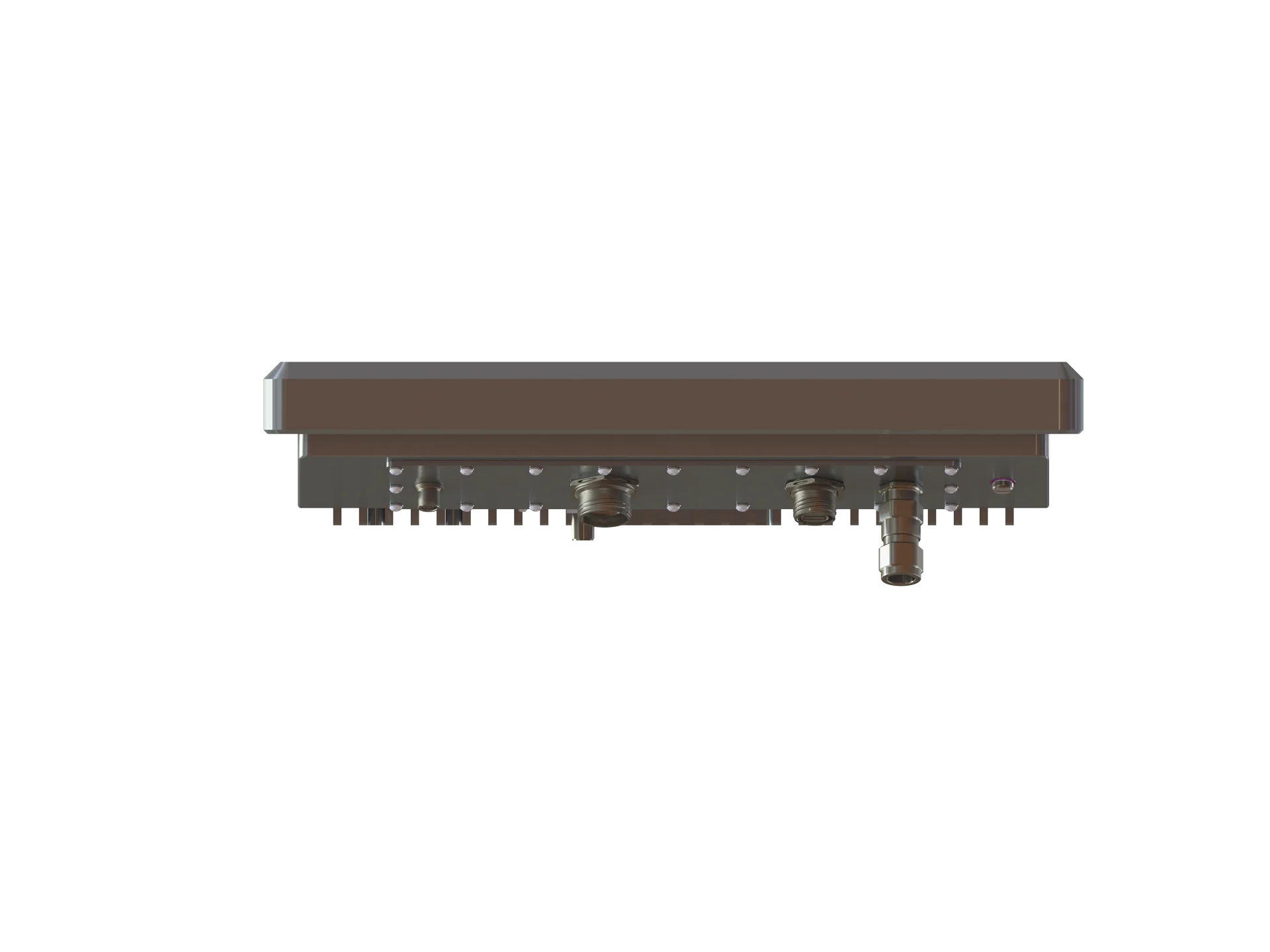

- DC Power - Terminated with Armoured M20 Peppers Gland
- x2 USB Ports mounted on the Connector Plate
- Ethernet 10/100/1000 Mbit/s
- Windows 11, Windows 10 Enterprise LTSB & LTSC, Windows 7 Professional Operating system
- 12 Months Warranty
Standard Features:
- Glove-friendly Projective Capacitive Touchscreen (PCT) with multi-touch
- 19" 1600 NIT display
- Wide -40°C to +60°C (-40°F to +140°F) operating temperature range as standard

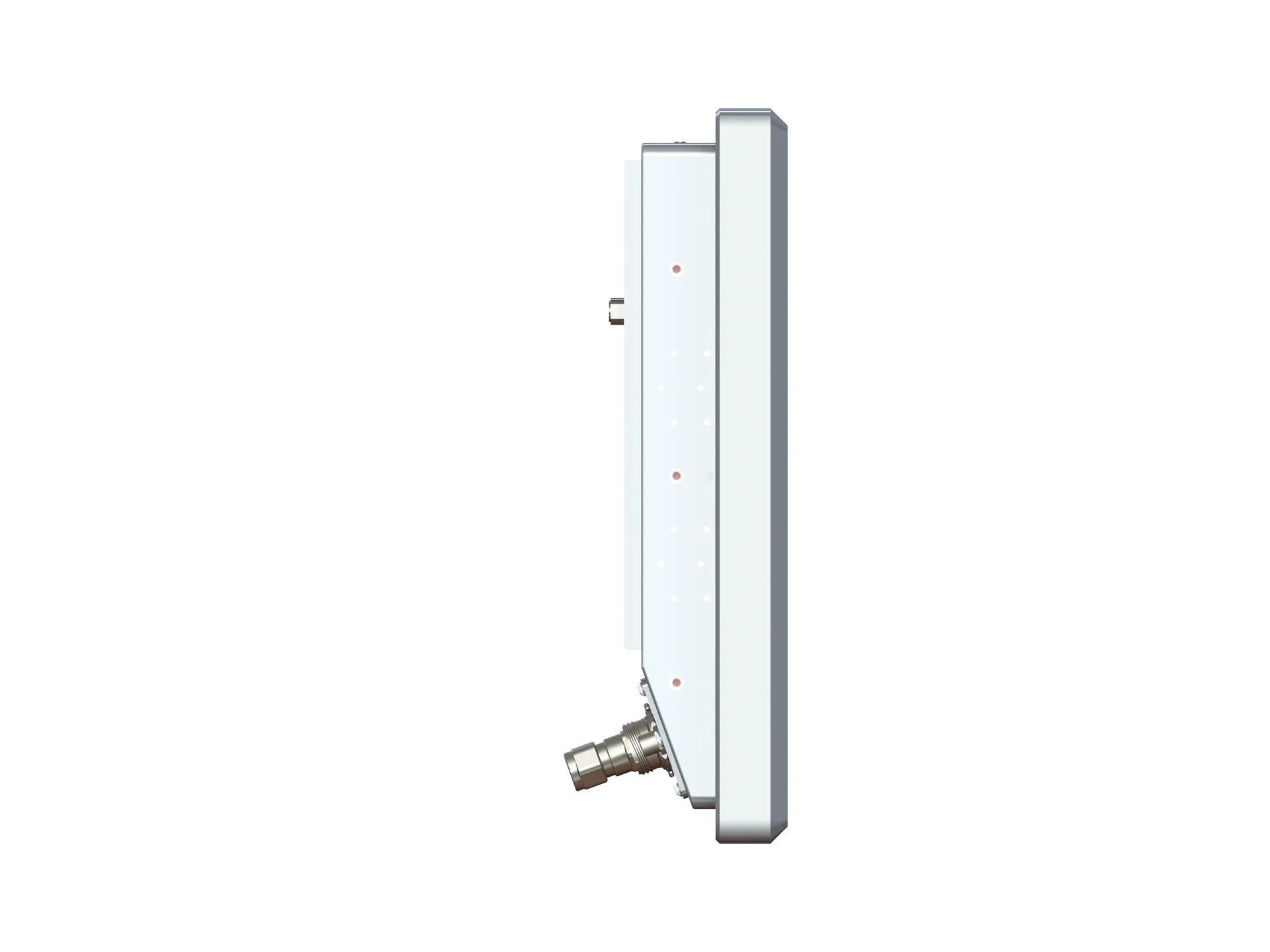

- Thin: 3.5" profile. Lightweight: 26.9lbs
- Choice of operating voltages AC, auto ranging between 100-240Vac (50 to 60 Hz) and DC, nominal +24V (18 to 35V range)
- Remote telemetry
- Built-in diagnostics
- Clean screen mode
- Ingress protected to IP66/NEMA 4X
- Shock in accordance with BS EN60068-2-27:2009
- Vibration in accordance with BS EN60068-2-6:2008
| 1302-Sa : | ATOM | i7 |
|---|---|---|
| Product Type | PC Workstation | |
| Model No | HMI Elements1302Sa | |
| Display Size | 19" | |
| Display Type | Sunlight Viewable Glove-Friendly up to 1500 nit Capacitive LCD Touchscreen | |
| Resolution | SXGA; 1280 x 1024, wide viewing angle, 24 bit colour | |
| Processor Options | Dual Core Atom 1.86GHz | Core i7-3517UE, 1.7GHz (TPM Compliant) |
| Operating System | Windows 11, Windows 10 Enterprise LTSB & LTSC, Windows 7 Professional | |
| HDD/SSD Options | 64GB SSD (standard) + second 64GB SSD (optional) | 64GB SSD (standard) also available 128GB or 256GB SSD + second drive 64, 128, 256GB SSD (optional) |
| RAM | 4GB | 8GB + option to upgrade to 16GB |
| Comm Options | 2 Copper Ethernet port is triple speed (10/100/1000 Mbits/s), Fibre Optic Ethernet, Wi-Fi (802.11 b/g/n) | |
| Keyboard / Mouse / Touchscreen | PS/2 Interface | |
| USB | 2 x USB ports | |
| Serial Communications | One RS232 and one RS422/RS485 | |
| Ingress Protection | IP66 / NEMA4 and NEMA 4X | |
| Operating Temperature | -40°C to +60°C | |
| Operating Voltages | AC, auto ranging between 100-240Vac (50 to 60 Hz) DC, nominal +24V (18 to 35V range) | |
| Storage Temp | -40°C to +85°C (-40°F to +185°F) | |
| Weight | 26.9Ibs / 12.2kg | |
| Max Dimensions | 18.74" x 16.81" x 3.54" / 476mm x 427mm x 90mm | |

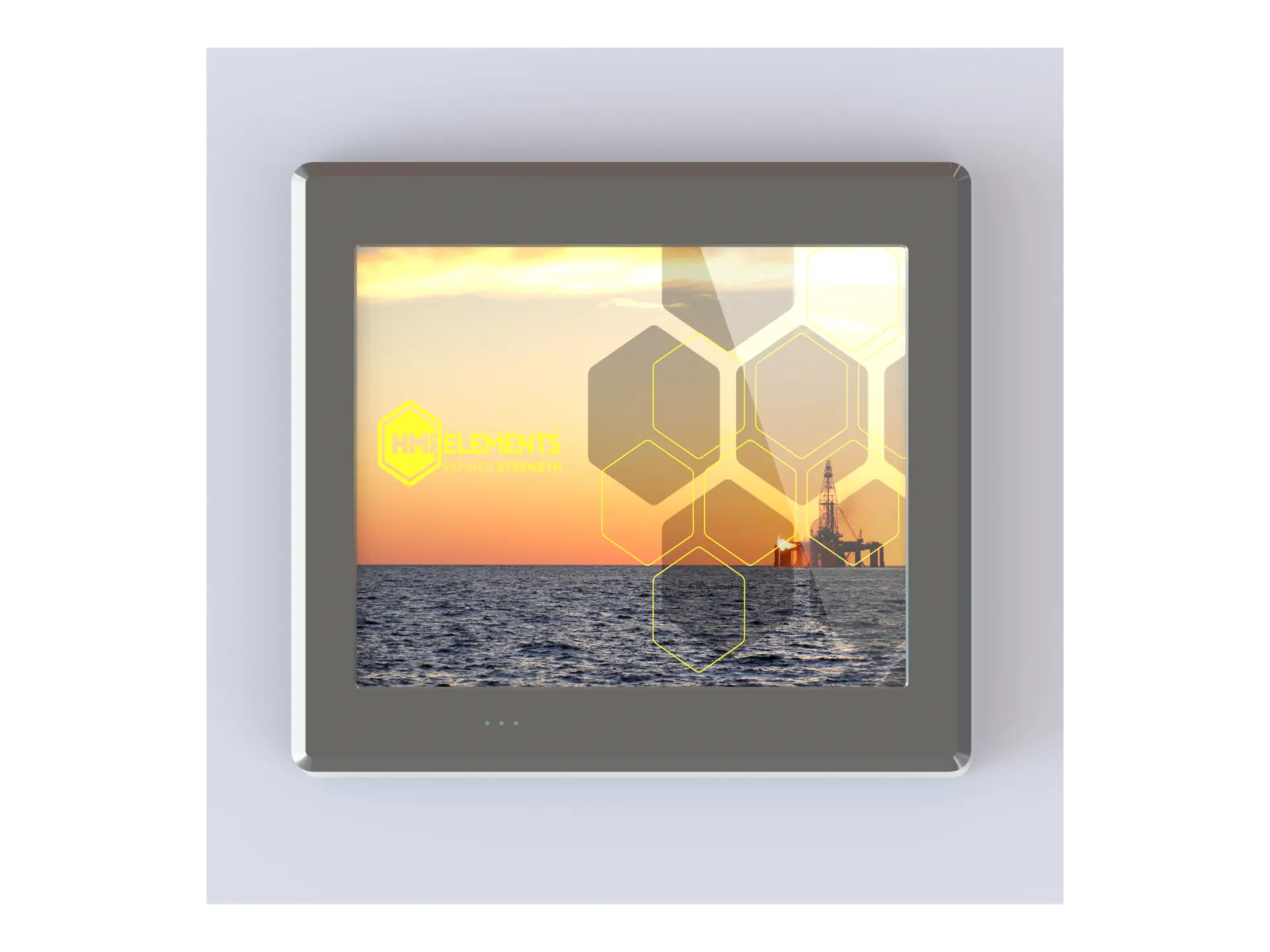

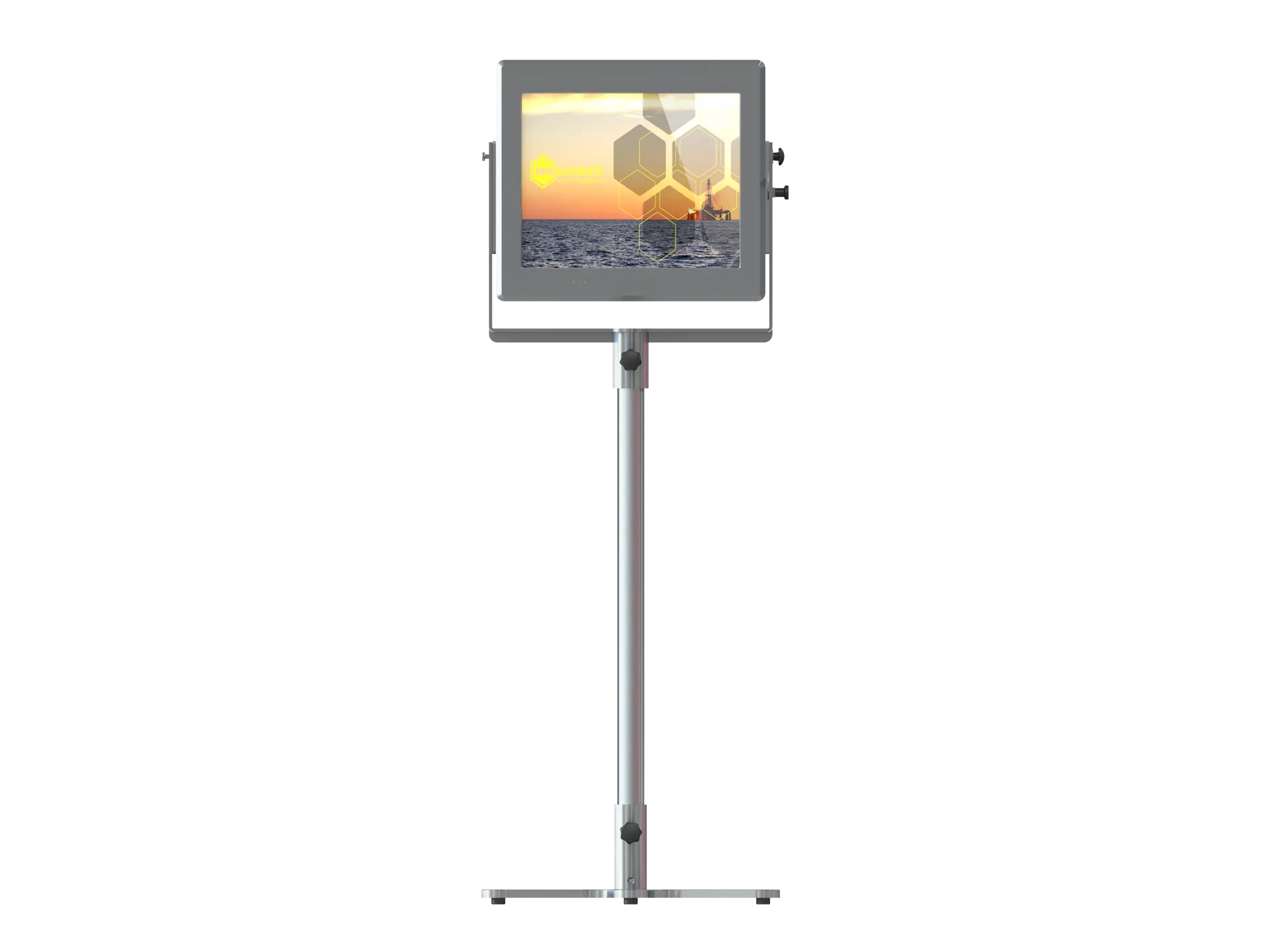

| Mounting Options | VESA, Yoke, Panel | |
| Shock & Vibration | Shock: In accordance with BS EN60068-2-27:2009 Vibration: In accordance with BS. EN60068-2-6:2008 | |
| Approvals | CE, cCSAus, CSA Certificate Number 70027365, CAN/CSA-C22.2 No. 61010-1-12, ANSI/UL Standard 61010-1 | |
This is a typical Specification; if you have other requirements please Contact Us
