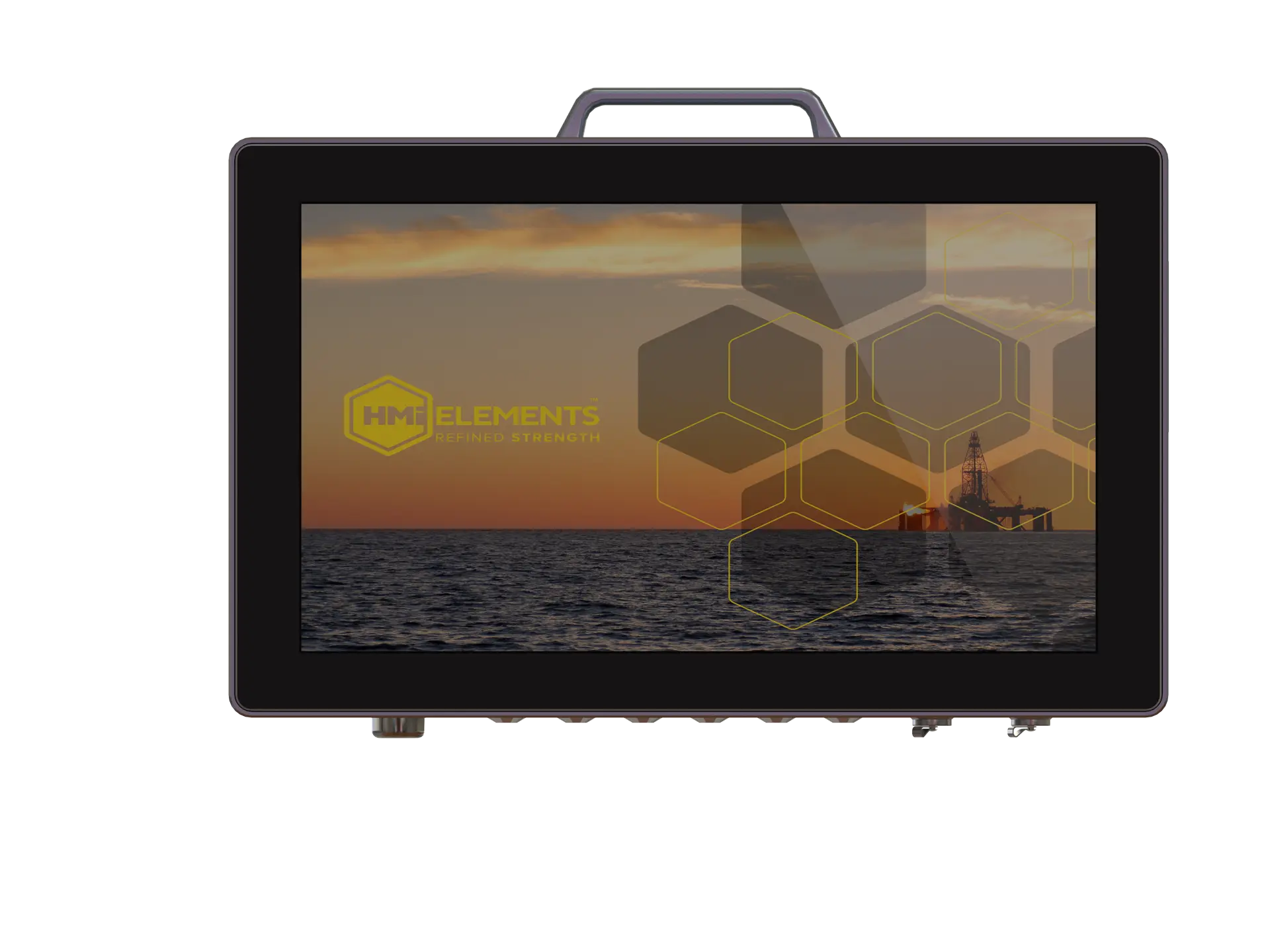

1402-Z2

Lightweight Zone 2 PC approved to ATEX, UKEX, IECEX, NEC 505(AEX) and ordinary location standards

With easy-to-use features, touchscreen controls and a super-bright, 1000 or 400 Nit glove friendly, multi-touch 15.6” sunlight viewable widescreen. Lightweight, rugged, IP66 and field maintainable. The 1402-Z2 with both Class 1 Zone 2 and Class II Zone 22 gas and dust credentials make it a go-to choice for many applications.

  • 15.6" 1920 x 1080 PCT glove friendly, multi touch, wide screen
  • -40°C to +60°C (-40°F to +140°F) operating temperature range
  • Lightweight: 19.8lb/9kg
  • VESA, yoke and panel mount options
  • SSD 64Gb to 1Tb
  • Ethernet 10/100/1000 Mbit/s, Wi-Fi & Bluetooth
  • Ingress protected to IP66/NEMA 4X
  • Windows 11 IoT Enterprise, Windows 10 IoT Enterprise LTSC
  • Field maintainable

FULLY CERTIFIED

Certified to ATEX, IECEx,
NEC505 (AEx)
CEC 22.2 Section 18
Ordinary Location

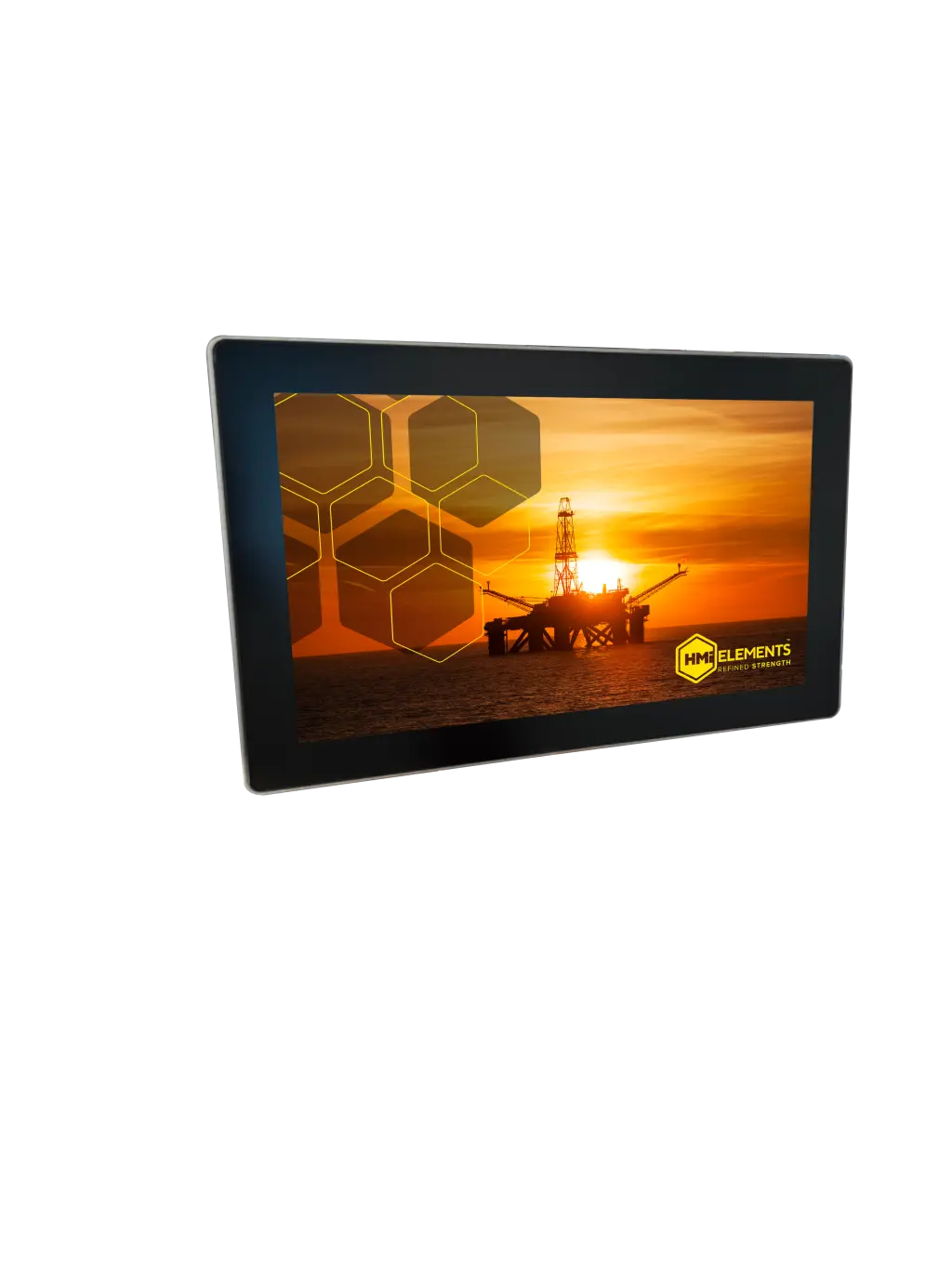

CRISP & BRIGHT DISPLAY

A high-bright 1000 Nits display, viewable in direct sunlight.

PRECISION ENGINEERED

A hybrid enclosure construction elegantly combining machined stock and alu plate resulting in a strong but lightweight product.

SUPER FAST PROCESSOR

Intel 11th Gen Tiger Lake Core i7-1185GRE

LIGHT & SLIM

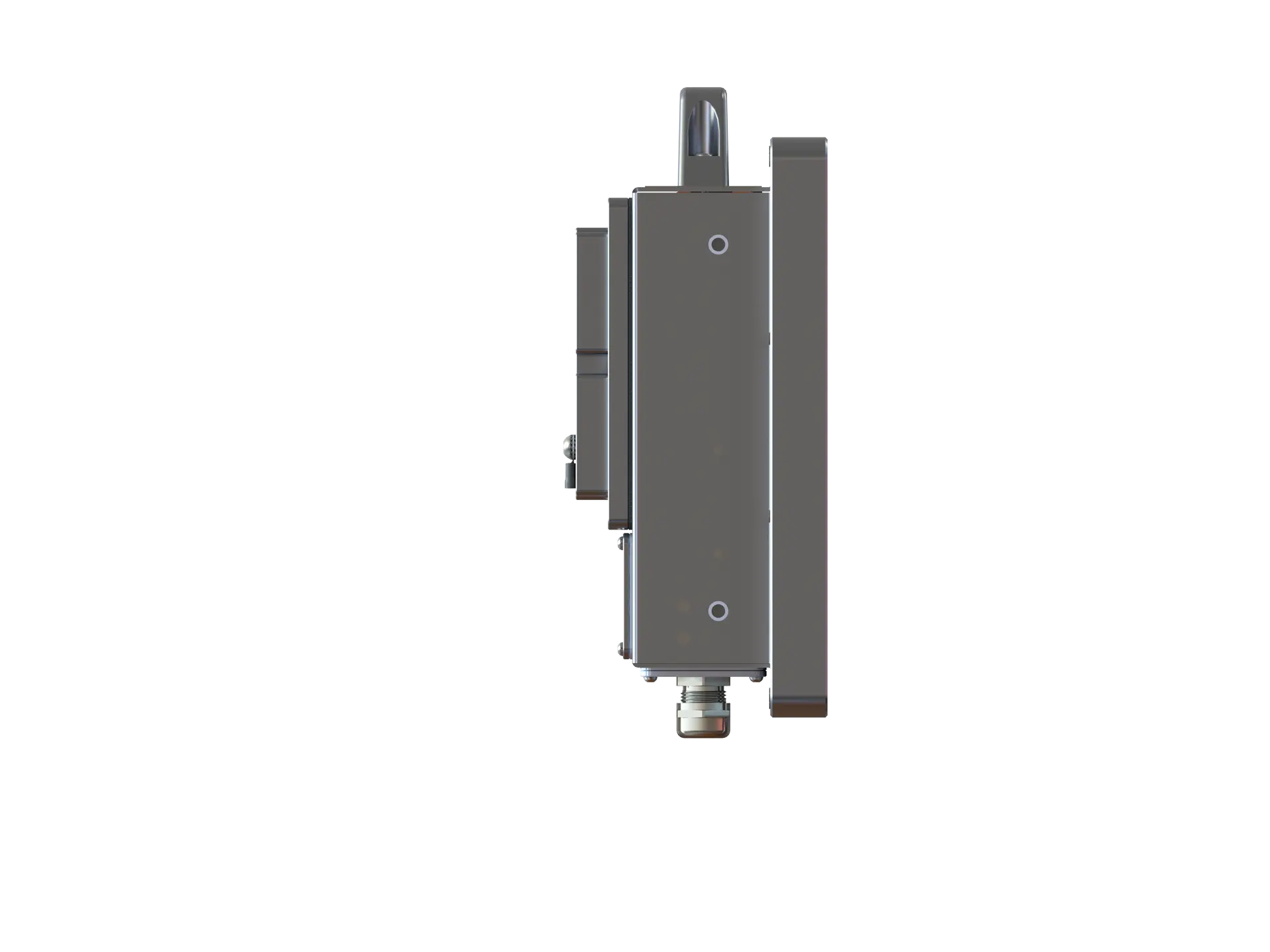

Weighing in at just 9kg / 19.8lbs the 1402-Z2 is just 101mm / 3.98" thin

Product Specification

Here's the HTML table with the left-hand column in uppercase:

1402-Z2 :
PRODUCT TYPE PC Workstation
MODEL NO 1402-Z2
TYPICAL EX CODE Zone 2 hazardous area for gas and dust.
ATEX, UKEX, IECEx, NEC 505 (AEx), CSA 22.1 Canadian Electrical Code (CEC) Section 18.
II3 G D, Ex ec ic IIC T4 Gc, Ex tc IIIC T135’C Dc
POWER SUPPLY AC universal 100-240ac
TOUCHSCREEN Projective Capacitive Technology (PCT) – Multi Touch, Glove friendly
DISPLAY SIZE 15.6” Wide Screen
BRIGHTNESS 1000nit or 400nit options
RESOLUTION FHD AAS; 1920 x 1080, wide viewing angle, 24bit (16.2M) colours.
PROCESSOR OPTIONS Intel 11th Gen Tiger Lake Core i7-1185GRE
OPERATING SYSTEM Windows 11 IoT Ent, Windows 10 IoT Enterprise LTSC

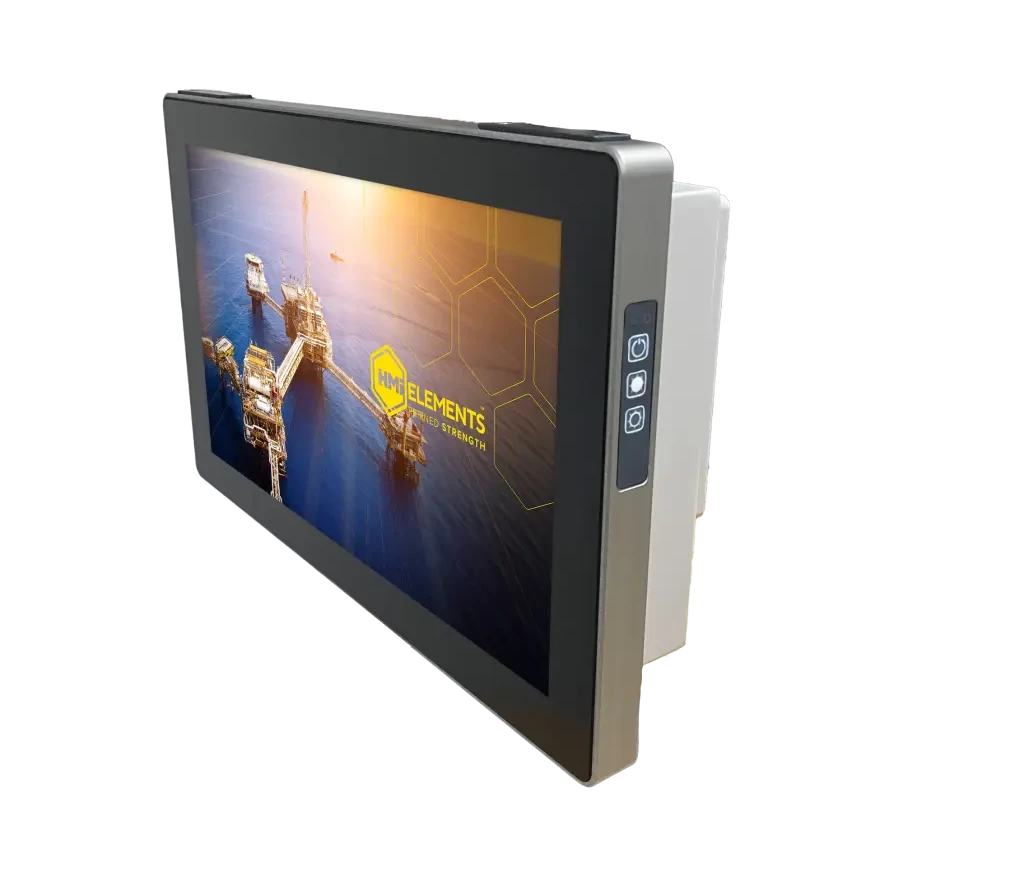

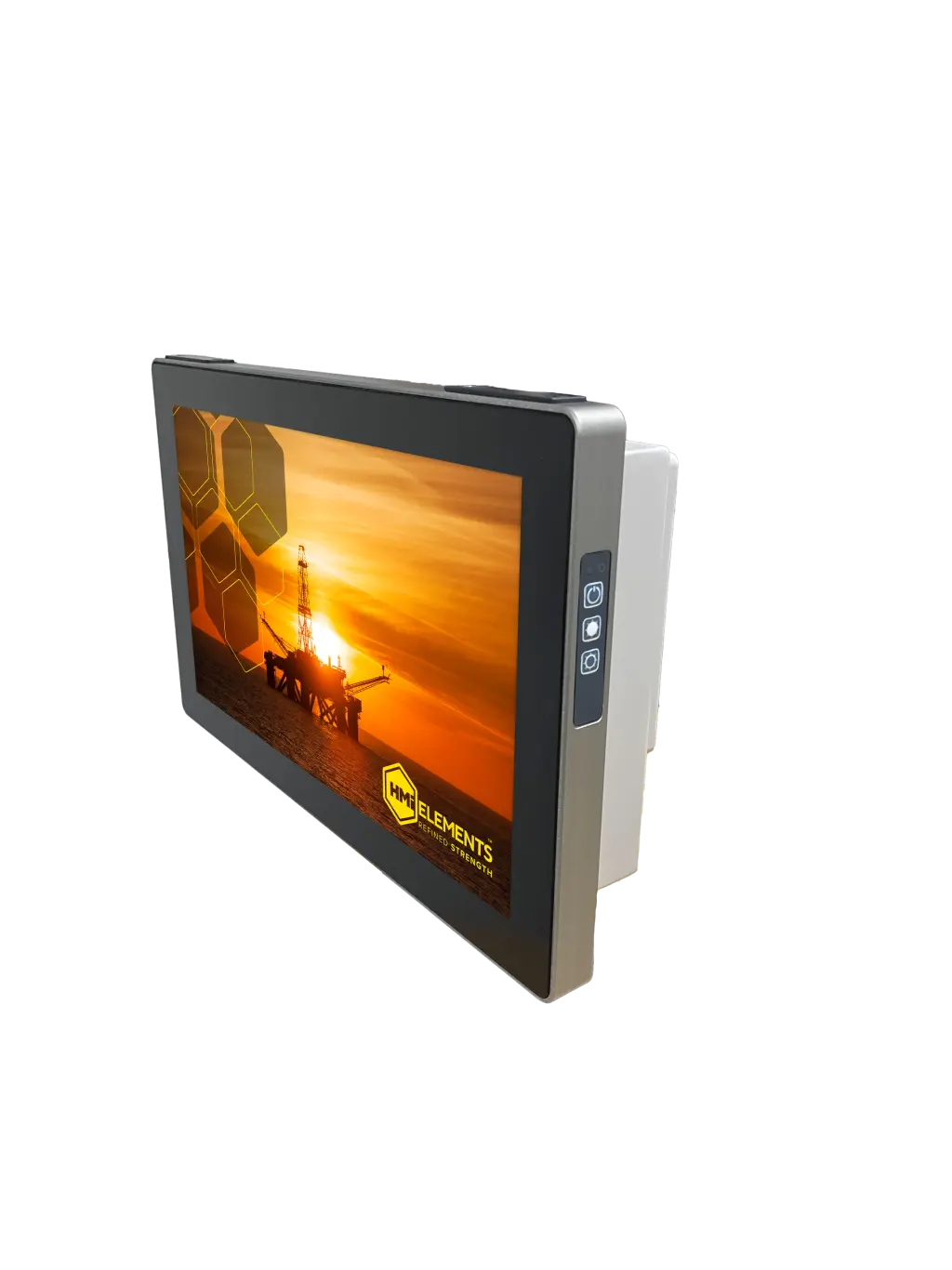

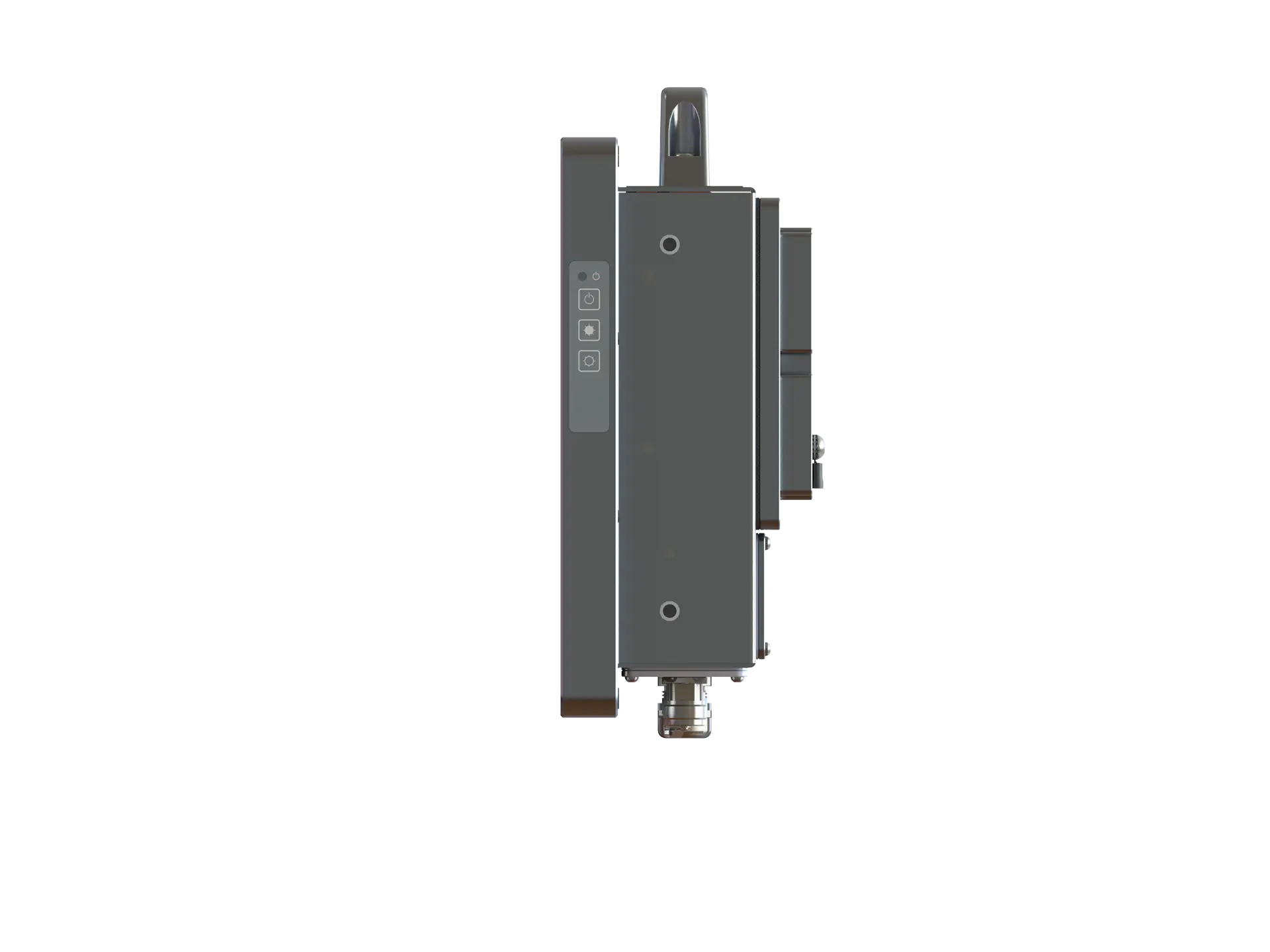

SIDE PANEL CONTROLS Screen brightness, Power on-off
DIAGNOSTICS Dual colour LED diagnostic indicator.
Power sequencing and heater control indicator
SSD OPTIONS Up-to 2x SATA 3.0. SSD : High Endurance and Standard Endurance options.
SSD sizes available from 64Gb to 1TB
RAM 8GByte, 16GByte & 32Gbyte & 64Gbyte
LAN 2 x Intel I225-LM ( 10/100/1000 mbps)
WI-FI (OPTION) IEEE 802.11 ac/a/b/g/n (2.4GHz and 5GHz)
BLUETOOTH (OPTION) V5.2
USB 2 x USB 2.0
SERIAL COMMUNICATION 2 x COM ports.
Supporting RS232, RS422 or RS485)

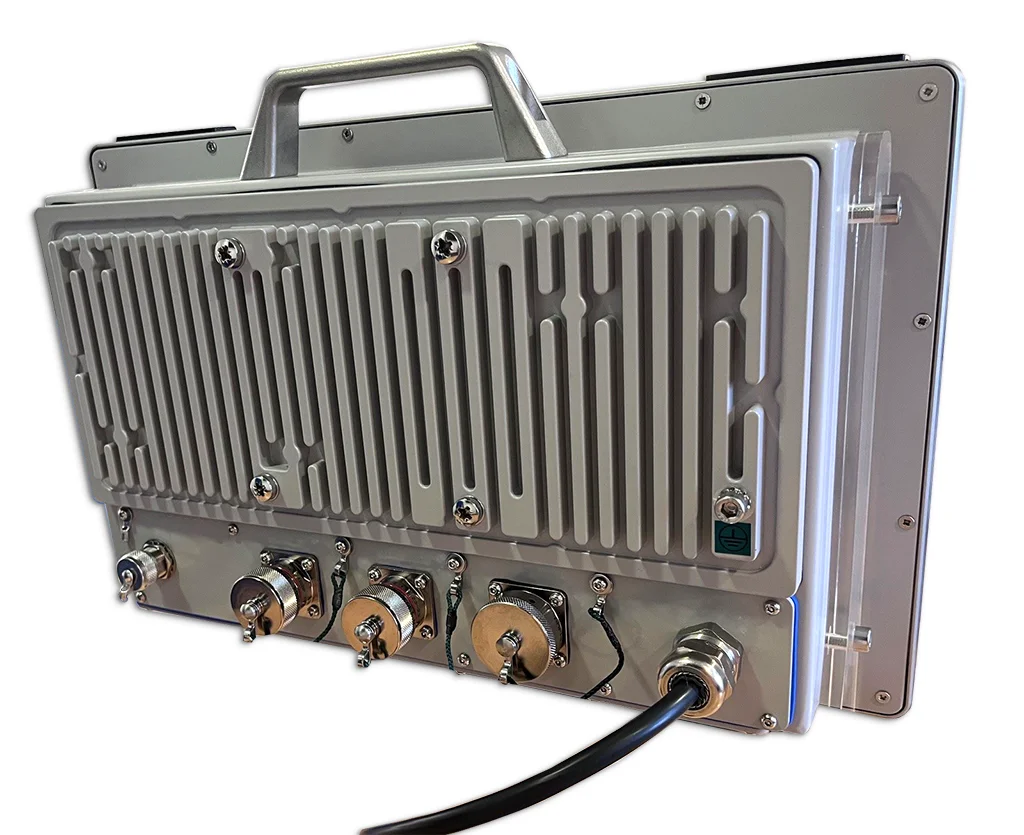

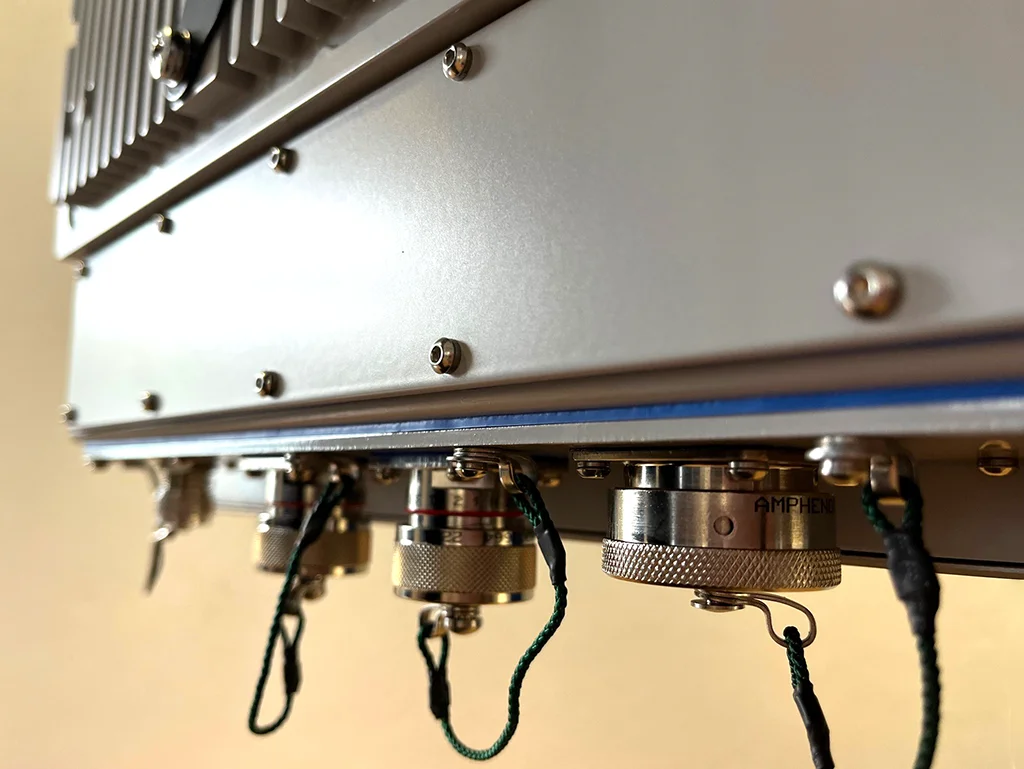

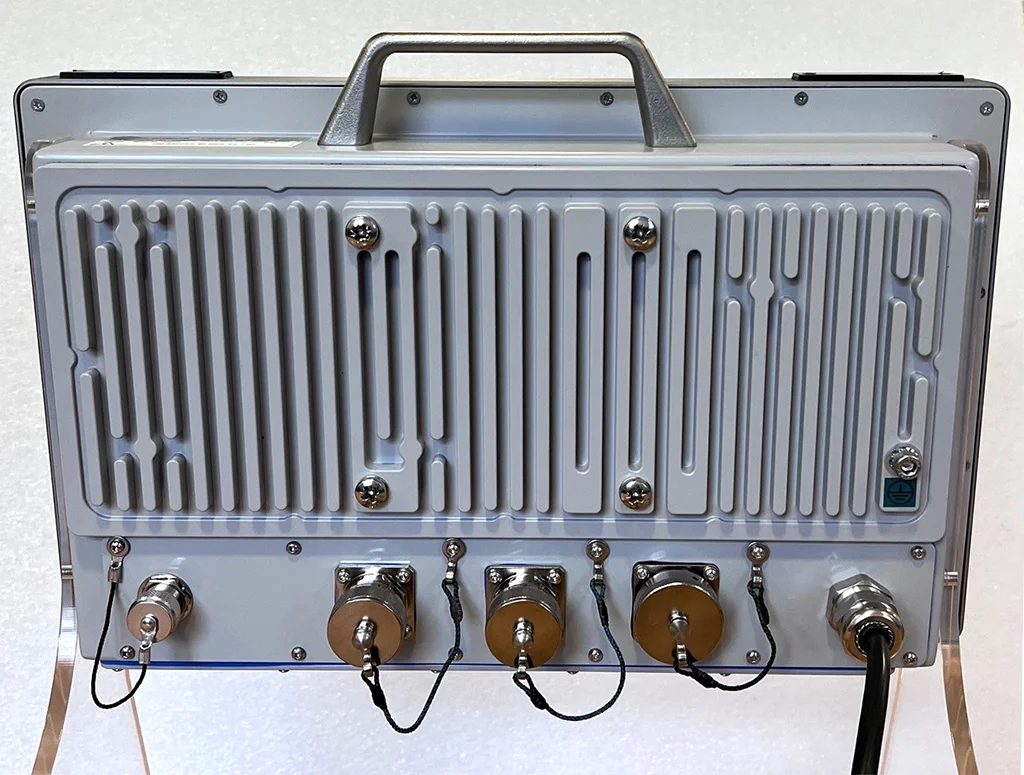

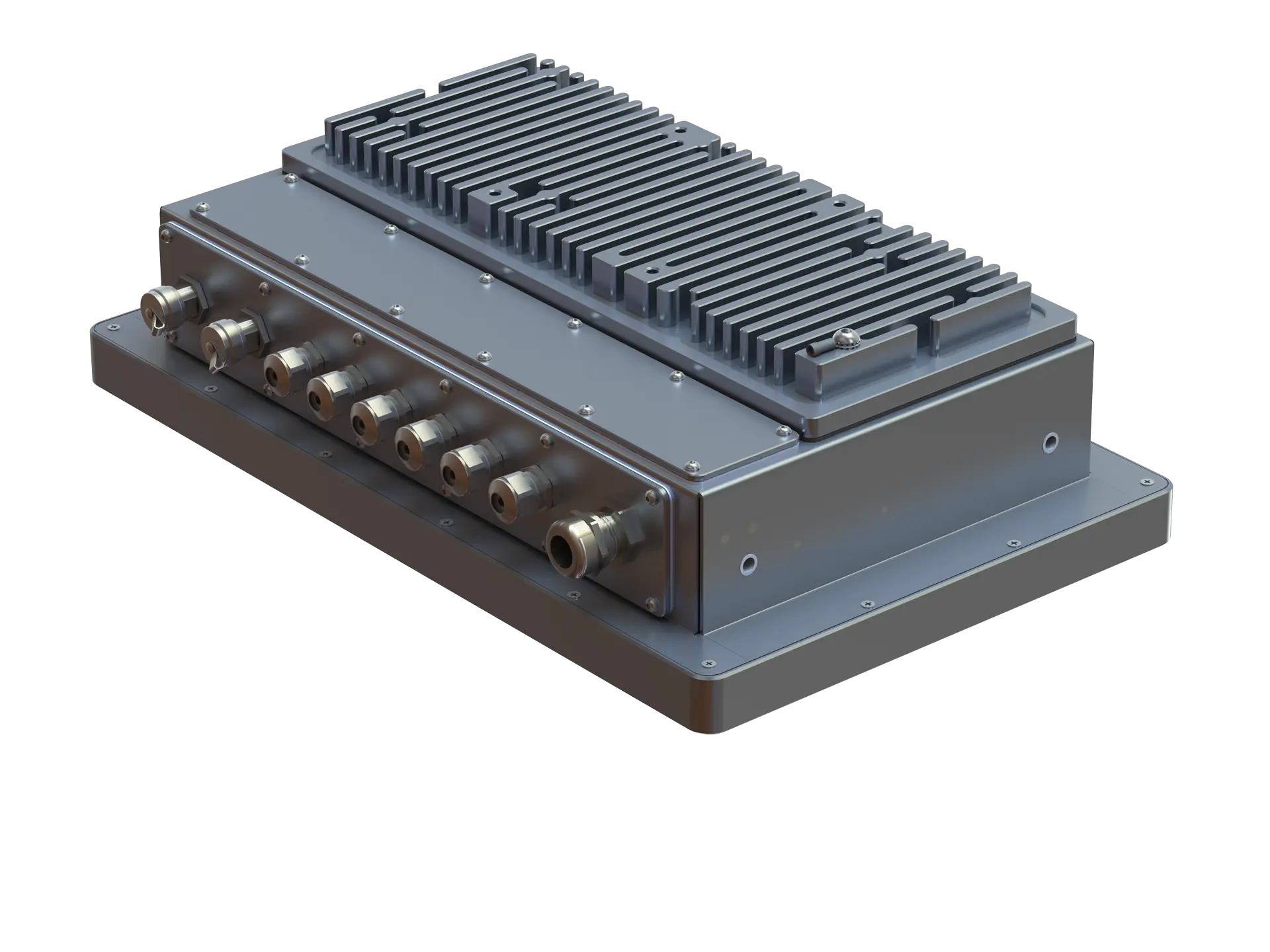

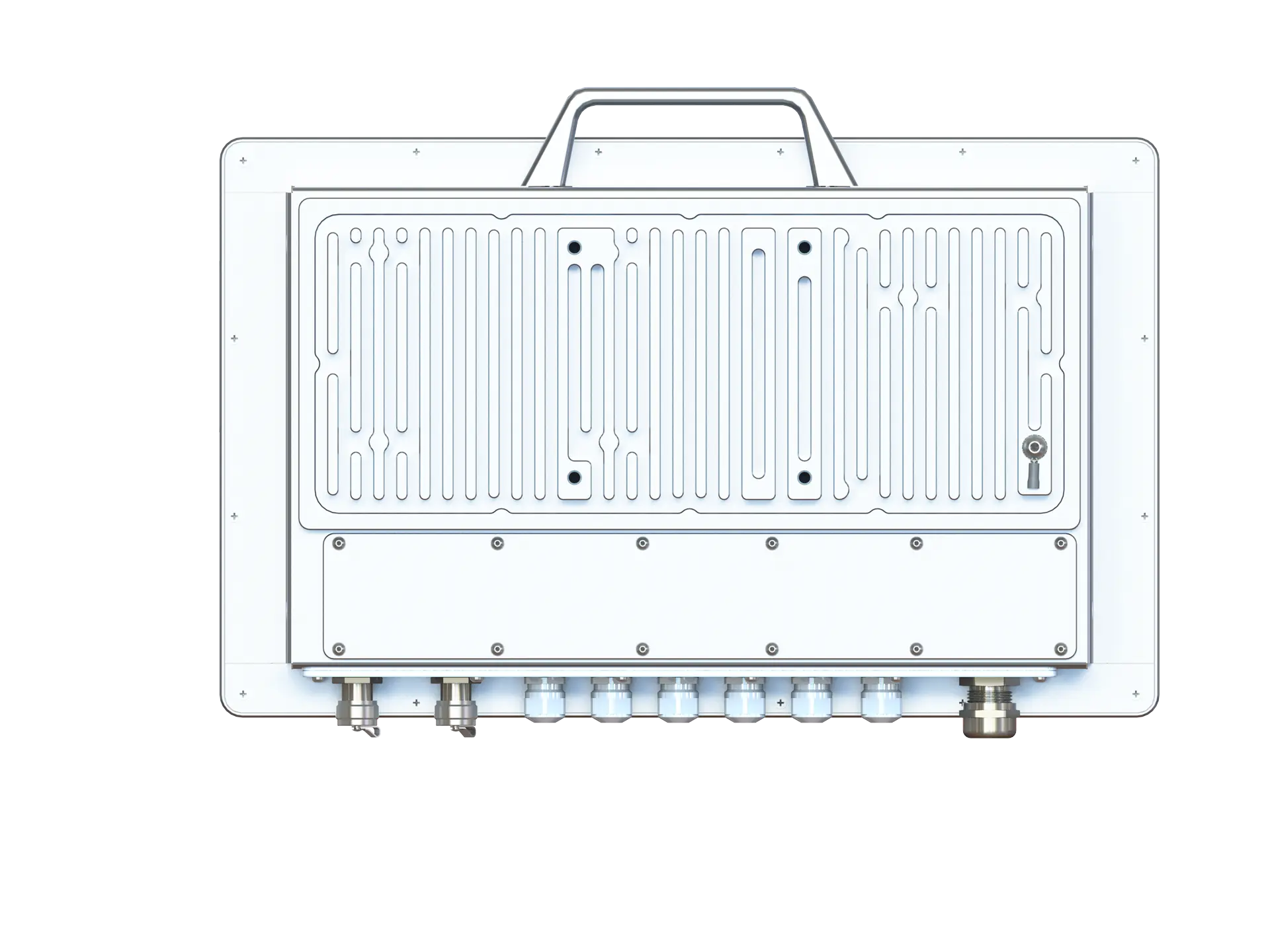

I/O PLATE Interchangeable bottom or rear mounted.
Cable glands or connectors are optional.
INGRESS PROTECTION IP66 / NEMA4X.
OPERATING TEMPERATURES -40°C to +60°C (-40°F to +140°F)
STORAGE TEMPERATURES -40°C to +85°C (-40°F to +185°F)
HUMIDITY 10 – 90% non-condensing (operating)
MAX DIMENSIONS W408mm (16.06”) x *H254mm (10”) x D101mm (3.98”)
Optional lifting handle increases height to 274mm (10.79”)
WEIGHT 9kg/19.8lbs excluding connectors, cables, and accessories

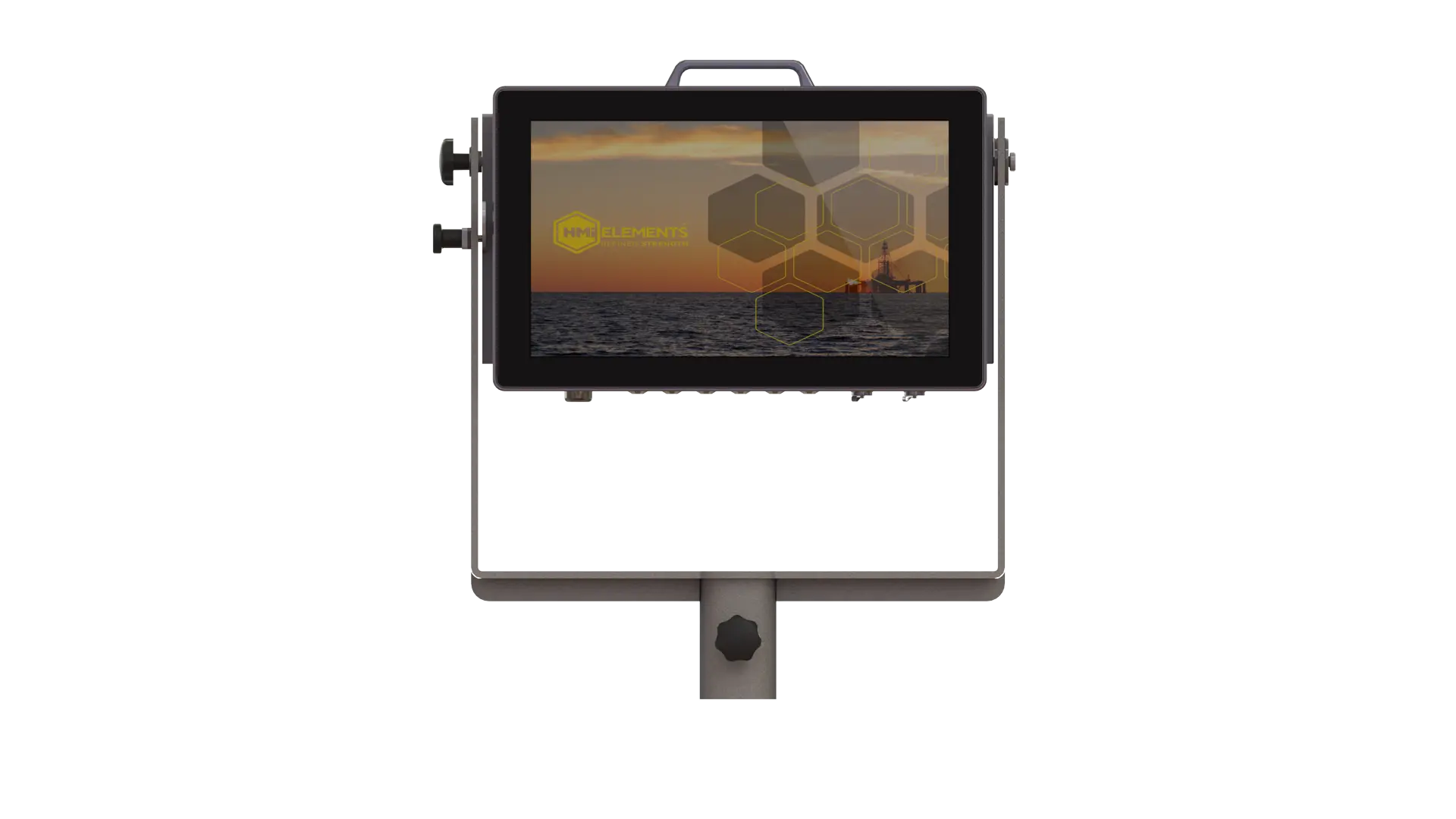

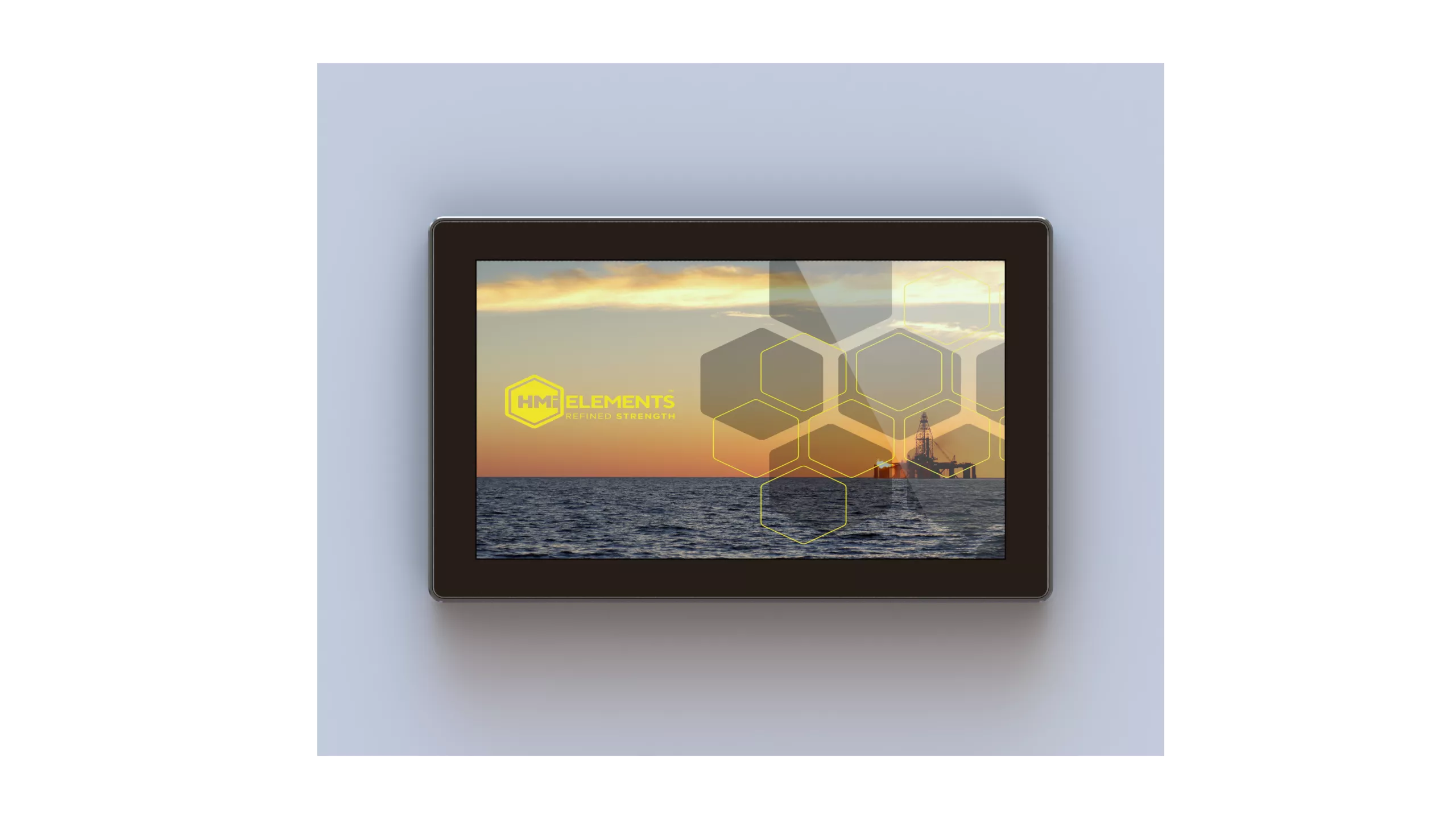

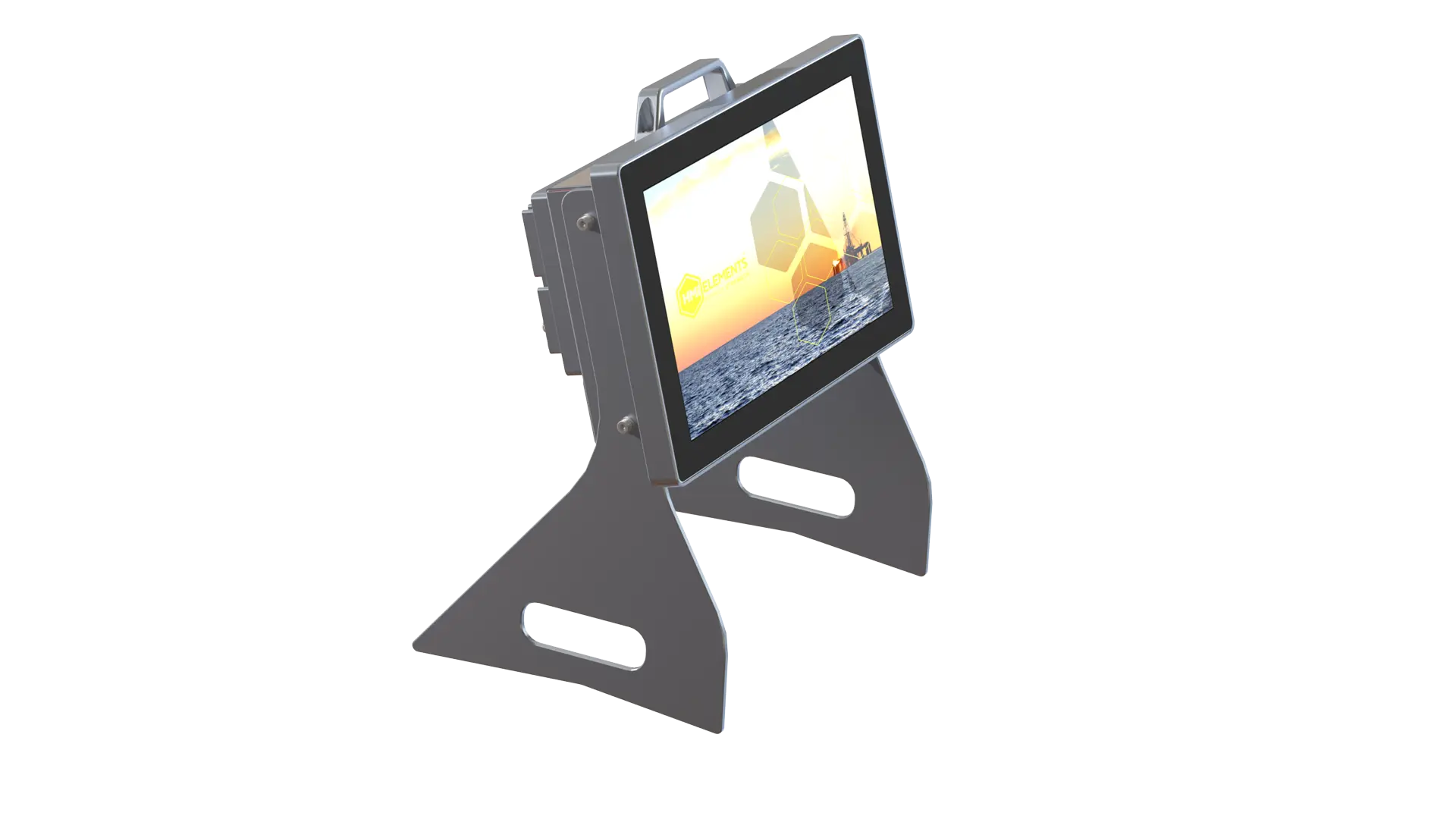

MOUNTING OPTIONS VESA (100mm x 100mm), Yoke, Panel, Desktop

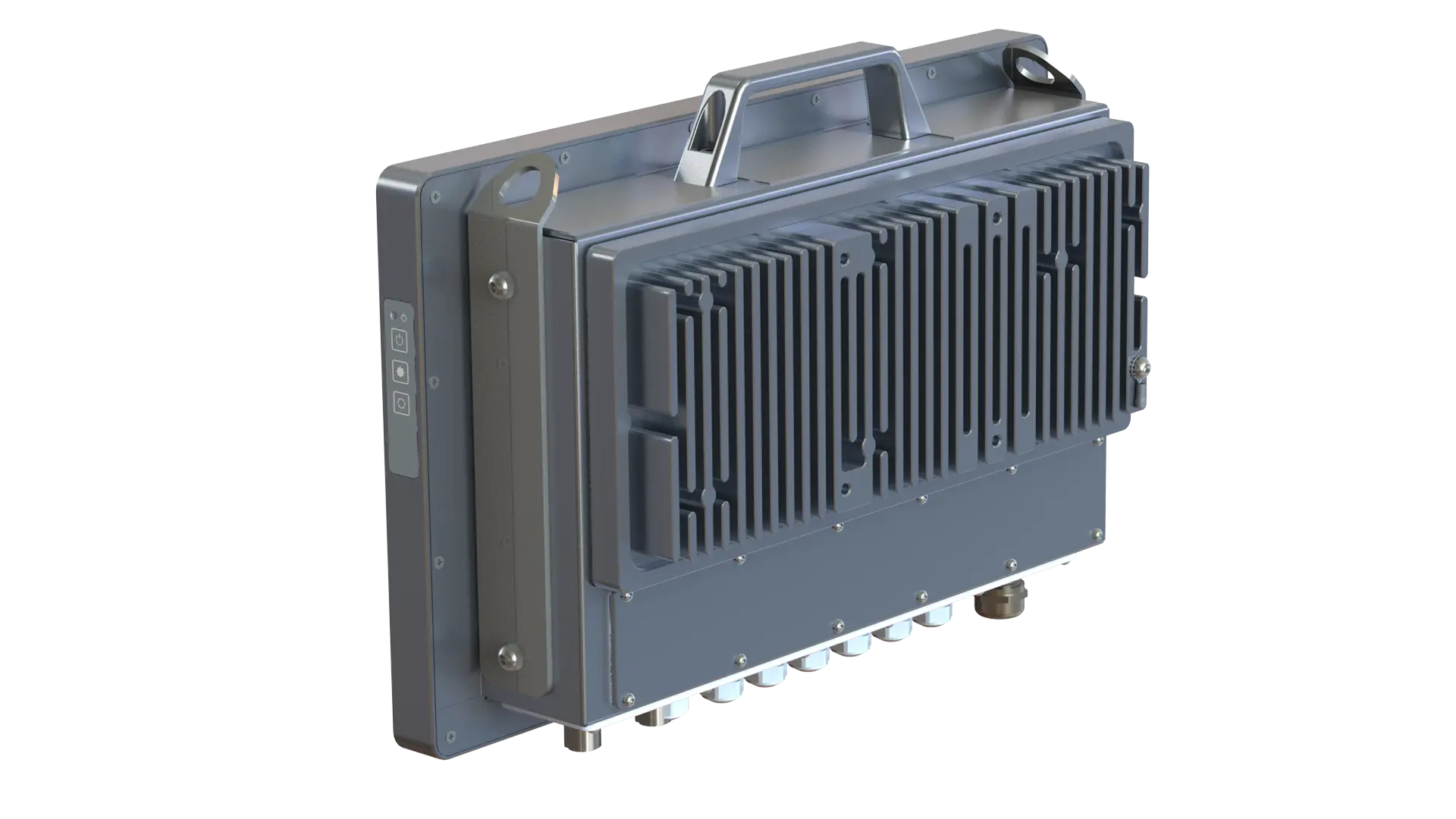

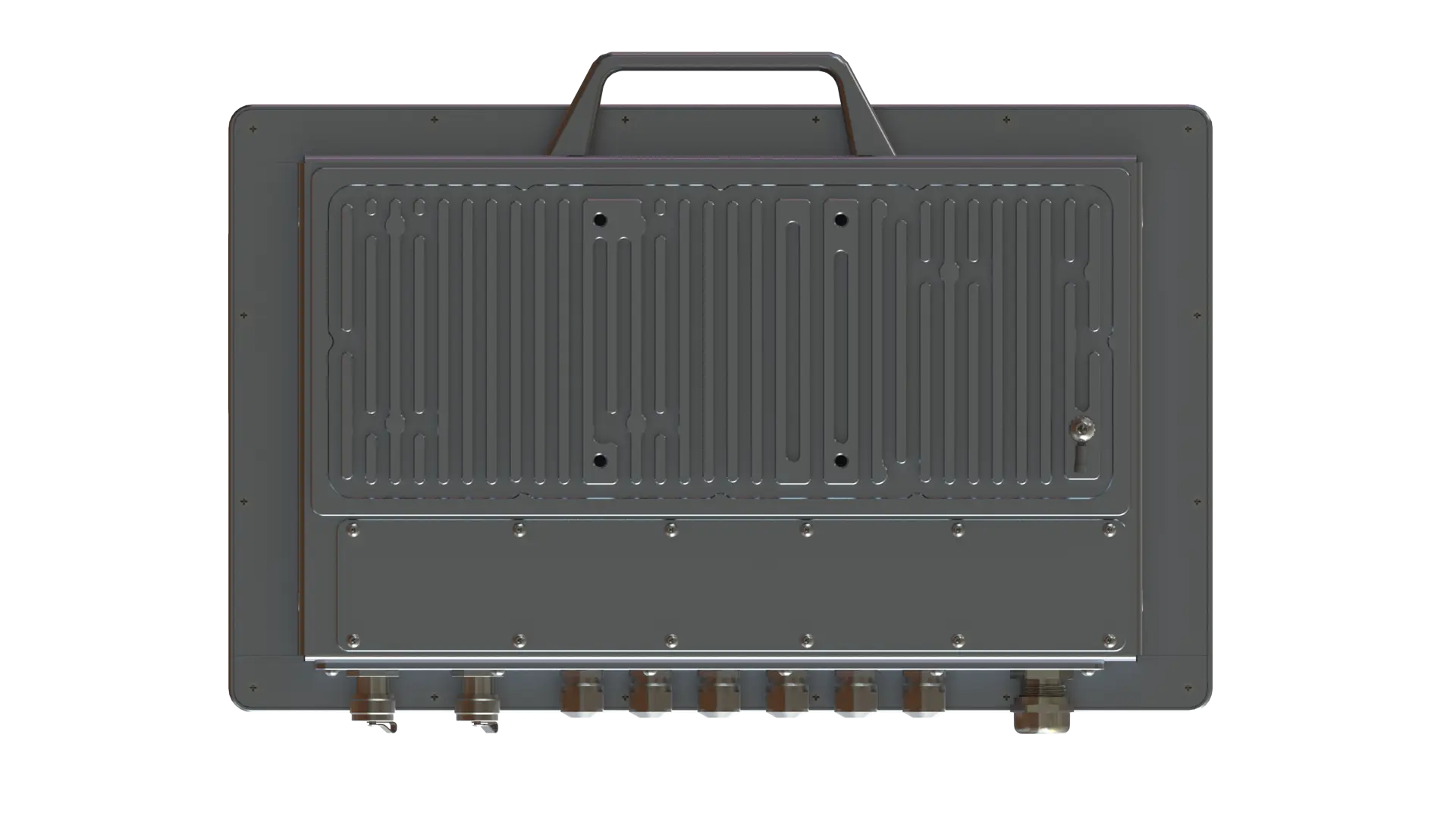

LIFTING OPTIONS Top mounting Lifting handle available
EMC Emissions/Immunity : Class A Certified under EN55032, EN55035, FCC
Radio : ESTI EN301489
