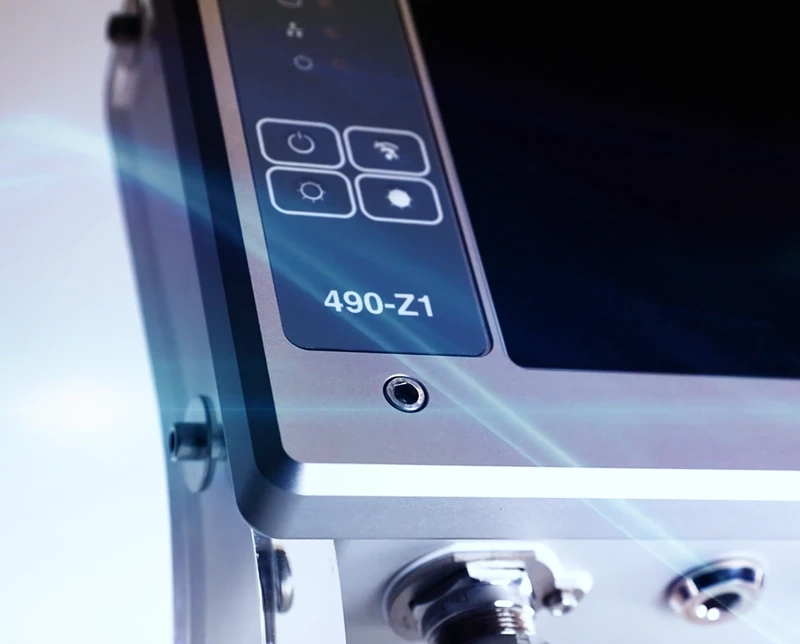

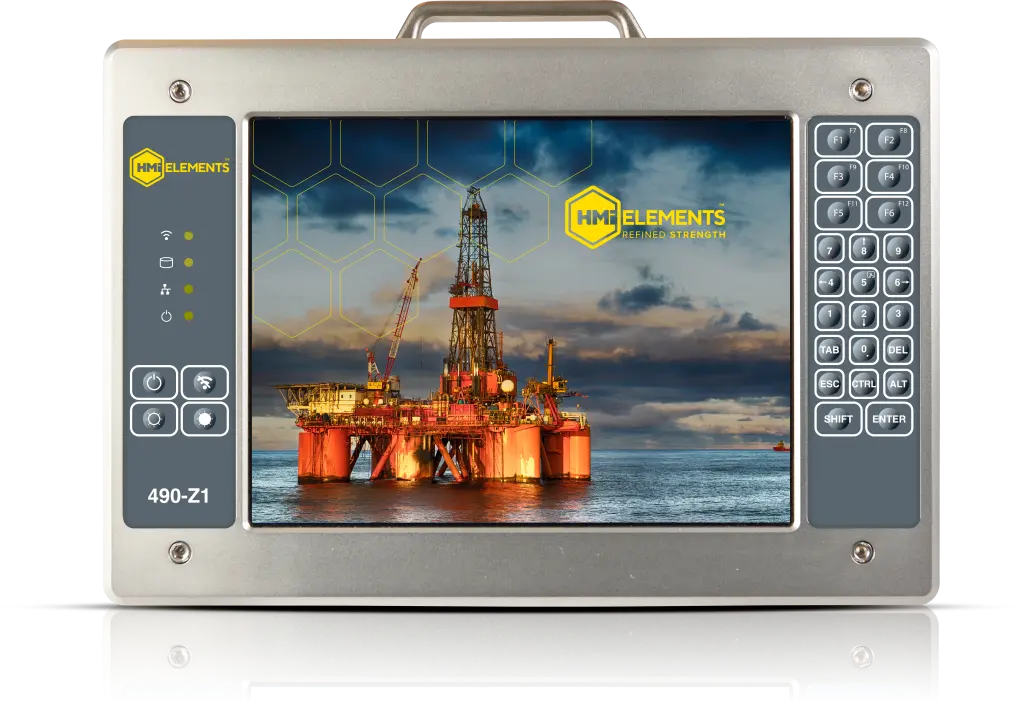

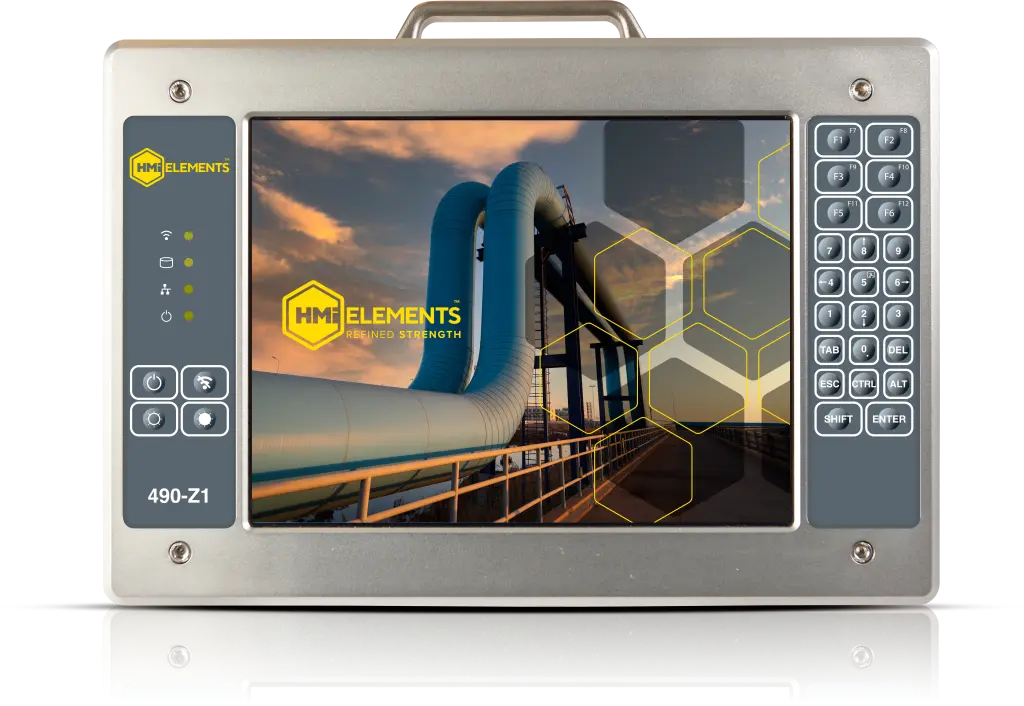

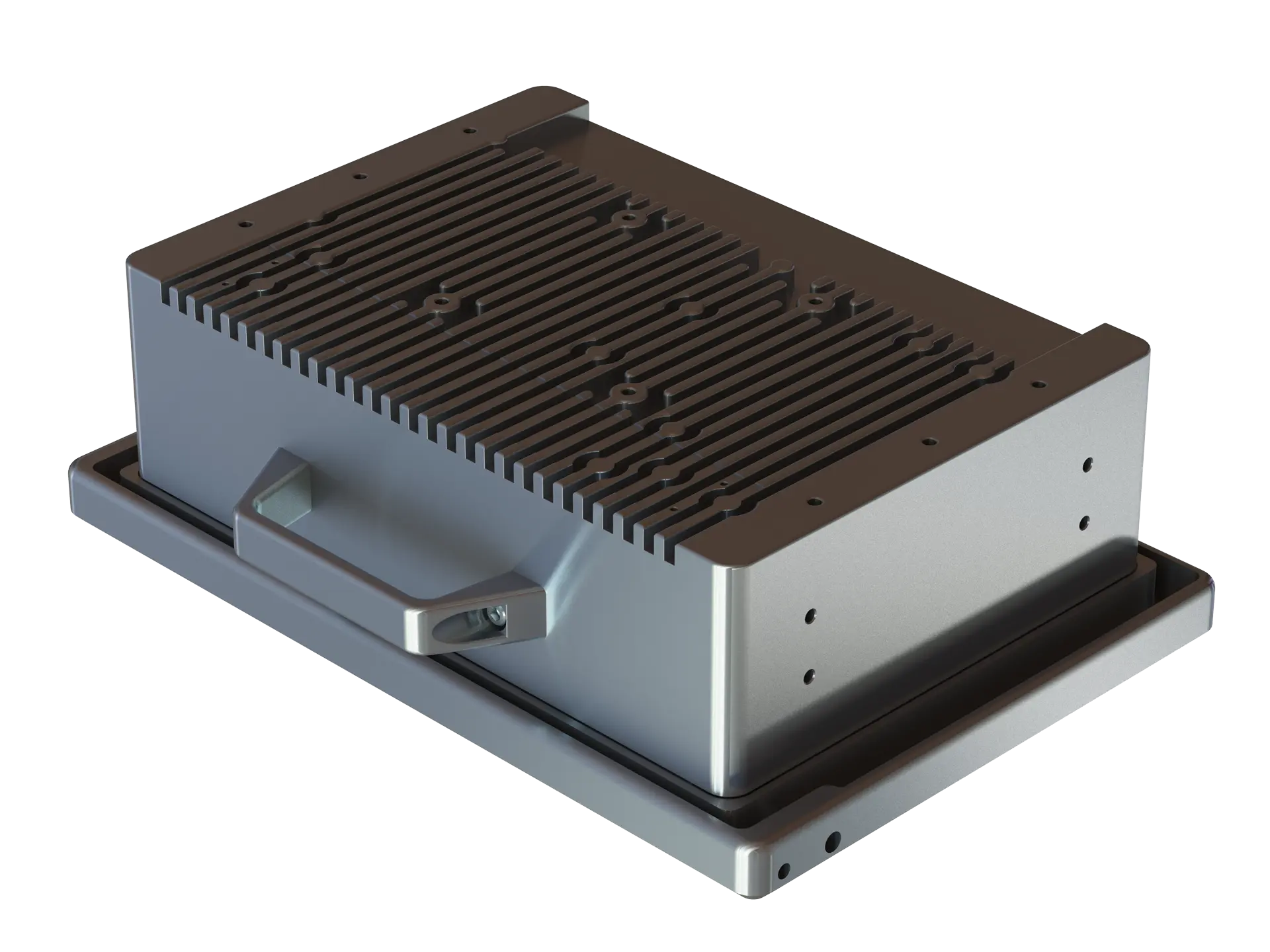

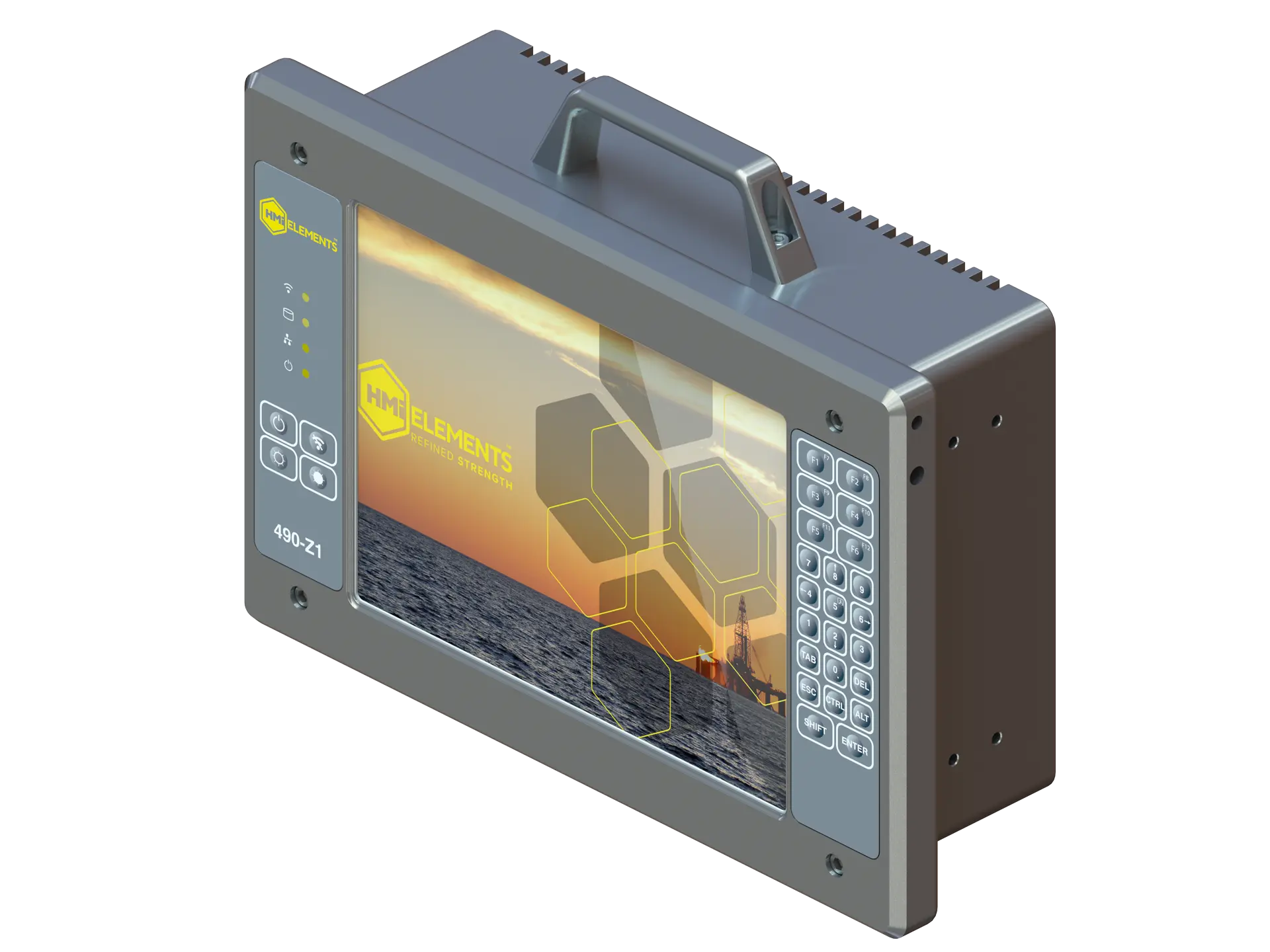

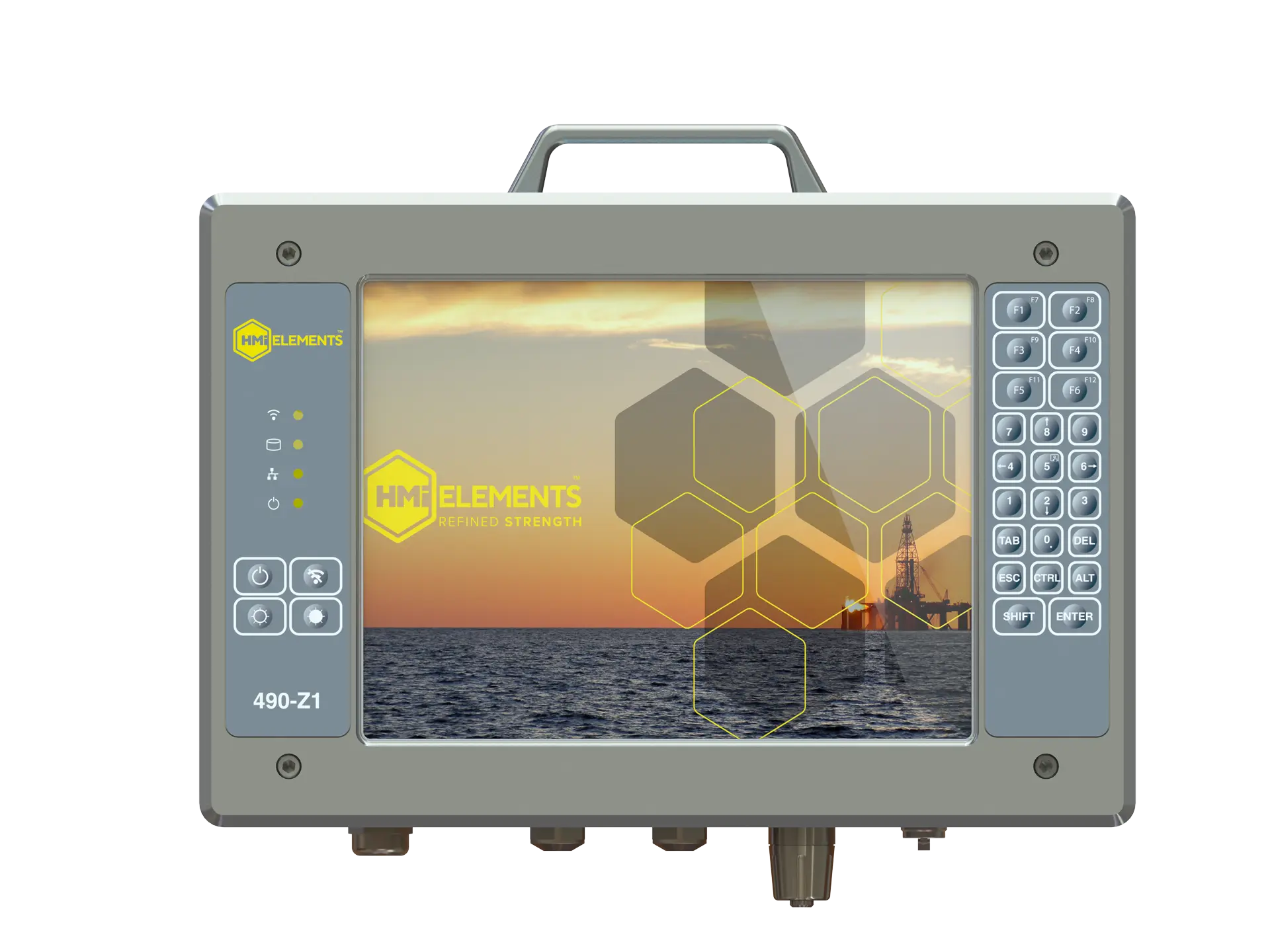

490-Z1

Precision engineered enclosure provides durable, compact, lightweight and modular HMI suitable for FDA driller display applications. Field-tested and proven to perform in the harshest of Zone 1, Zone21, gas and dust environments.

HMI only requires one man to lift and certified to ATEX, UKEX, IECEx, AEx and ordinary location standards.

  • Modular construction for field maintenance
  • Quad Core Intel Celeron N2930 1.83GHz processor
  • 8GB DDR3 SDRAM
  • High brightness 12.1" LCD panel with LED backlight display
  • 1024 x 768 resolution
  • Projected Capacitive Touchscreen (PCT) with four or more touch points
  • 80GB, 160GB, 320GB mSATA Solid State Drive
  • 10/100/1000Gb Base-T Ethernet, Wi-Fi & Bluetooth
  • Fibre-optic port, via 850nM or 1310nM



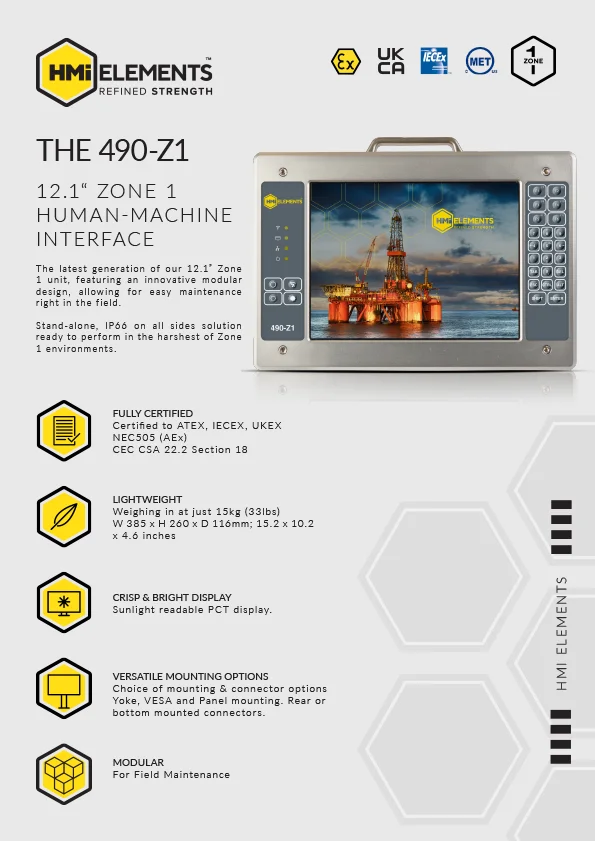

FULLY CERTIFIED

Certified to ATEX, IECEx,
NEC505 (AEx)
CEC 22.2 Section 18
Ordinary Location

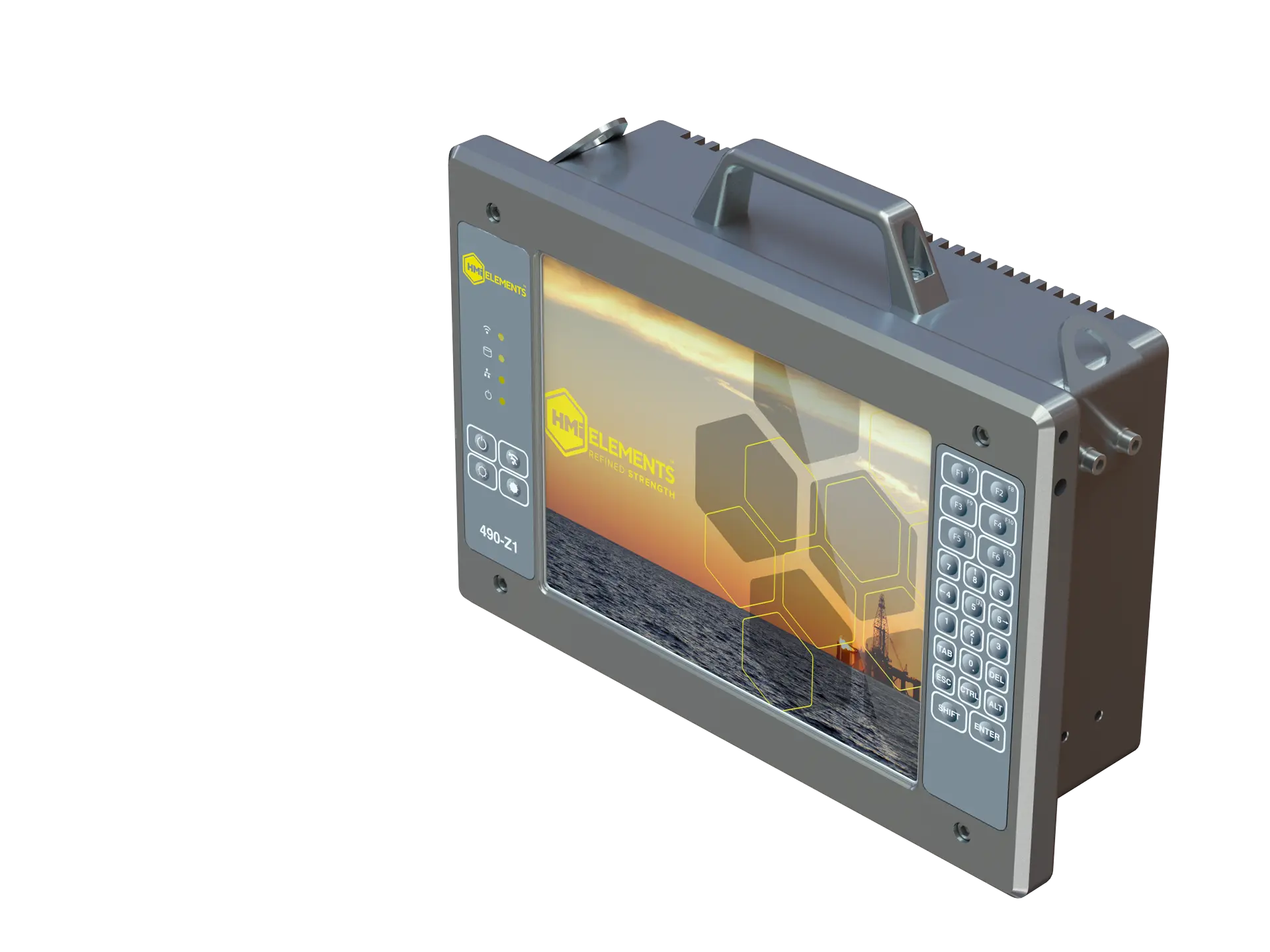

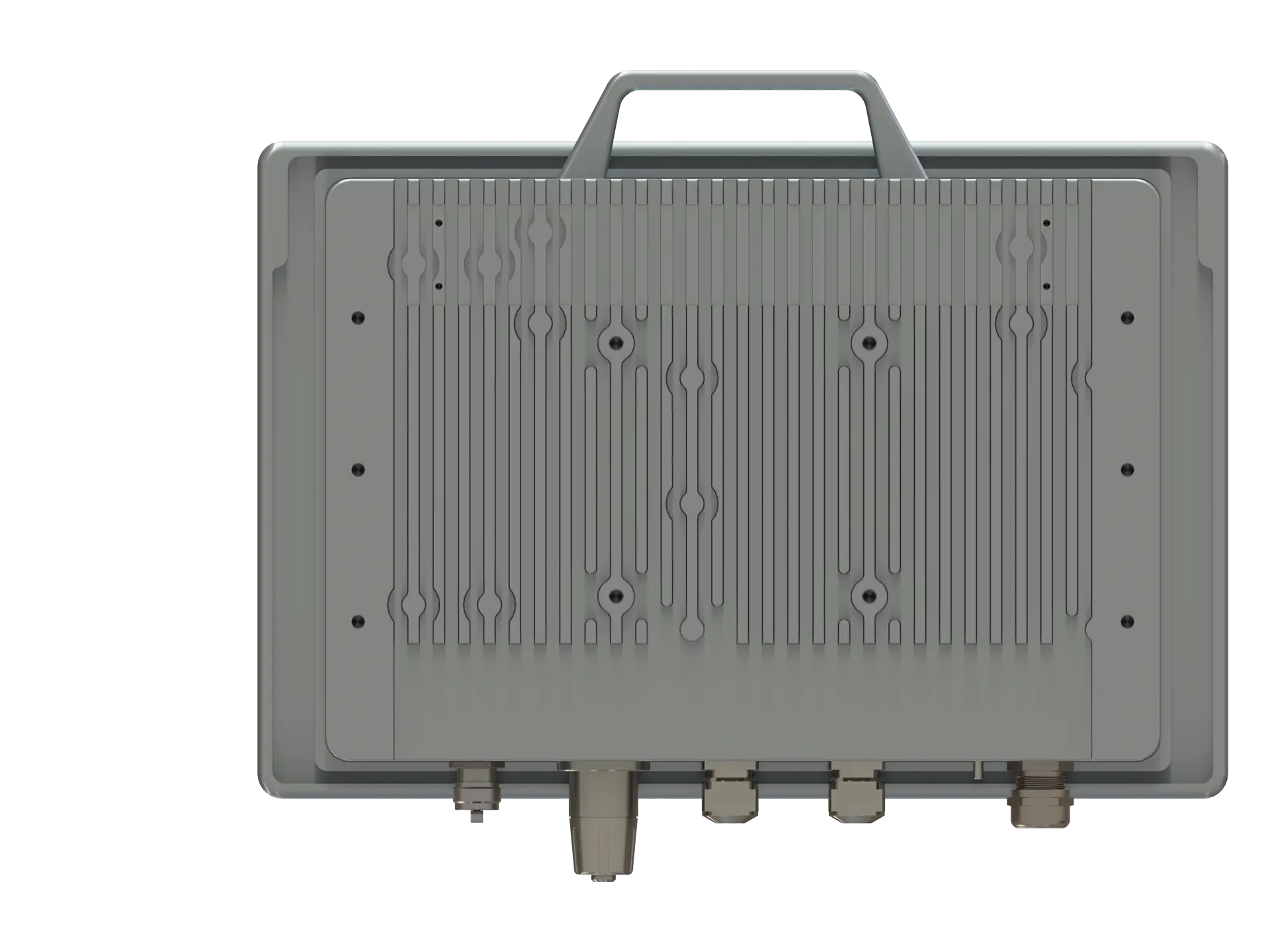

LIGHTWEIGHT

Weighing in at just 15kg (33lbs) W 385 x H 260 x D 116; 15.2 x 10.2 x 4.6 inches

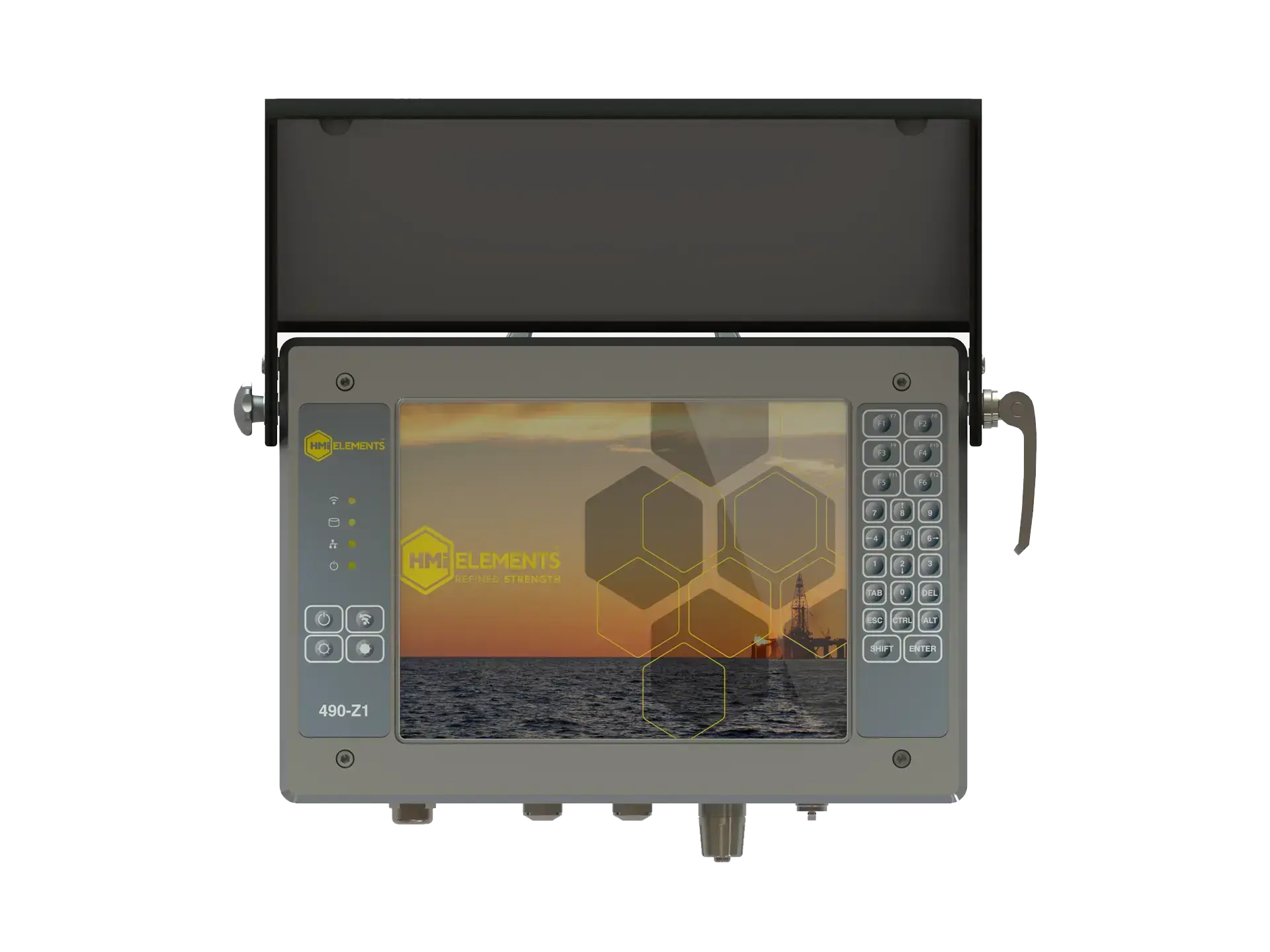

CRISP & BRIGHT DISPLAY

Sunlight readable PCT display

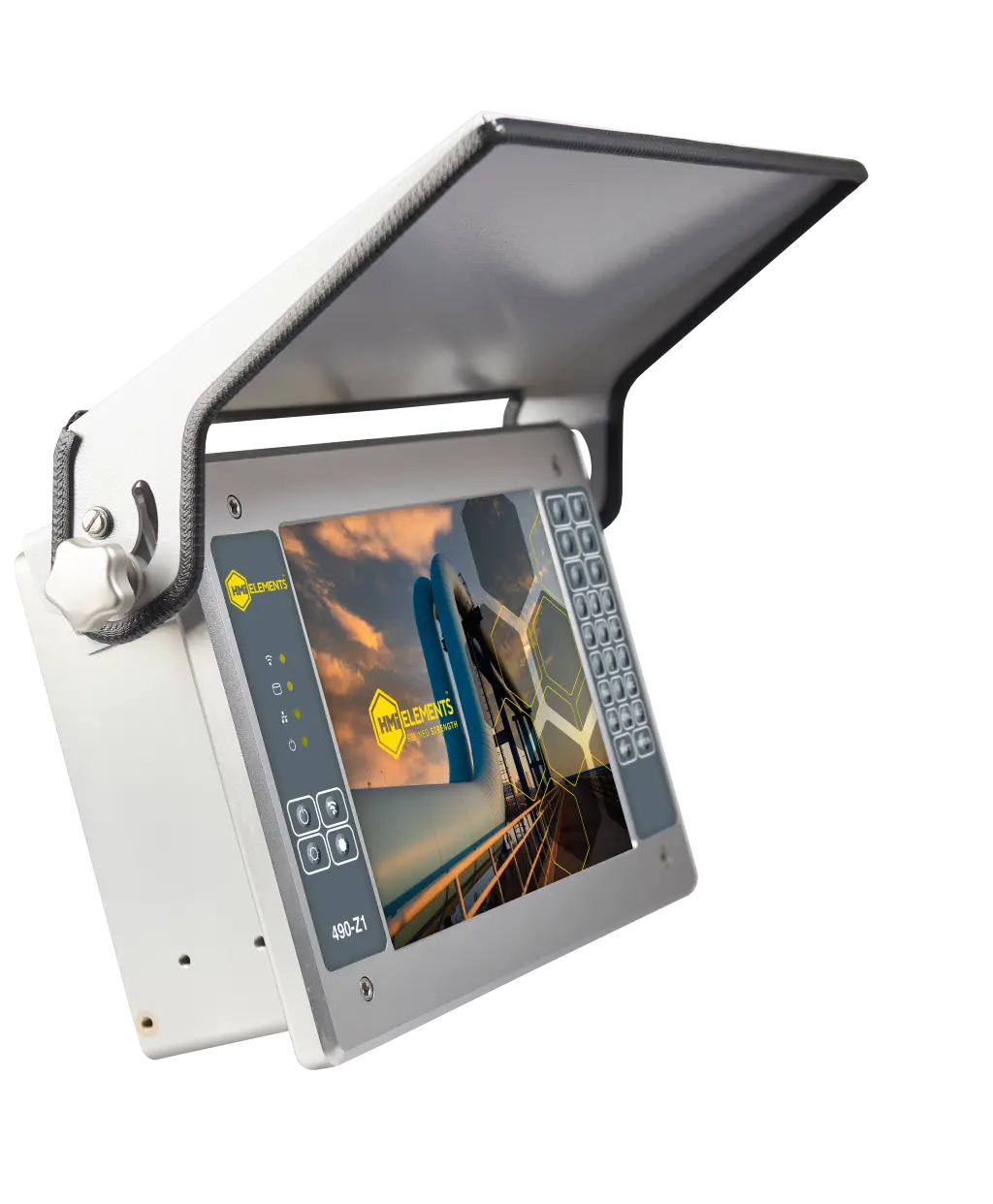

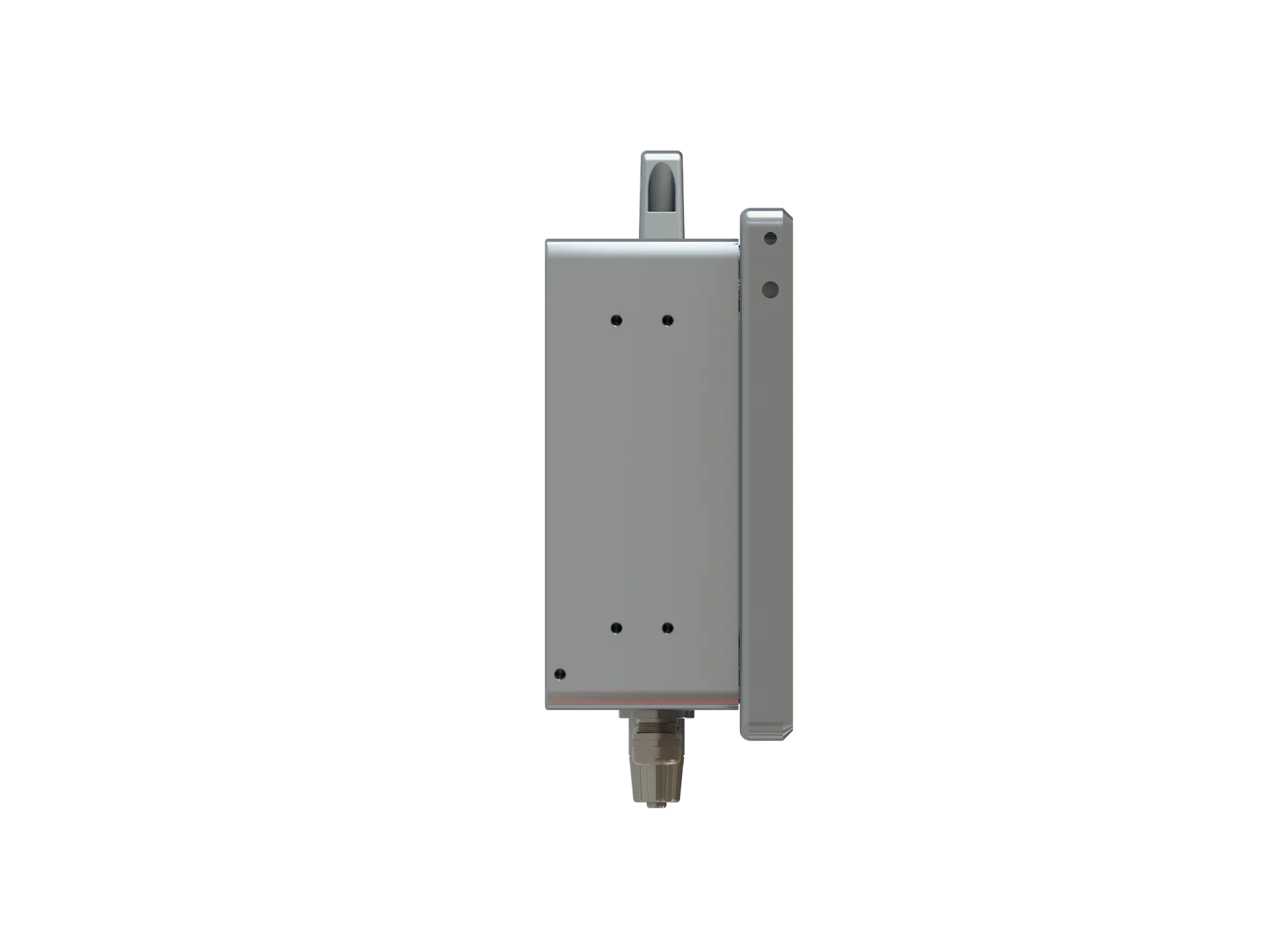

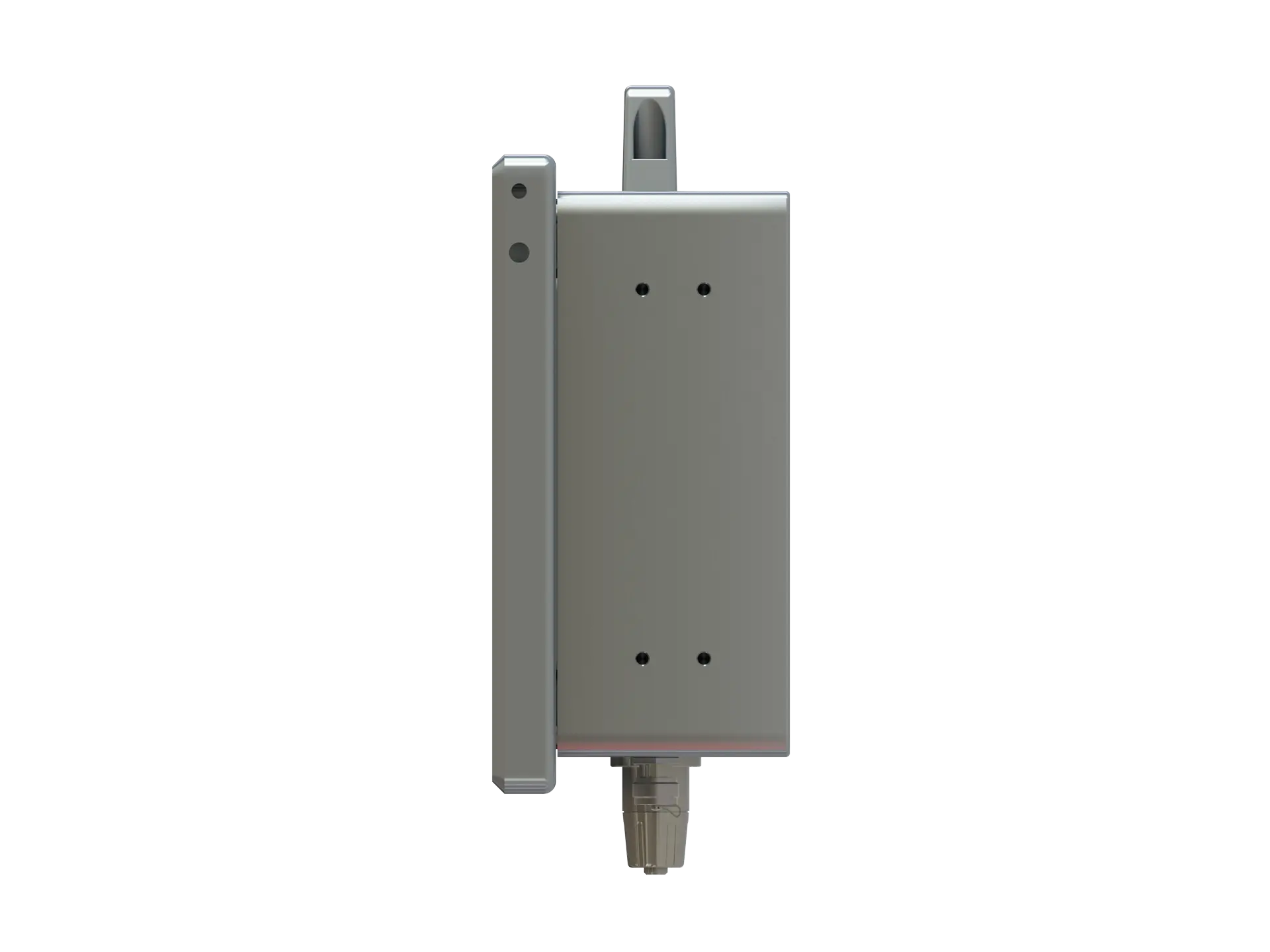

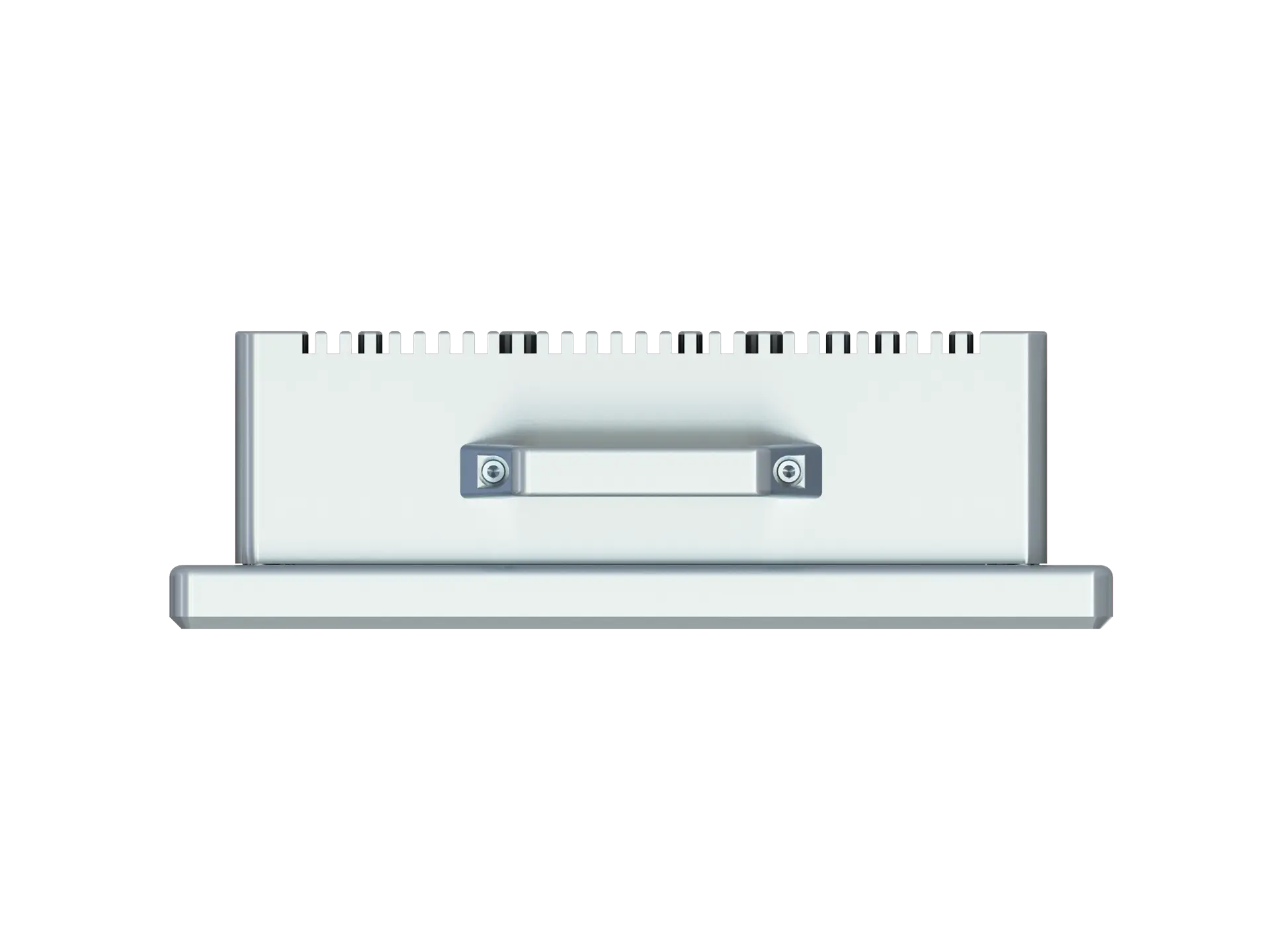

VERSATILE MOUNTING OPTIONS

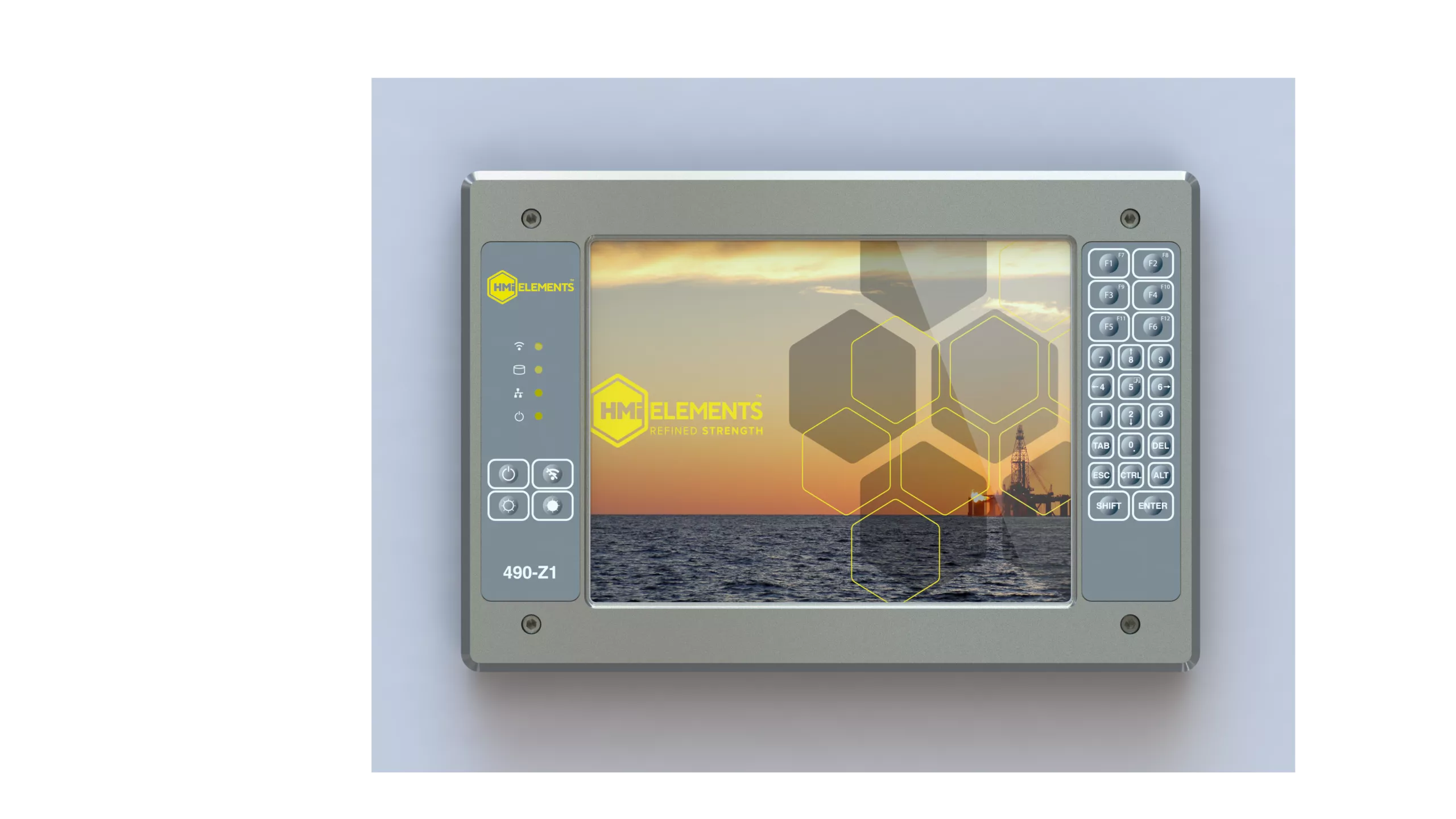

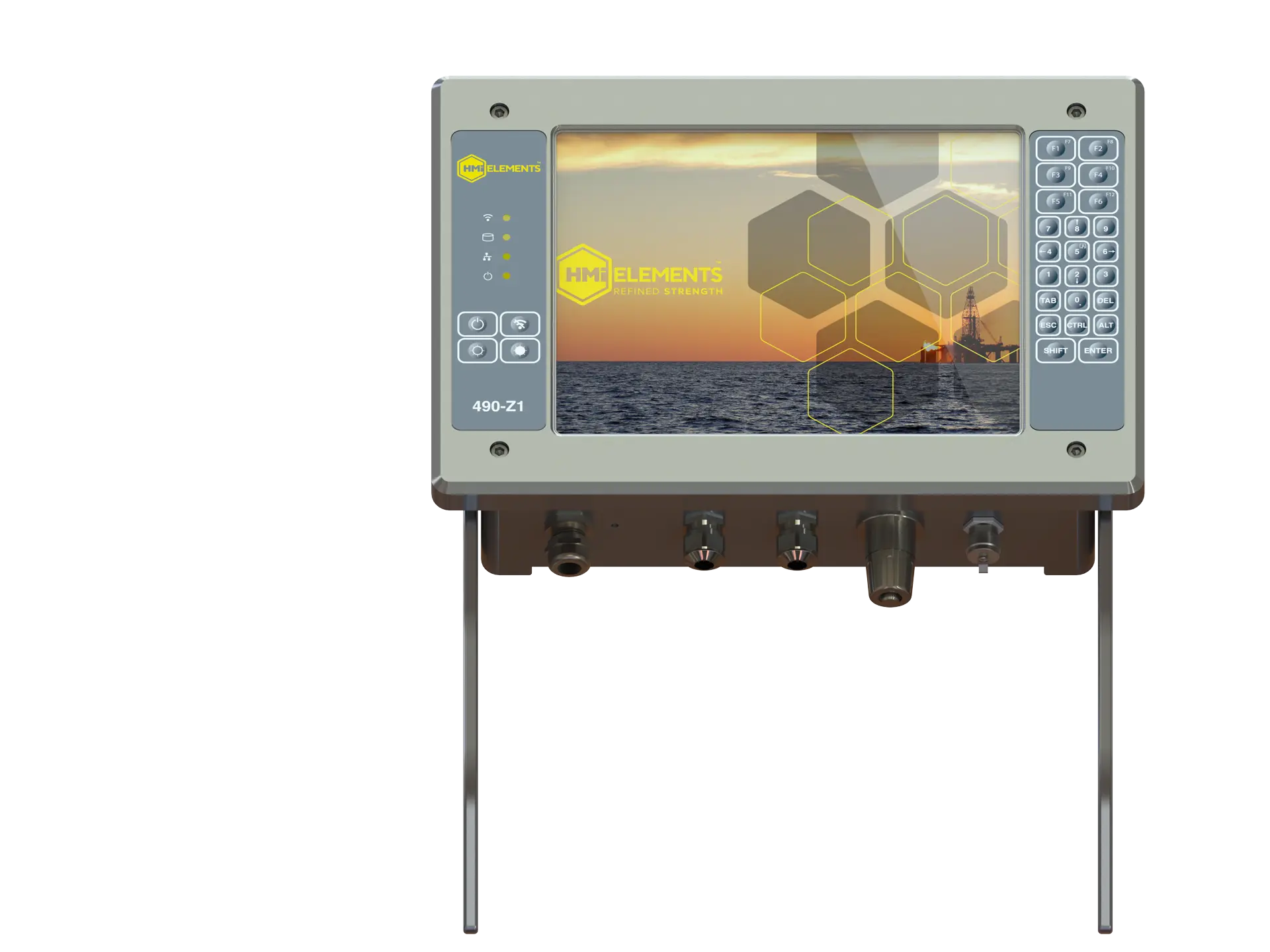

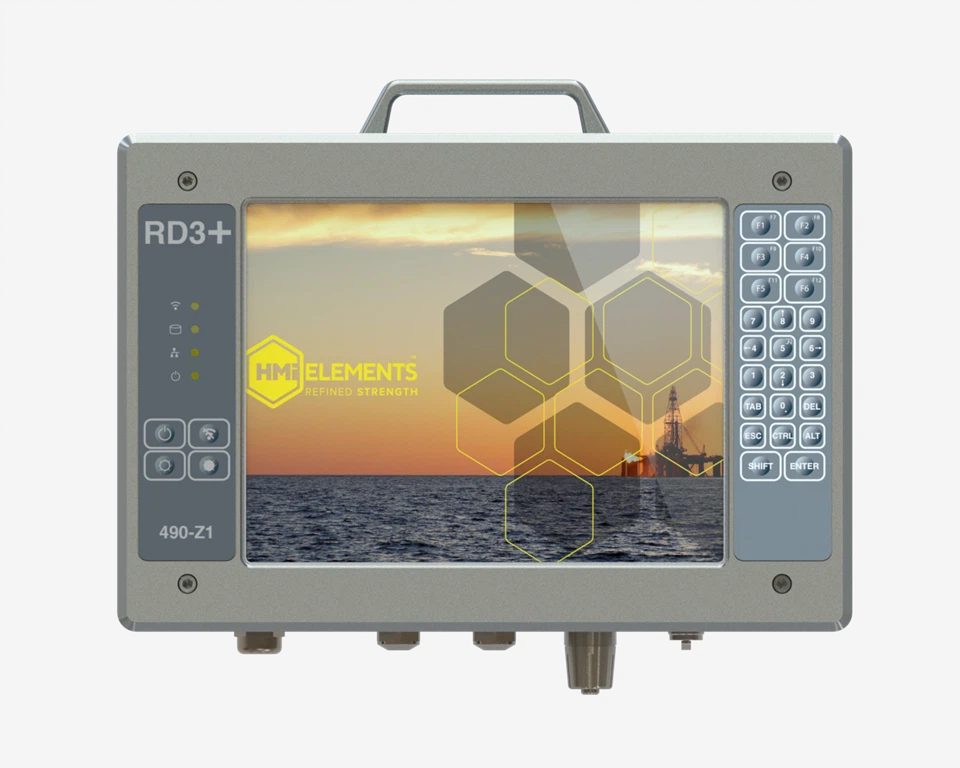

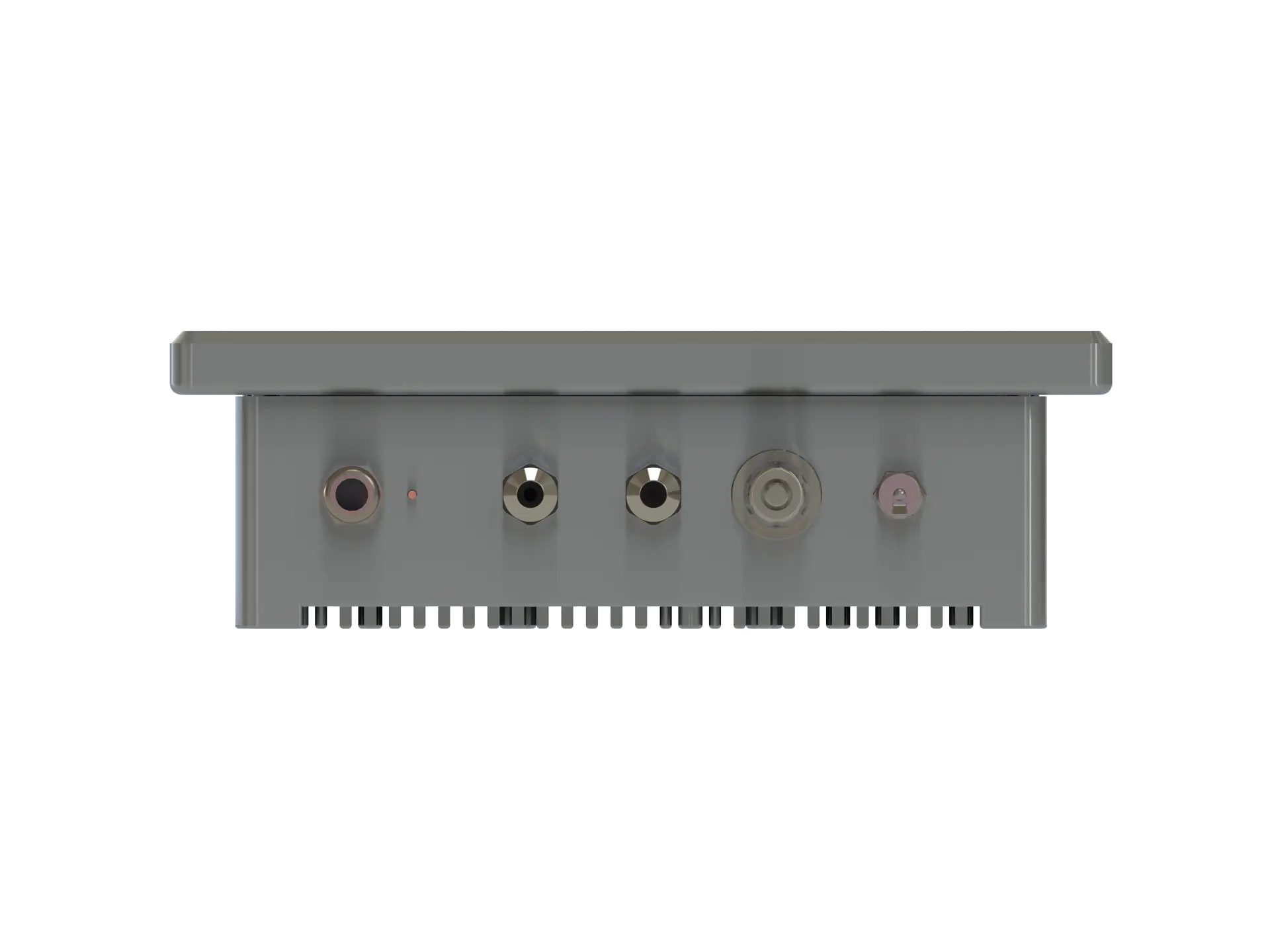

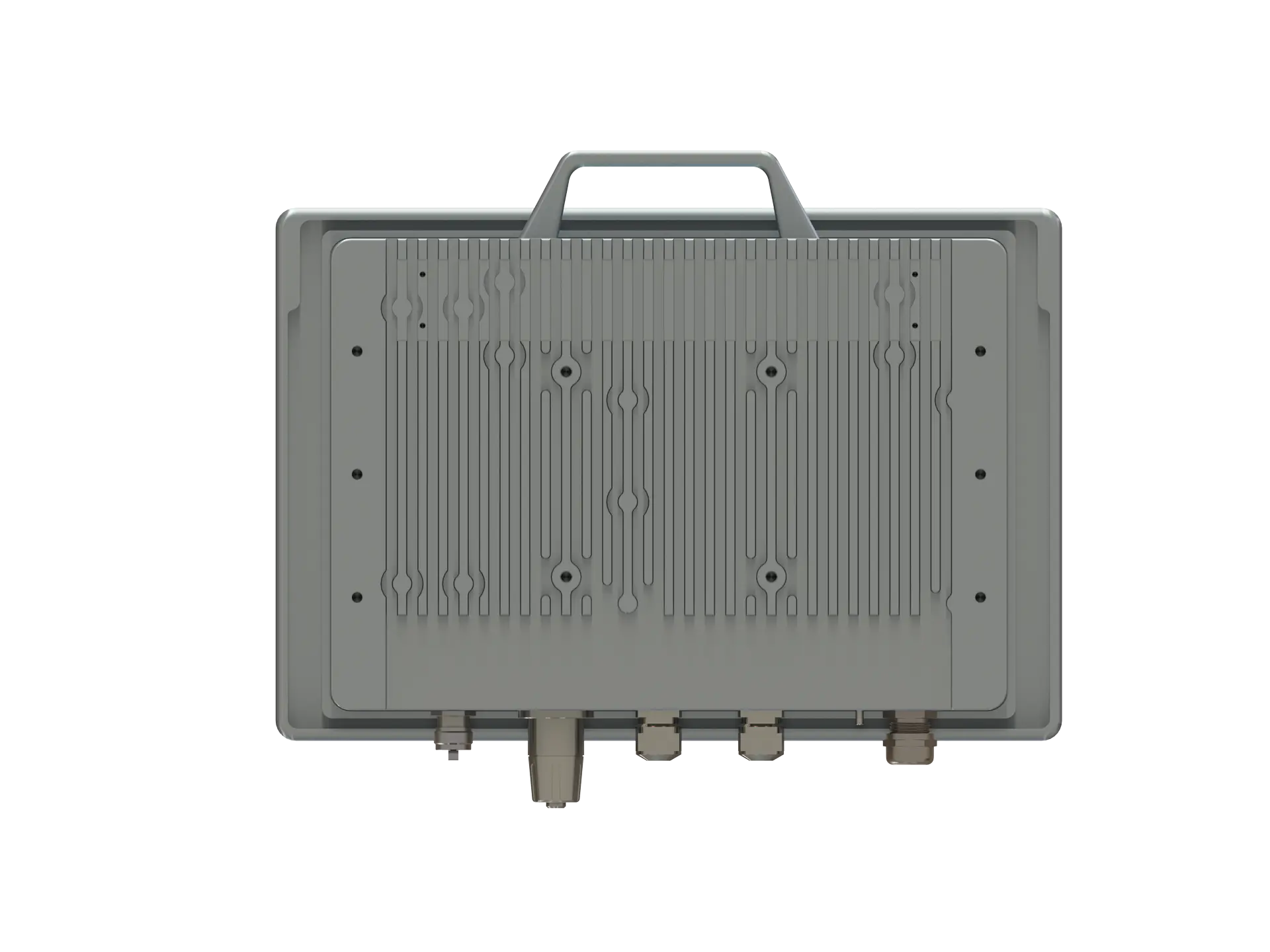

Choice of mounting & connector options Yoke, VESA and Panel mounting. Rear or bottom mounted connectors.

MODULAR

For Field Maintenance

Product Specification



490-Z1 :
PRODUCT TYPE PC Workstation / Driller's Display Unit (DDU)
MODEL NO 490-Z1
TYPICAL EX CODE ATEX/UKEX: Ex e ib mb IIC T4 Gb, Ex tb IIIC T135°C Db
IECEx: Ex e ib mb [ib] IIC T4 Gb, Ex tb [ibD] IIIC T135°C Db
USA: Class I, Zone 1, AEx e ib mb [ib] IIC T4, Class II, Zone 21,
AEx tb [ib] IIIC T135°C
Canada: Ex e ib m [ib] IIC T4 Gb, Ex t [idD] IIIC T135°C Db
DISPLAY SIZE 12.1" LCD panel with LED backlight display
DISPLAY TOUCH Projected Capacitive Technology (PCT) - Multi Touch, Glove Friendly
RESOLUTION 1024 x 768
PROCESSOR Quad Core Celeron N2930 Series 1.83GHz
OPERATING SYSTEM Windows 10 Enterprise LTSB, Windows 7 Professional
STORAGE 80Gb, 160Gb, 320Gb
MEMORY 8GB DDR3 SDRAM
ETHERNET OPTIONS (optional) Copper Ethernet port 10/100/1000 Mbits/s Base-T
(optional) Fibre Optic port via 850nM or 1310nM
WI-FI / BLUETOOTH 2.4 and 5 GHz Wi-Fi (802.11 b/g/n)
Bluetooth
KEYBOARD / MOUSE (optional) Intrinsically Safe PS/2 Interface
USB Internal USB port for Safe area
(optional) External USB type 2.0 port via Gland, Exlink or DR4
INGRESS PROTECTION IP66 / NEMA4X
OPERATING TEMPERATURE -40°C to +60°C (-40°F to +140°F)
STORAGE TEMP -40°C to +80°C (-40°F to +176°F)
HUMIDITY 10 to 90 % non-condensing, operating
0 to 100 % non-operating
WEIGHT < 33Ibs / 15kg
DIMENSIONS 385(W) x 260 (H) x 116(D)mm; 15.2 x 10.2 x 4.6 inches
SHOCK & VIBRATION Shock: In accordance with BS EN60068-2-27:2009
Vibration: In accordance with BS. EN60068-2-6:2008
