ATEX

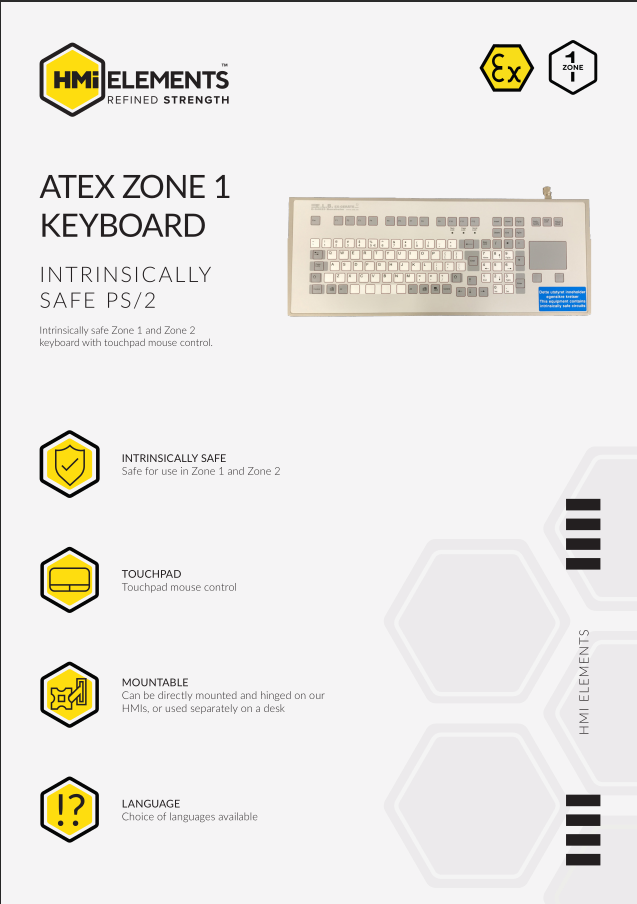

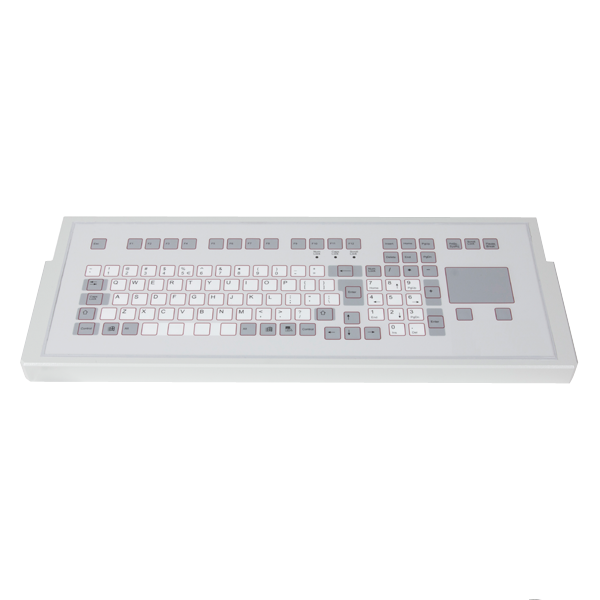

Intrinsically Safe PS/2 Keyboard

  • Typical Ex Code:II 2 G Ex ia IIC T4
  • Intrinsically safe, Zone 1 and Zone 2
  • Available with touchpad mouse control
  • Can be directly mountable and hinged on HMI or seperately on a desk
  • Choice of languages



  • Always includes a touch pad
  • Sits on a desk or mounting options available for floor stands
ATEX/UKEX KEYBOARD :
Typical ex Code II 2 G Ex ia IIC T4
Degree of protection IP66
Use within Zone 1 & 2 and Ex area
Technical details Rafi short stroke keyboard No of keystrokes 1 Mio operations using a force of 2.55 to 0.65 N Travel 0, 3 0, 2-0, 1 mm
Keyboard type MF2 (102 keys) keyboard with integrated Touch-Pad (2 keys)
Interface PC AT, PS/2 compatible
Cable length 1.50m
Language versions English US-layout, Norwegian German and French, other languages available on request
Ambient temperature -30°C to +60°C (-22°F to +140°F)
Storage temperature -40°C to +70°C (-40°F to +158°F)
eNTITY PARAMETERS Ui = 5.7V
Ii = 350mA
Pi = 1.2W
Ci = 59.4 uF
Li = 0

This is a typical Specification; if you have other requirements please Contact Us
