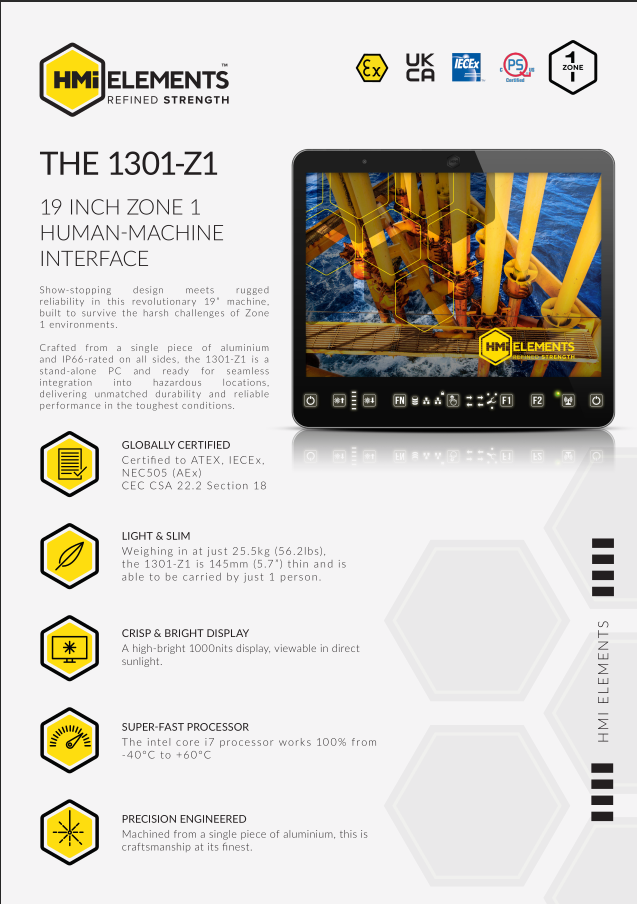

Meet the 1301-Z1, a slim-line ATEX, UKEX, IECEx, AEx Zone 1 HMI

The latest addition to HMI Elements’s range of hazardous area HMIs is a slim and lightweight PC, with a super high-bright 19”, 1000 nit multi-touch glove-friendly touchscreen. As you would expect from HMI Elements it comes certified for use in Class I Zone 1 areas with Ethernet and WiFi as standard and a choice of operating voltages.


  • Glove-friendly Projective Capacitive Touchscreen (PCT) with multi-touch
  • 19" 1000 nit display
  • Wide -40°C to +60°C (-40°F to +140°F) operating temperature range as standard
  • Thin: 5" profile. Lightweight: 25.2kg / 55.55lbs  (excluding connectors, cables and accessories)

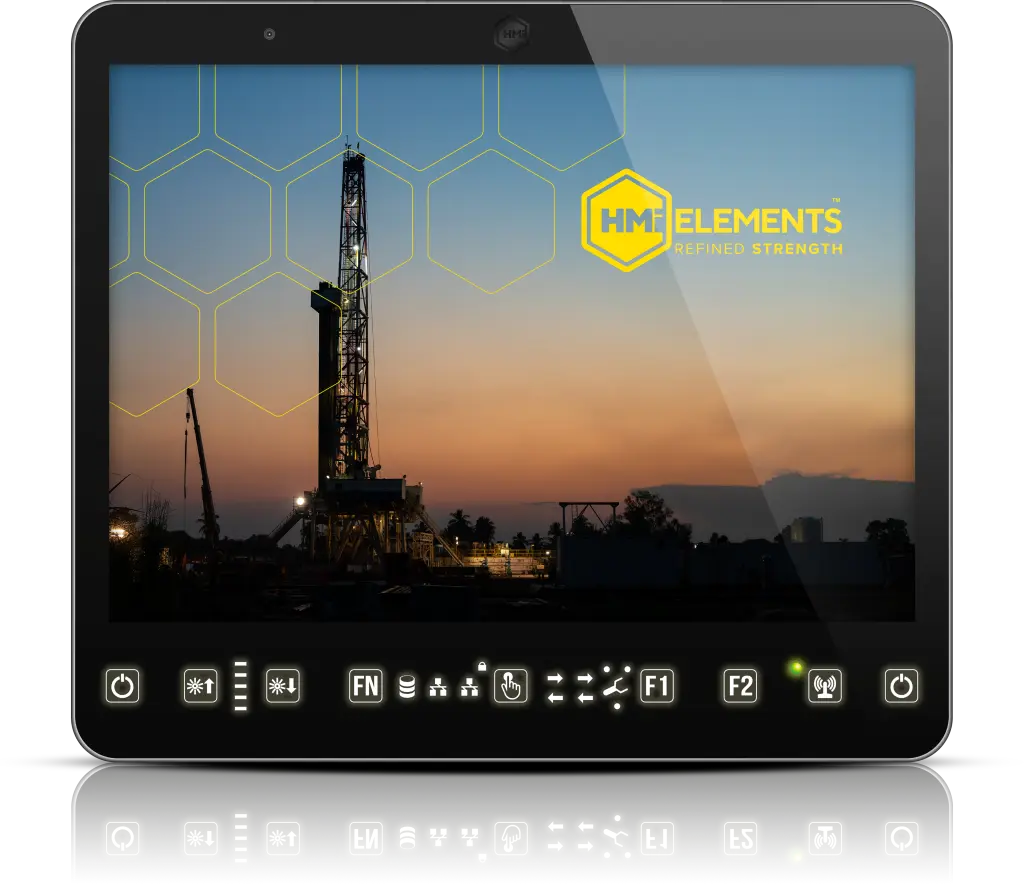

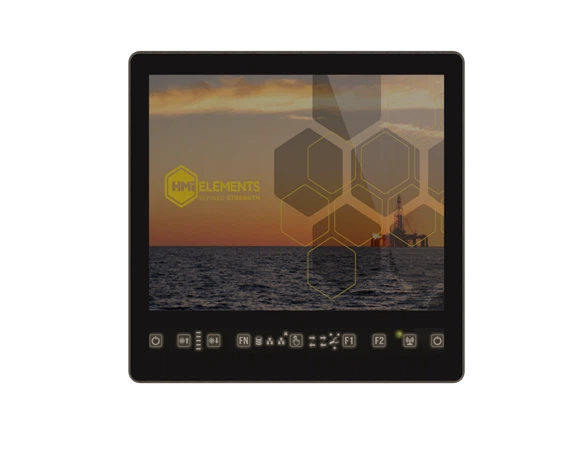

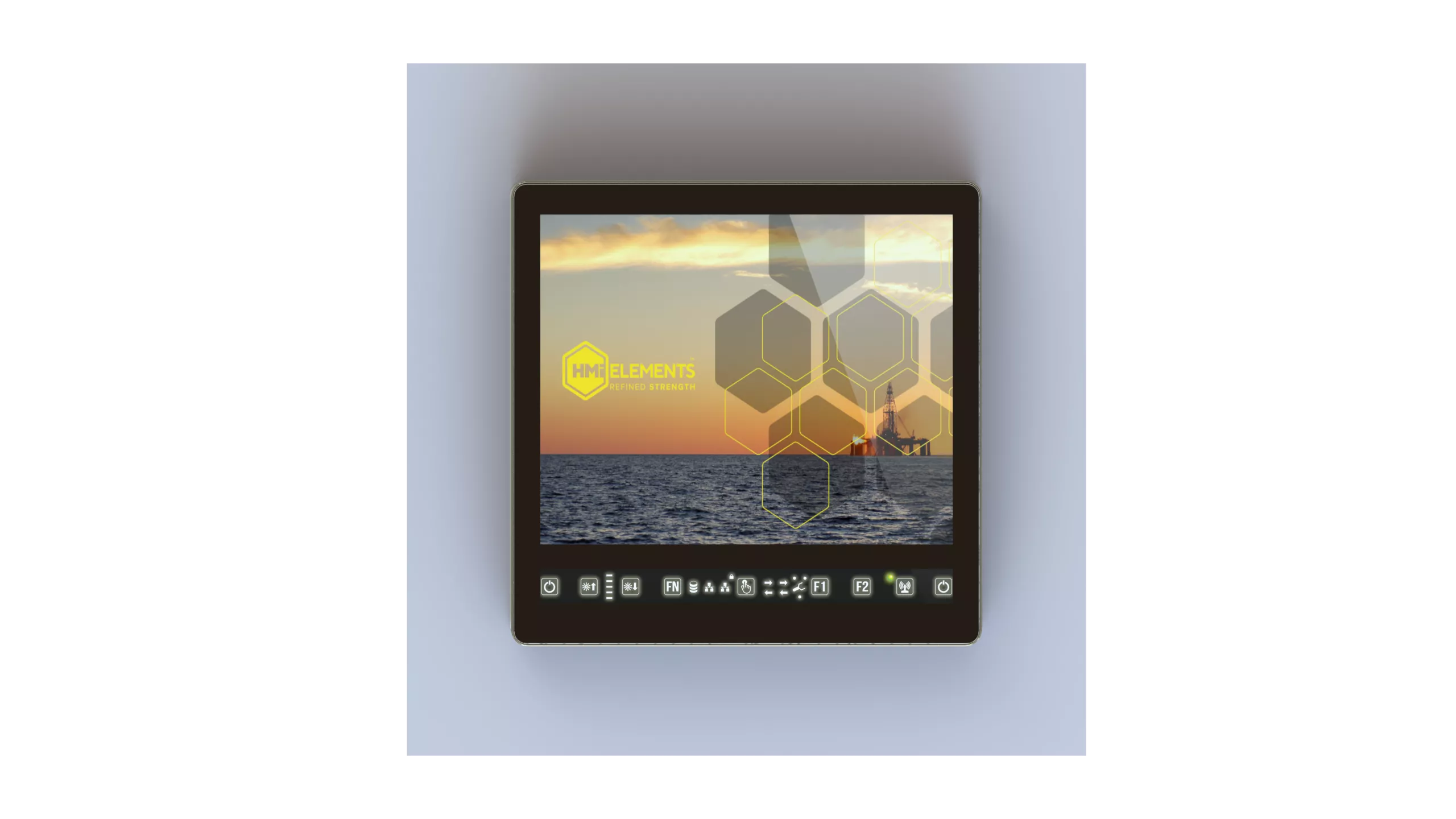

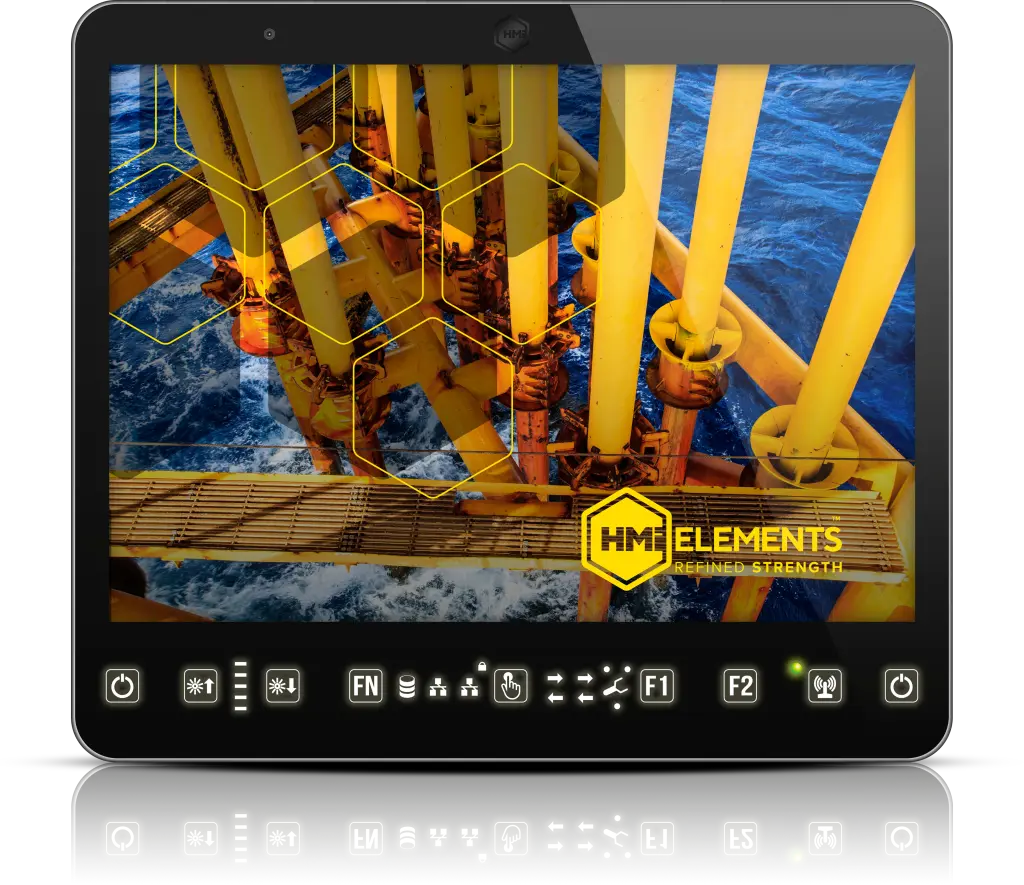

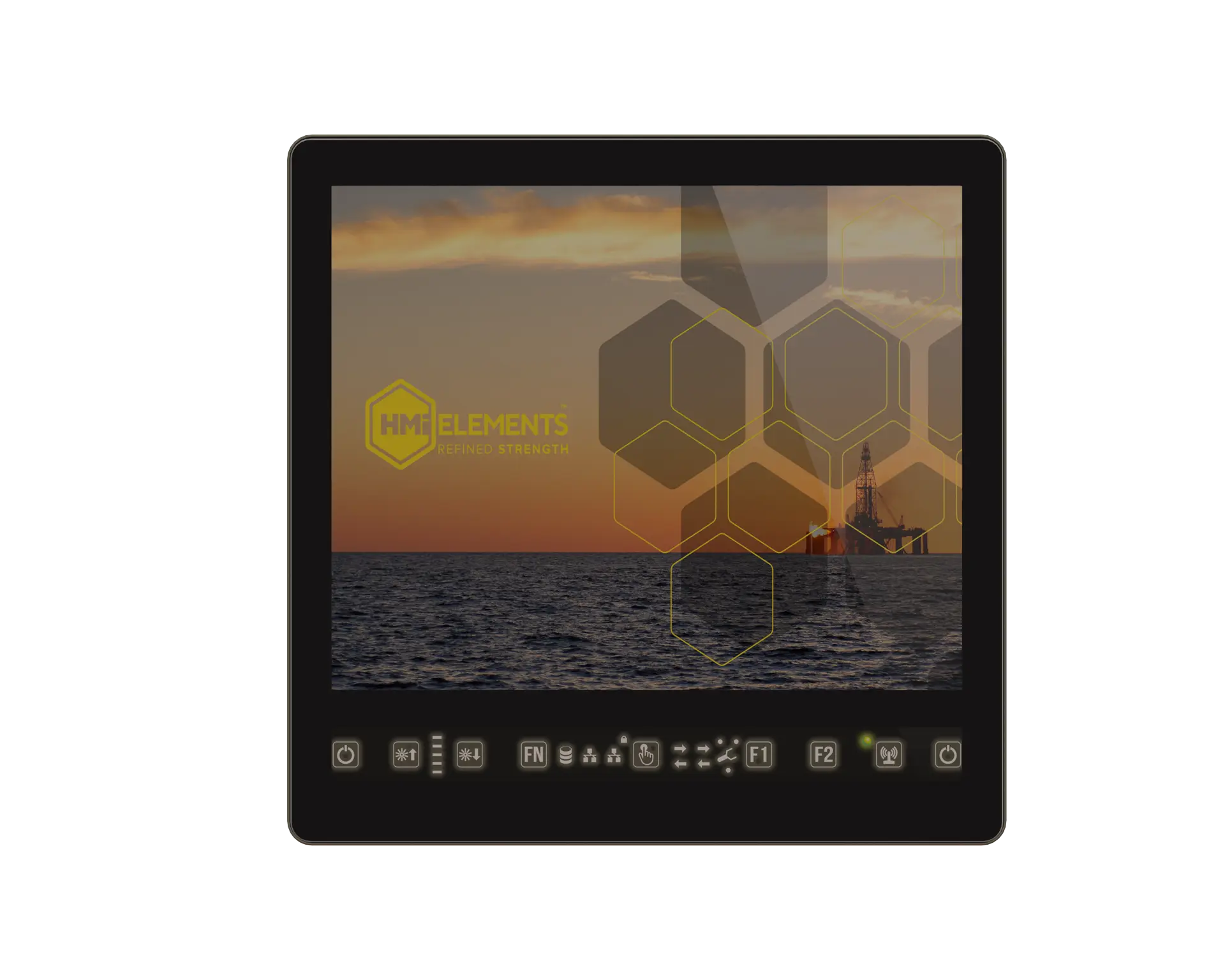

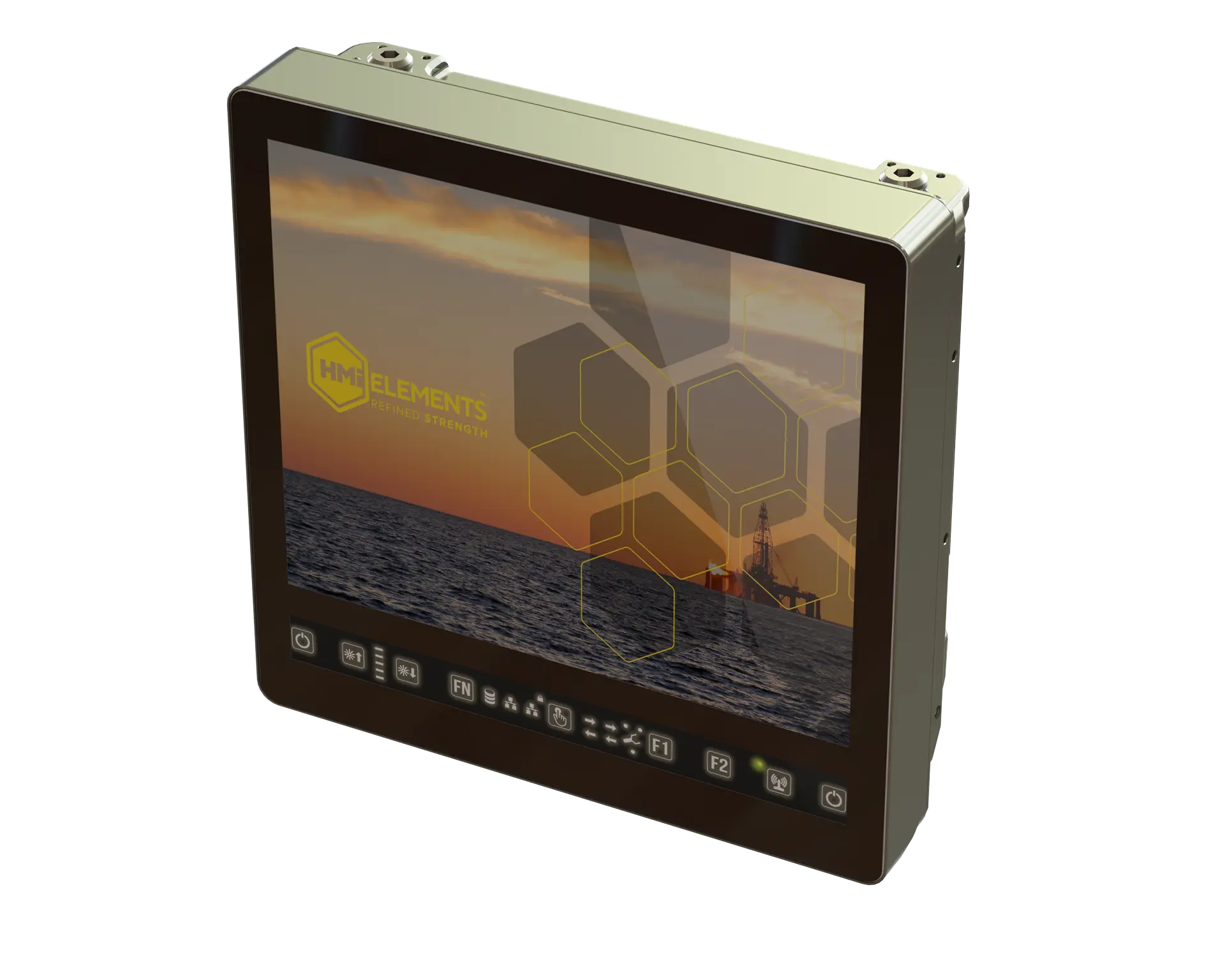

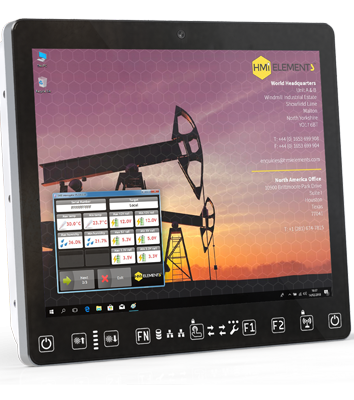

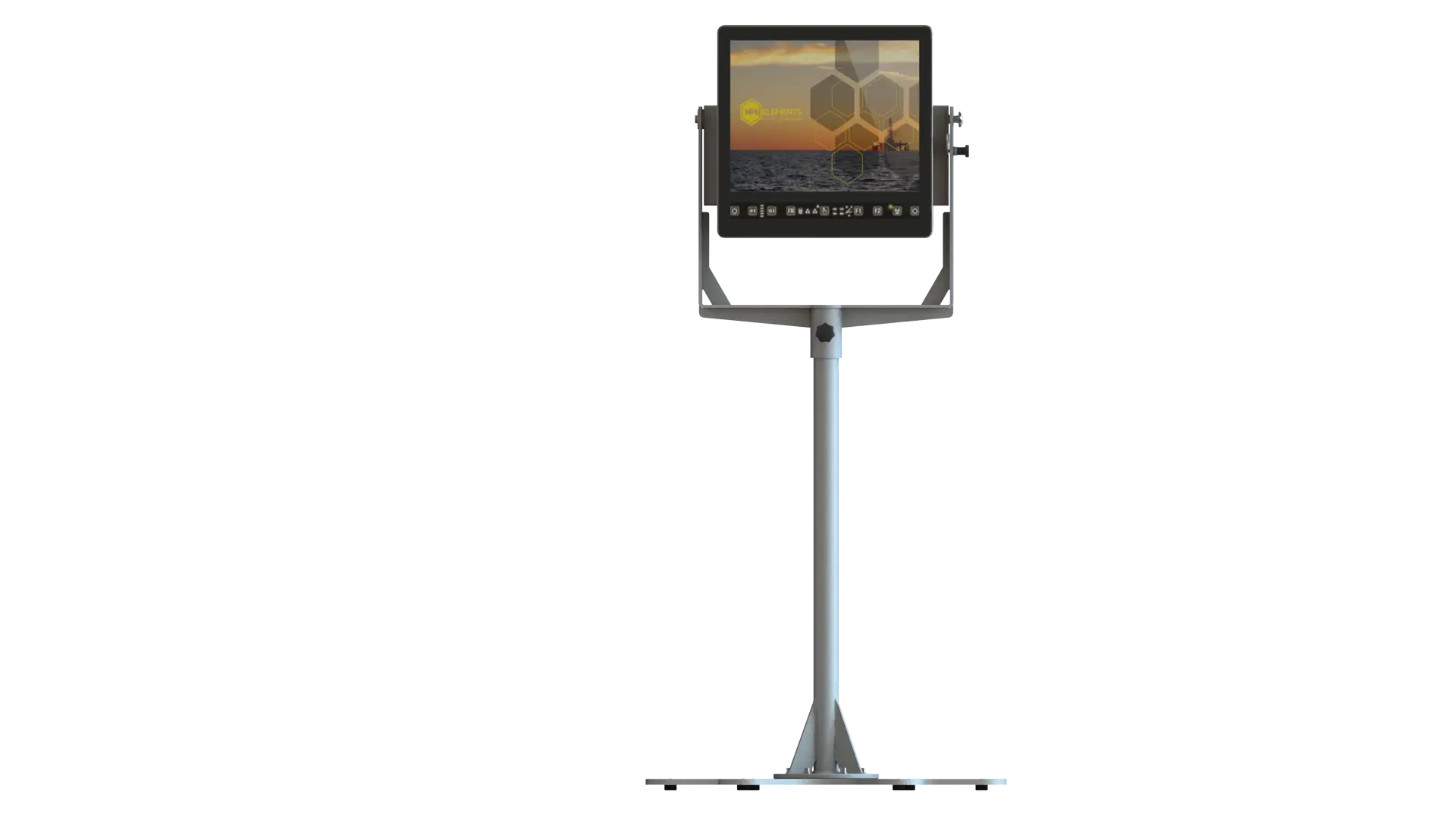

  • VESA, yoke and panel mount options
  • Choice of operating voltages
  • Remote telemetry
  • Built-in diagnostics
  • Clean screen mode
  • Ethernet 10/100/1000 Mbit/s and Wi-Fi as standard
  • Ingress protected to IP66/NEMA 4X
  • Shock in accordance with BS EN60068-2-27:2009
  • Vibration in accordance with BS EN60068-2-6:2008
  • Windows 10 Enterprise LTSB, Windows 10 Enterprise LTSC, Windows 7 Professional Operating System
  • Designed for field maintainability
1301-Z1 :
PRODUCT SUPPLY Auto ranging, 100-240VAC, 50-60 Hz, 1.3A
Ex eb mb op is [Ib] IIC T4 Gb
Ex tb IIC T90°C
Ex eb mb op is [Ib] IIC T4 Gb
Ex tb IIC T90°C
Class 1, Zone 1, AEx eb db mb op is [ib] IIC T4 Gb
Zone 21, AEx tb IIC T90°C Db
Ex db ib mb IIC T4 Gb
Ex tb IIC T90°C Db
DISPLAY SIZE 19" aspect ratio 5:4
DISPLAY TYPE Sunlight readable, High Bright 1000 Nit Antiglare Finish
RESOLUTION SXGA; 1280 x 1024, wide viewing angle,  24 bit colour
PROCESSOR OPTIONS Intel Core i7 6th Gen Skylake 6600U OR Intel Core i7 7th Gen Kabylake 7600U
MEMORY OPTIONS 8GB (2 x 4), 16GB(2 x 8), 32GB(2 x 16) DDR4 - 2133Mhz
OPERATING SYSTEM Windows 10 Enterprise LTSB
Windows 10 Enterprise LTSC
Windows 7 Professional 64 bit (6600U only)
OPERATING TEMPERATURE -40°C to +60°C (-40°F to +140°F)
-40°C to +55°C ( -40°F to +131°F) with Media converter fitted
STORAGE TEMP -40°C to +85°C (-40°F to +185°F)
WEIGHT 25.2kg (55.55lbs) excluding connectors, cables and accessories
SIZE Metric: 476mm x 427mm x 95mm ( W x H x D)
Imperial : 18.75" x 16.81" x 3.74" (W x H x D)

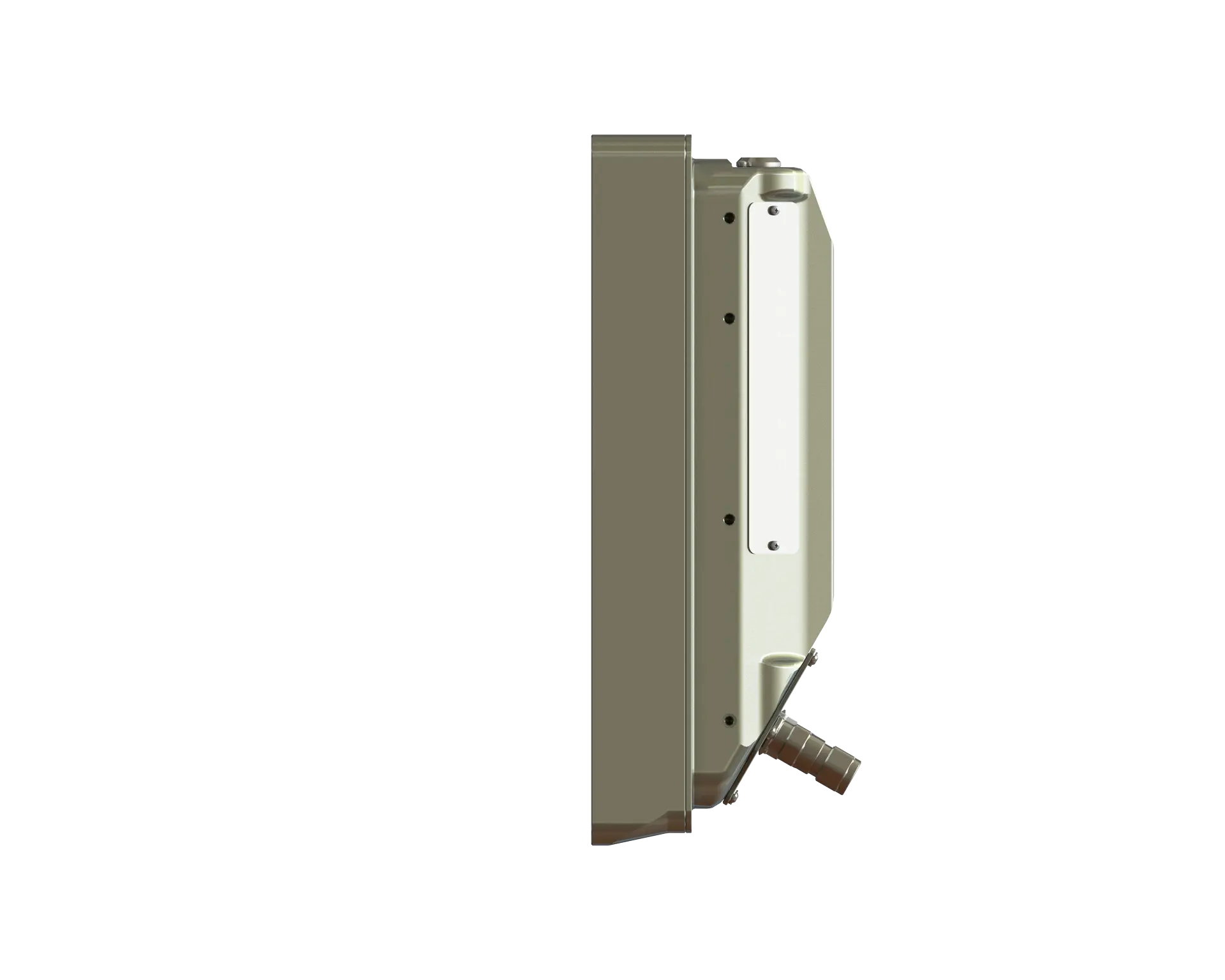

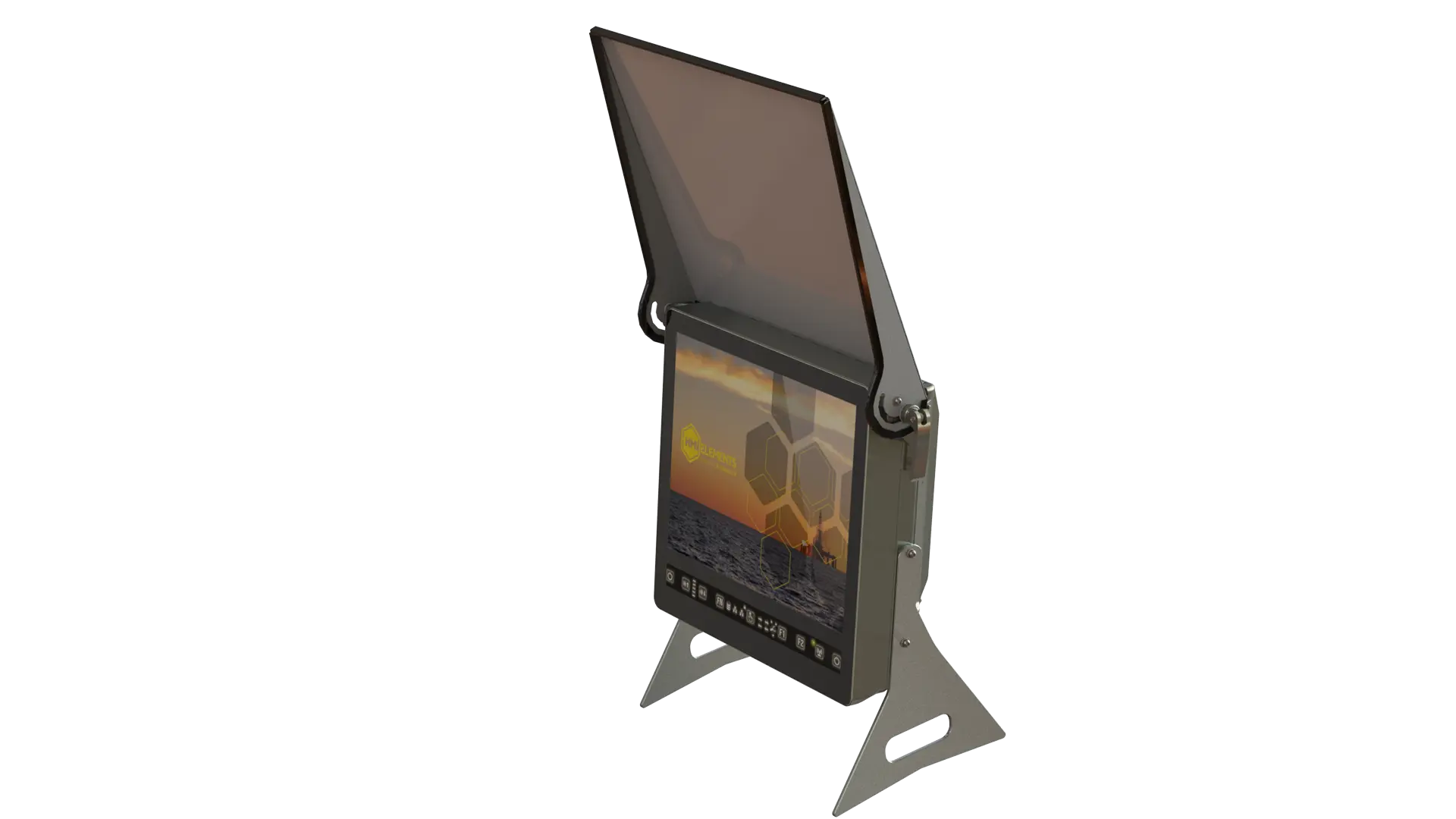

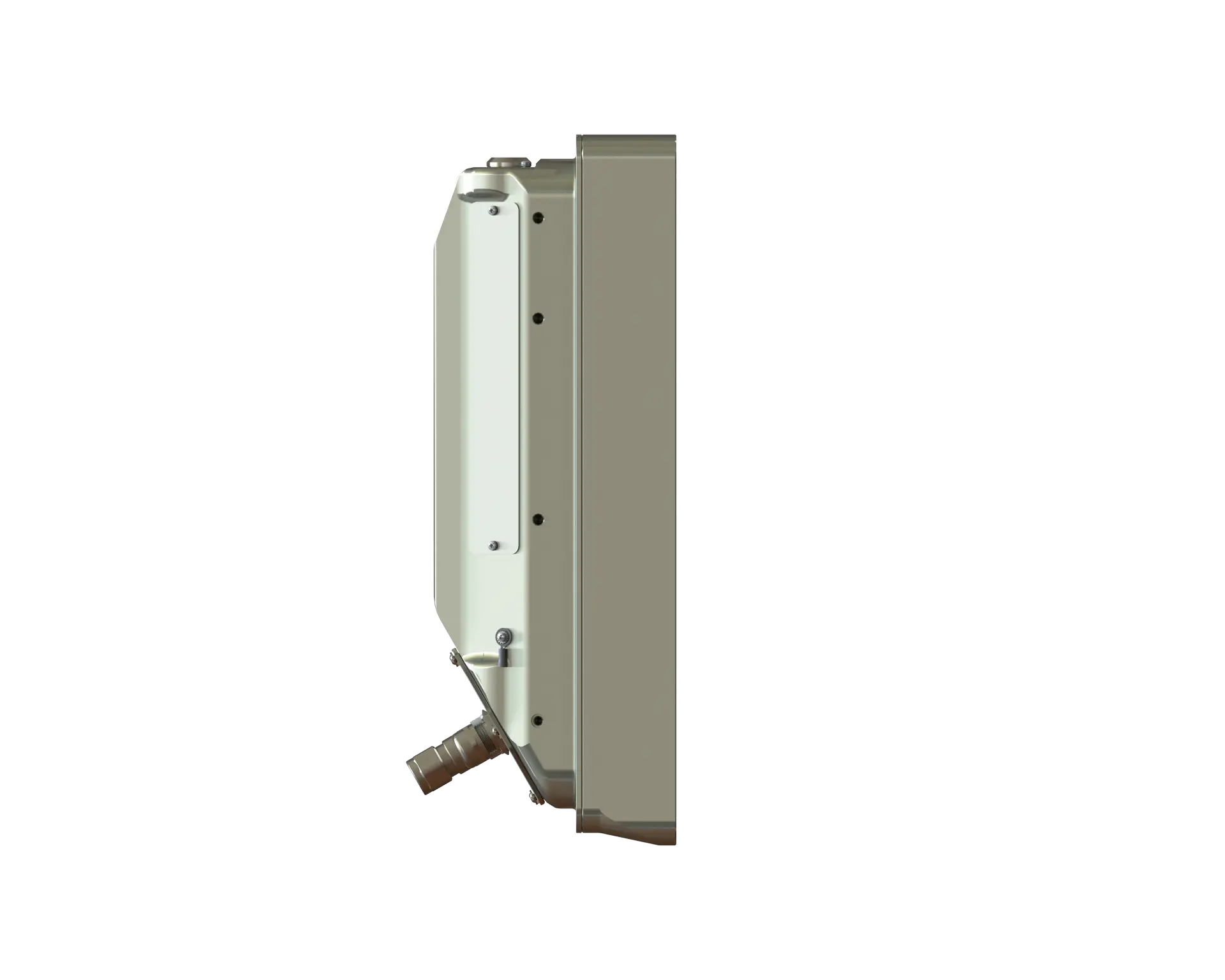

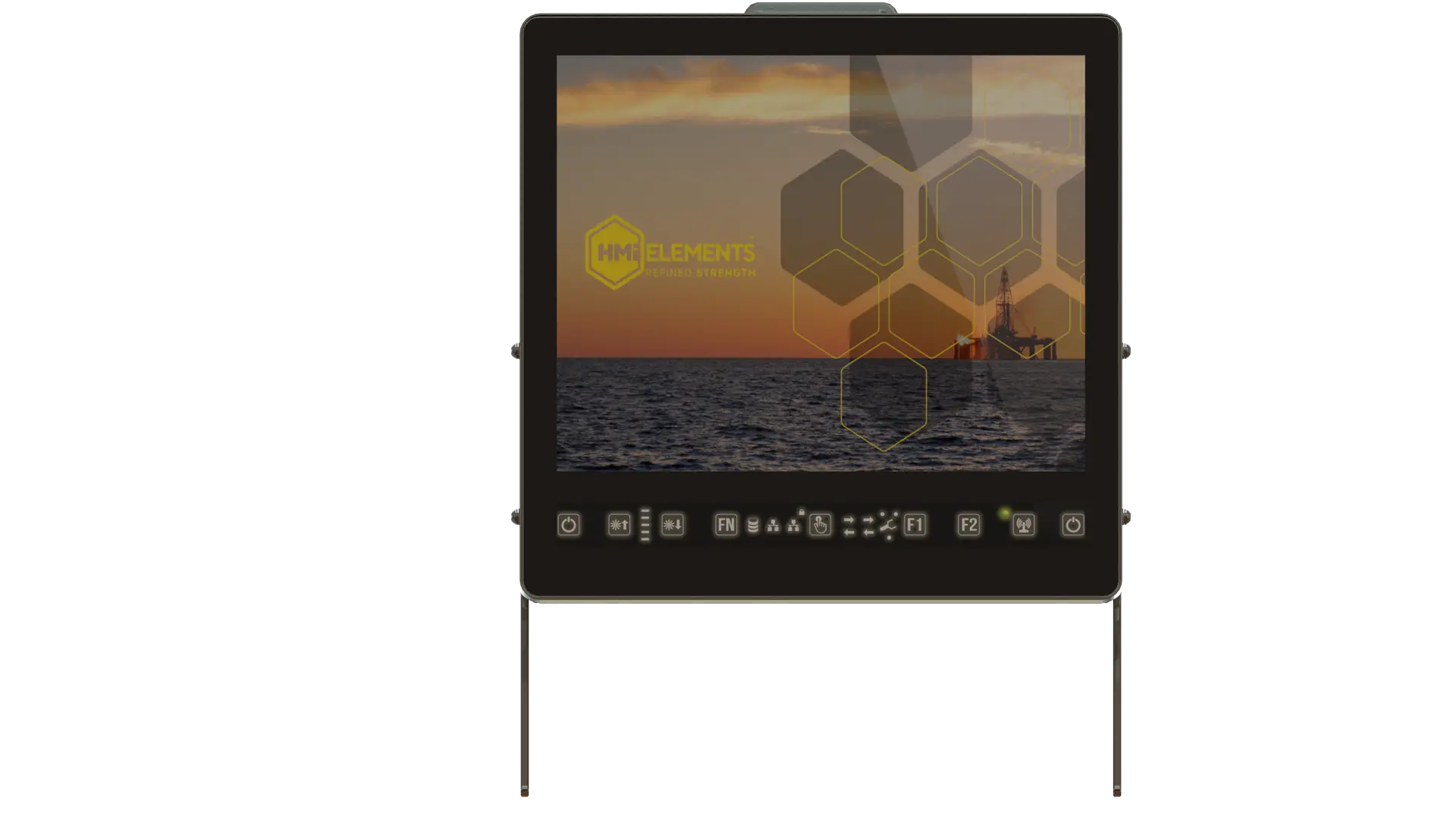

MOUNTING OPTIONS VESA, Yoke, Desk Stand, Panel

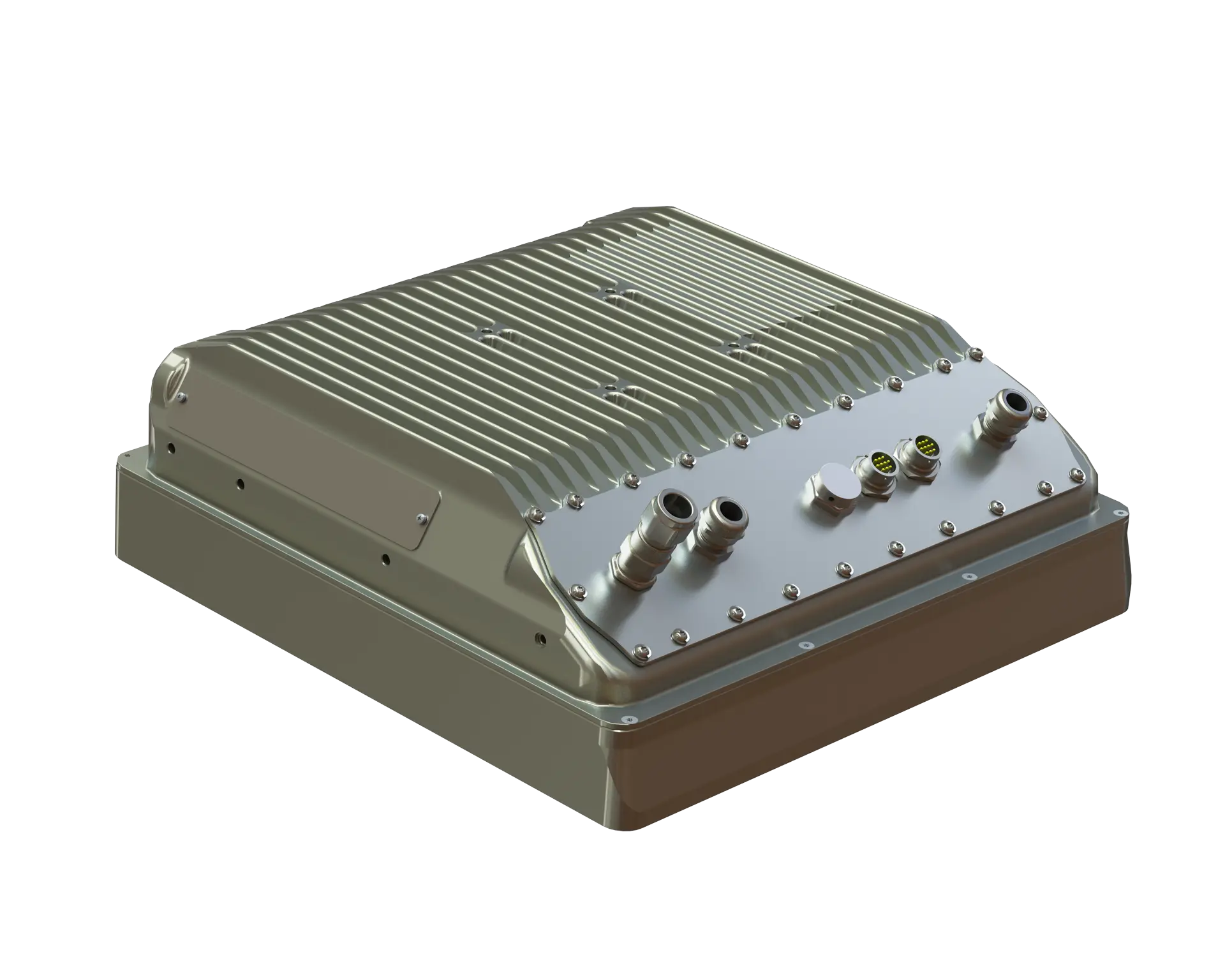

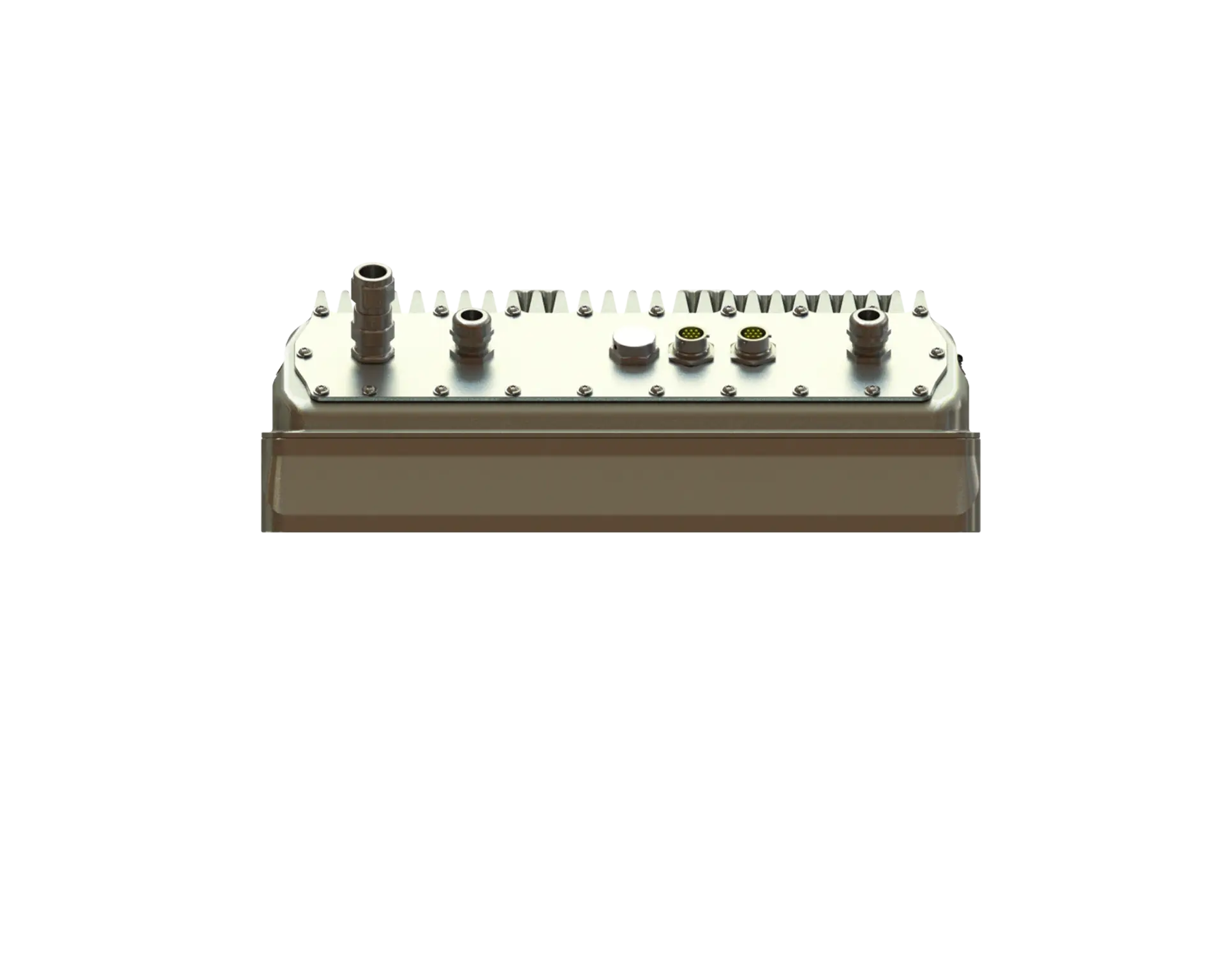

INTERFACES Standard: USB, Ethernet
Optional: RS232, RS485, IS Horn, Wi-Fi, Fibre
COMMUNICATION OPTIONS Wireless (IS): Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4G hz & 5GHz
      Xbee 802.15.4
      Microhard IPn920 - 900Mhz
Fibre (OP IS): 1310nm, 850nm
Remote interogation and on board Diagnostics

This is a typical Specification; if you have other requirements please Contact Us

1301-Z1 Product Video
