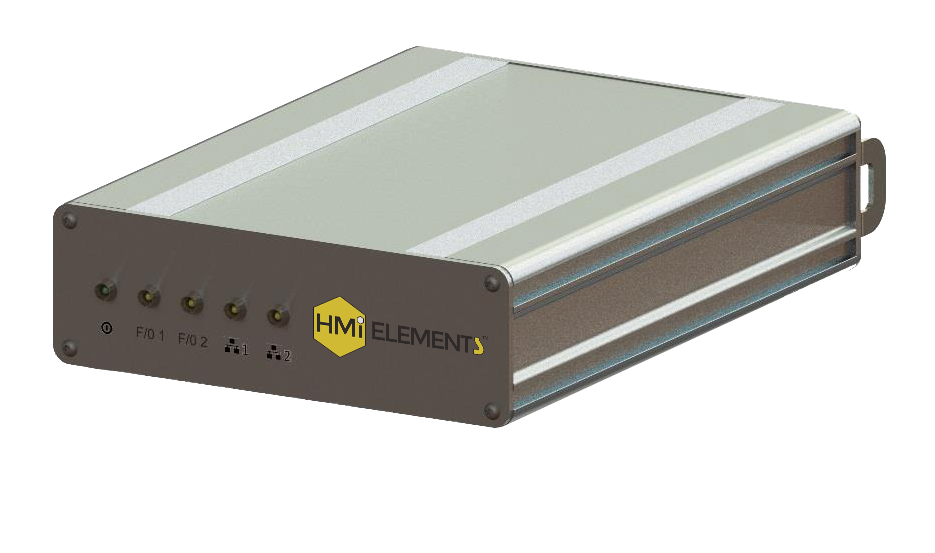

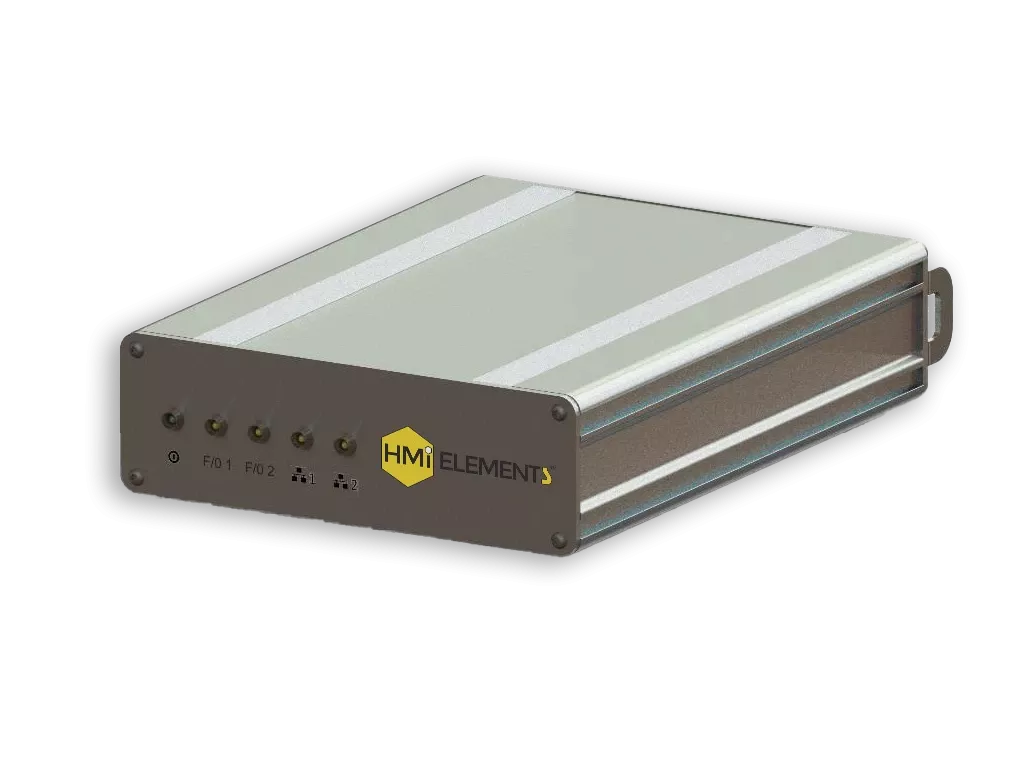

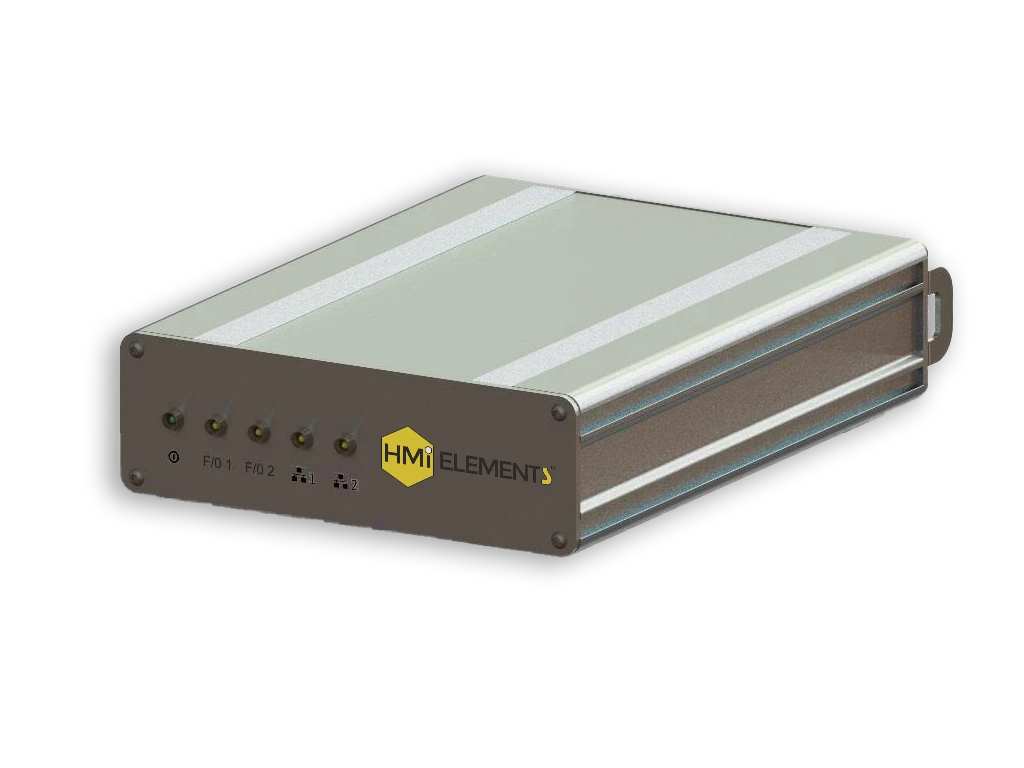

1700-SA

Taking Communications into the Hazardous Area

The 1700-Sa is intended for use in Safe Areas. The two fiber-optic ports are designated ‘Ex op is’ – meaning the transmitted optical power is deemed inherently safe according to IEC 60079-28:2015.

Functions as an un-managed Ethernet switch with both fiber and copper ports inter-connected internally. No configuration is necessary.

  • The latest addition to HMI Elements’s range of Safe Area HMI Accessories
  • Light weight at only 4.4lb and with a depth of only 9.1” it brings elegance to the Safe Area
  • Two 'Ex op is' fiber ports - inherently safe to IEC 60079-28:2015
1700-SA

Product Specification

1700-Sa :
Product Type Safe-Area op-is Media Converter
Model No 1700-Sa
Typical Ex Code II (2) G [Ex op is] IIC Gb
II (2) G [Ex op is] IIC Gb
Class I, Zone 1 [Ex ib] IIC Gb
Class I, Zone 1 [AEx op is] IIC

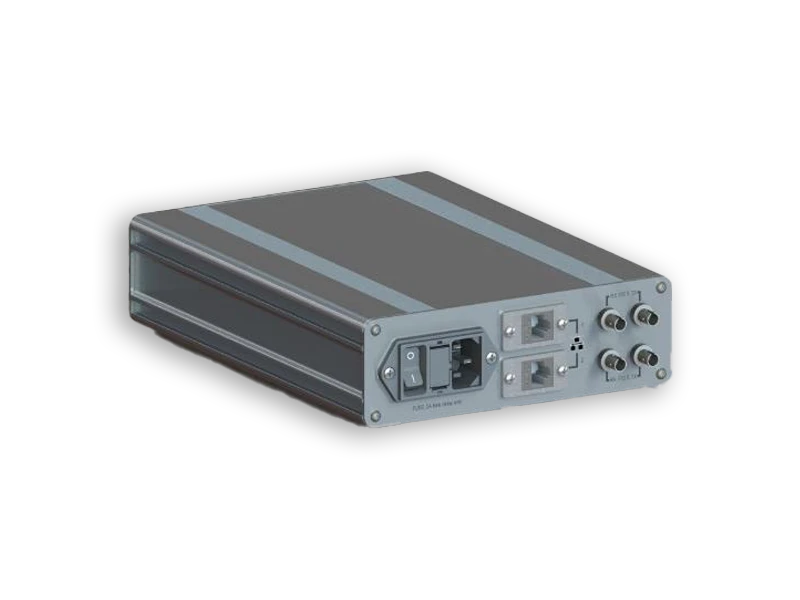

Power AC: 100 to 240VAC, 50 to 60 Hz, via standard IEC C14 socket. (UK and US leads supplied)
Copper Ethernet Ports LAN1 and LAN2 ports:
10/100/1000 Auto-negotiation
Full/half-duplex Auto-detect

Connections:
Two RJ45 sockets, Gigabit Ethernet compliant

Standards:
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3x Flow Control

Transmission Media:
10BaseT Cat.3,4,5 UTP/STP
100BaseTX Cat.5 UTP/STP
1000BaseT Cat.5E UTP/STP
Fiber Ports Standard:
IEEE 802.3u Fast Ethernet

Fiber Type:
Multimode / Dual Fiber (for optimal link budget 62.5/125 micron fiber is recommended)

Connections:
Two twin ST (IEC 61754-2)sockets

Wavelength:
1310nm

Link Budget:
11dB
Operating Temperature 0°C to +40°C (32°F to +104°F)
Storage Temp 0°C to +60°C (32°F to +140°F)
Humidity 10 to 90 % non-condensing
Weight 4.4Ibs / 2kg
Dimensions 170(W) x 54(H) x 230(D)mm; 6.7 x 2.1 x 9.1 inches
Mounting Options Desktop mounting with rubber feet on base
