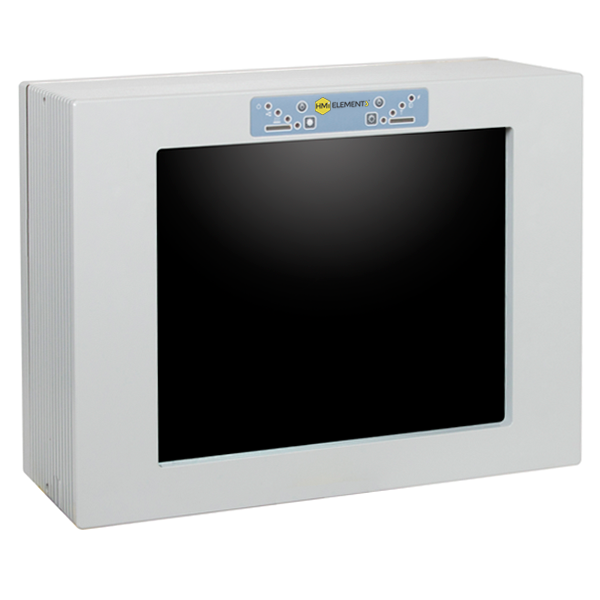

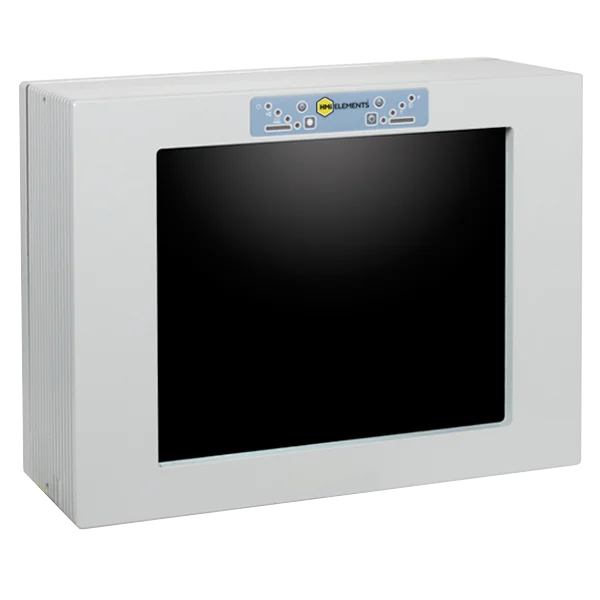

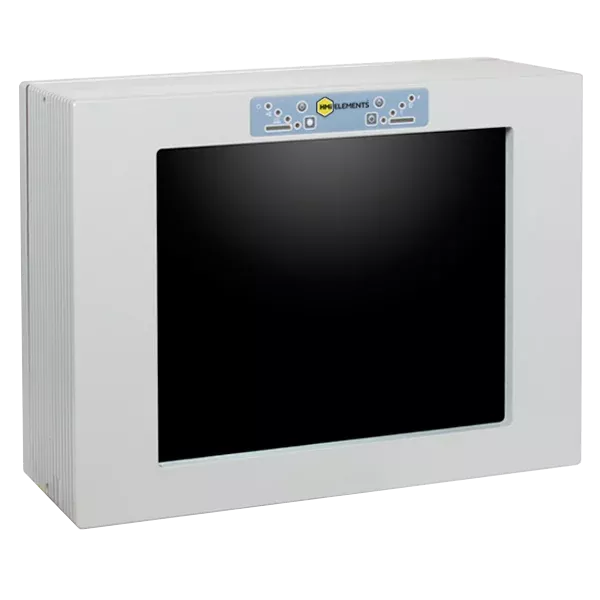

800-Z1 / 900-Z1
HMI Elements industrial terminals remotely control computers located in the safe area.
The range consists of the 800-Z1 and 900-Z1, with no requirement for purging. All models are ATEX certified for use in hazardous areas; Zone 1 and Zone 2.
- Integrated keyboard/mouse and/or external keyboard
- Simple to install
- Extended temperature range available from -20°C
- KVM extension over CAT5 or Fibre available (10km over SM Fibre or up to 300m using CAT5)
- Ex d - ease of field maintenance (with appropriate training)
- Customisable bulkhead connection configuration
- Support for optional bulkhead mounted Ex e junction boxes
- Interface and keyboard options available
Product Specification
| REMOTE TERMINALS: | 800-Z1 | 900-Z1 |
|---|---|---|
| Typical Ex Code | II 2 G Ex d ib [ib] IIB Gb T4 | |
| Display Size | 15" | 19" |
| Display Type | LCD | |
| Resolution | XGA 1024x768 | SXGA 1280x1024 |
| Comms Options | CAT5 cable / Fibre Optic | |
| Keyboard / Mouse / Other | Integrated membrane mouse. Integrated keypads. External Exi PS/2 interface | |
| Operating Temp | 0°C to +45°C (+32°F to +113°F) | (optionally) -20°C to +45°C (-4°F to +113°F) |
| Storage Temp | -25°C to +55°C (-13°F to +131°F) | |
| Weight | 32kg / 68lbs | 44kg / 88lbs |
| Dimensions | 465 x 337 x 160 mm | 521 x 390 x 165 mm |
This is a typical Specification; if you have other requirements please Contact Us
