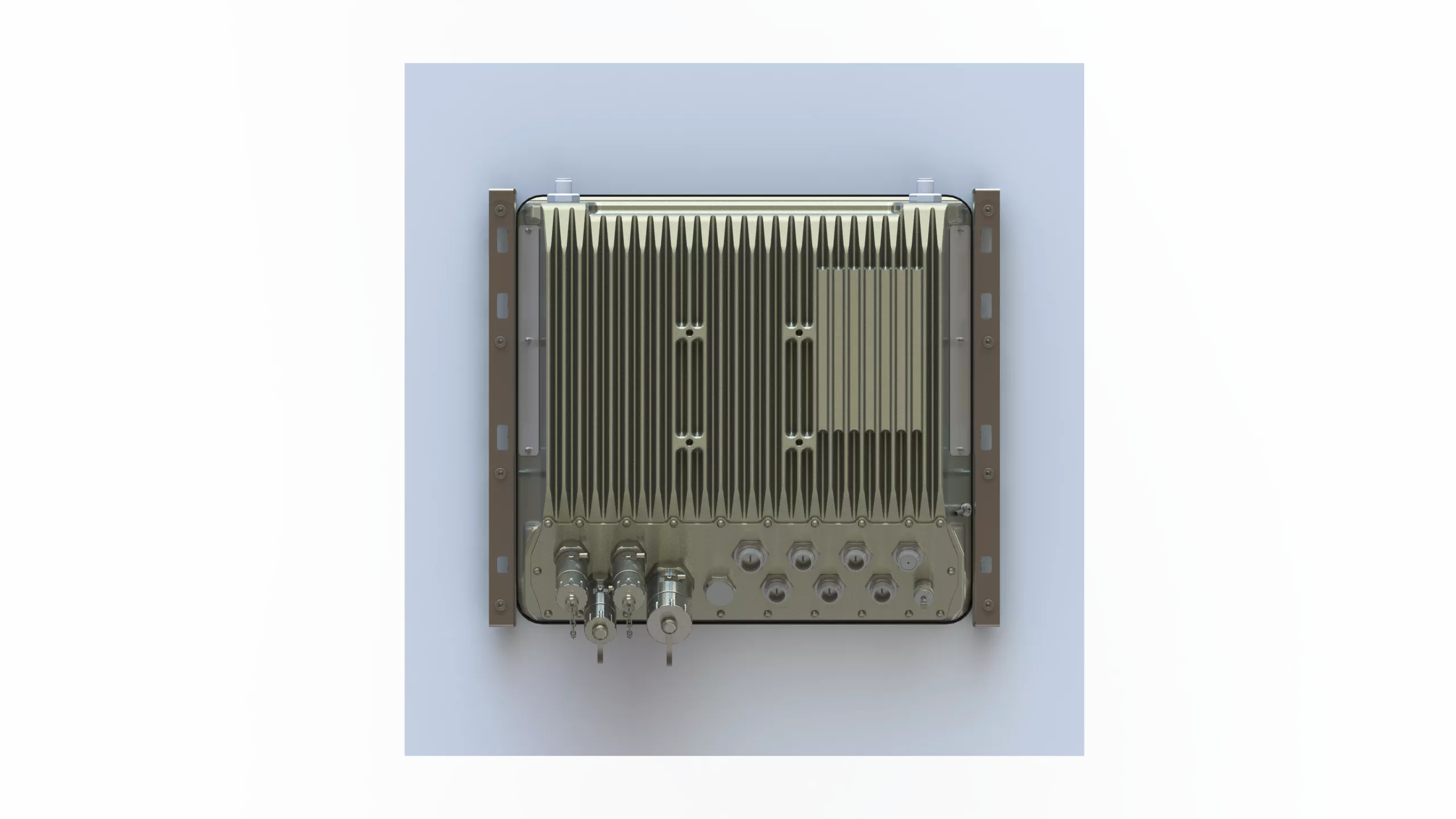

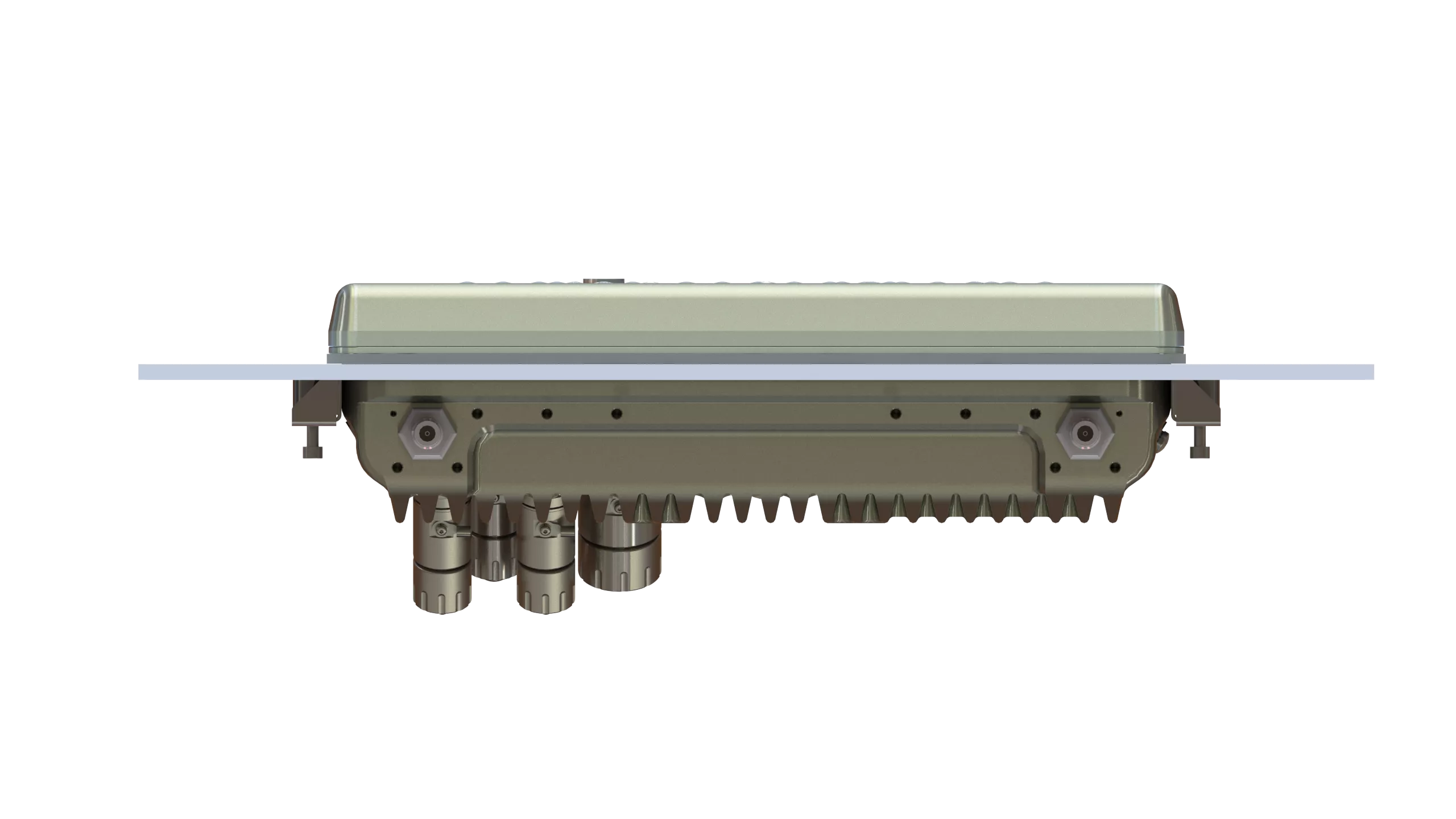

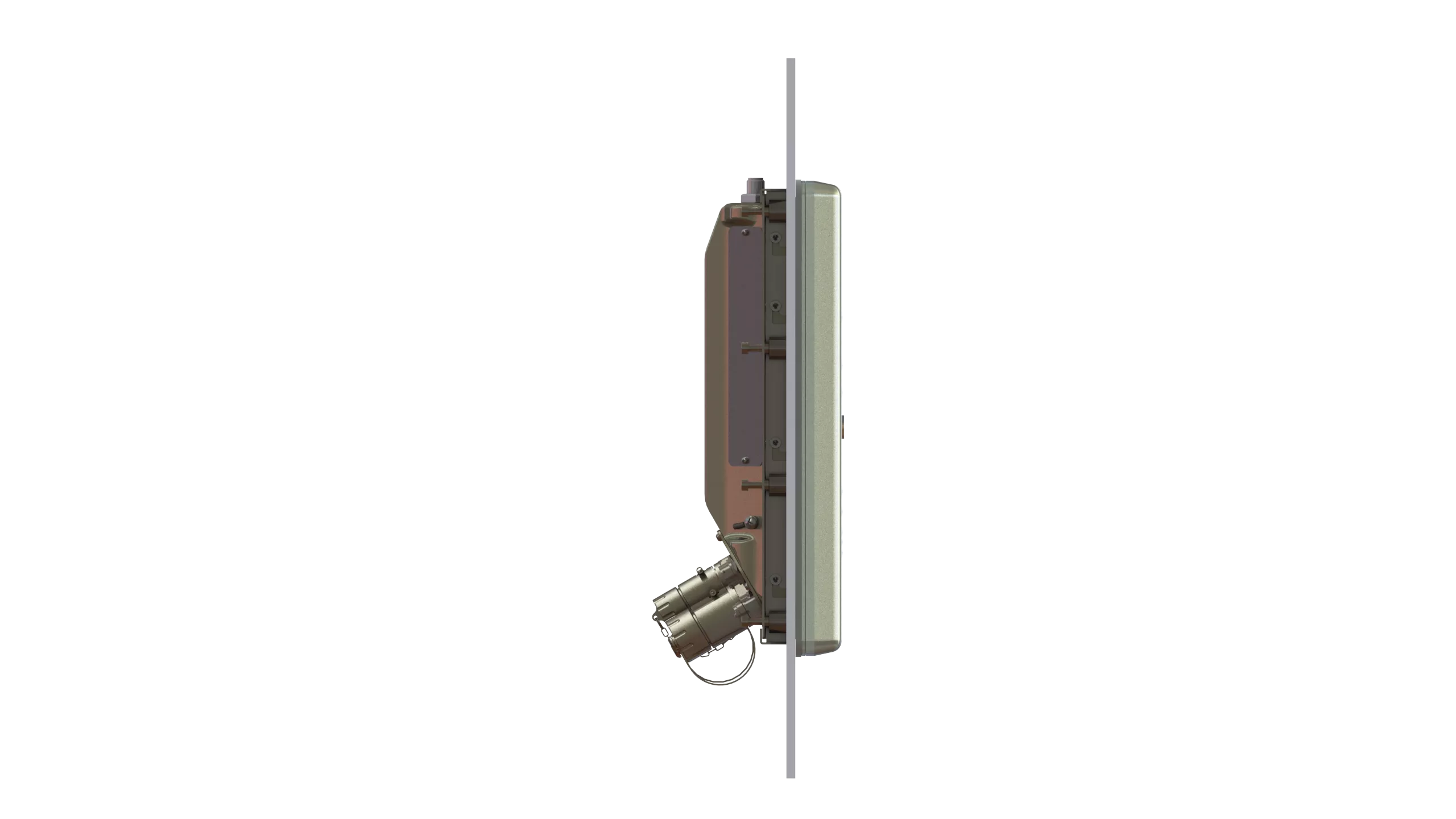

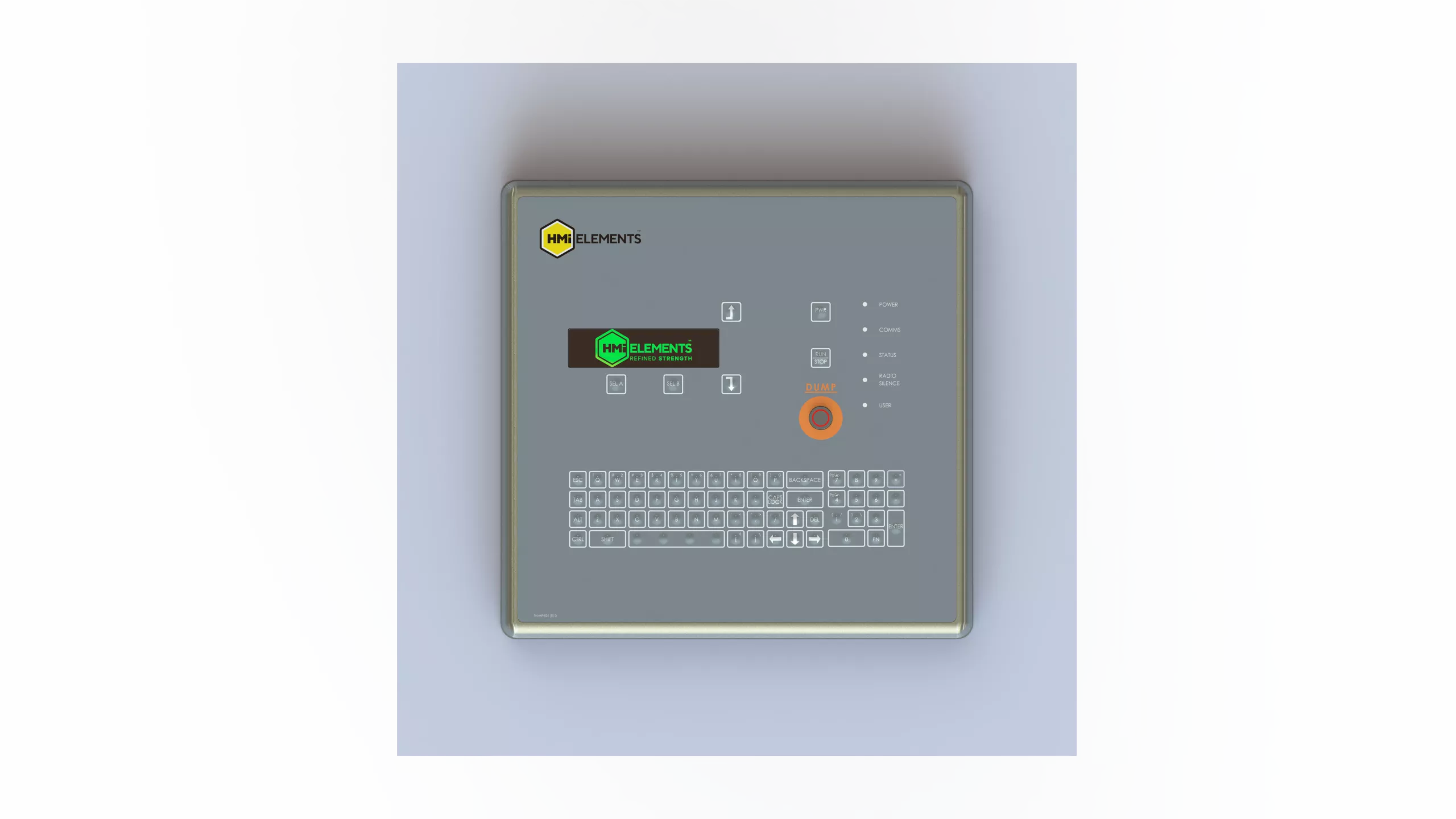

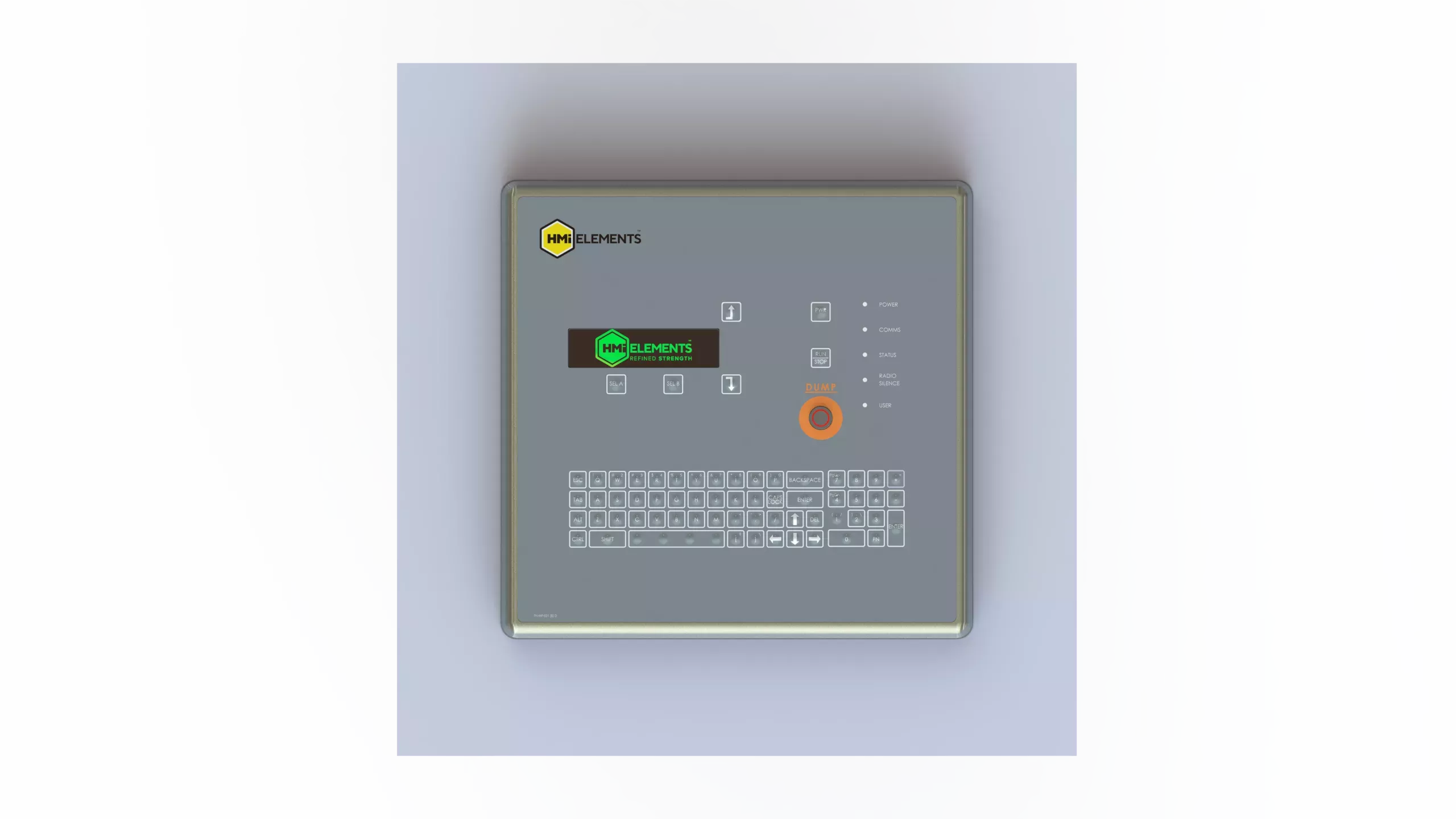

Panel Mount
Rugged flush-mount integration for cabinets and control panels
Key Features
- Industrial-strength mounting engineered for 15kg (33lbs)
- Dual-bracket system with left and right mounting assemblies for balanced support
- Weather-tight IP sealing with precision gasket and compression system
- Certified installation compliant with EN 60079-14 and IEC 60079-17 standards
- Adjustable tightening bolts for secure panel compression and professional finish
- Pre-assembled components for streamlined installation process
Technical Specifications
- Maximum load capacity: 15kg (33lbs)
- Dual mounting bracket system (LHS/RHS)
- 8-point fastening system for maximum security
- Requires vertical landscape orientation (±30° tolerance)
Perfect For
Large control rooms, process monitoring centers, marine bridge consoles, industrial command stations, and critical applications requiring secure mounting of heavy-duty ATEX Zone 1 certified DAQs.
Complete Kit Includes
- Mounting bracket assembly
- IP-rated panel gasket with precision seal
- Pre-fitted rubber buffers and adjustment components
- Installation guide with certification requirements
Professional heavy-duty panel integration with IP-rated environmental protection for mission-critical Zone 1 applications.
